Coolant Temperature Sensor / Switch HVAC: Service and Repair
REPLACEMENT PROCEDURE:

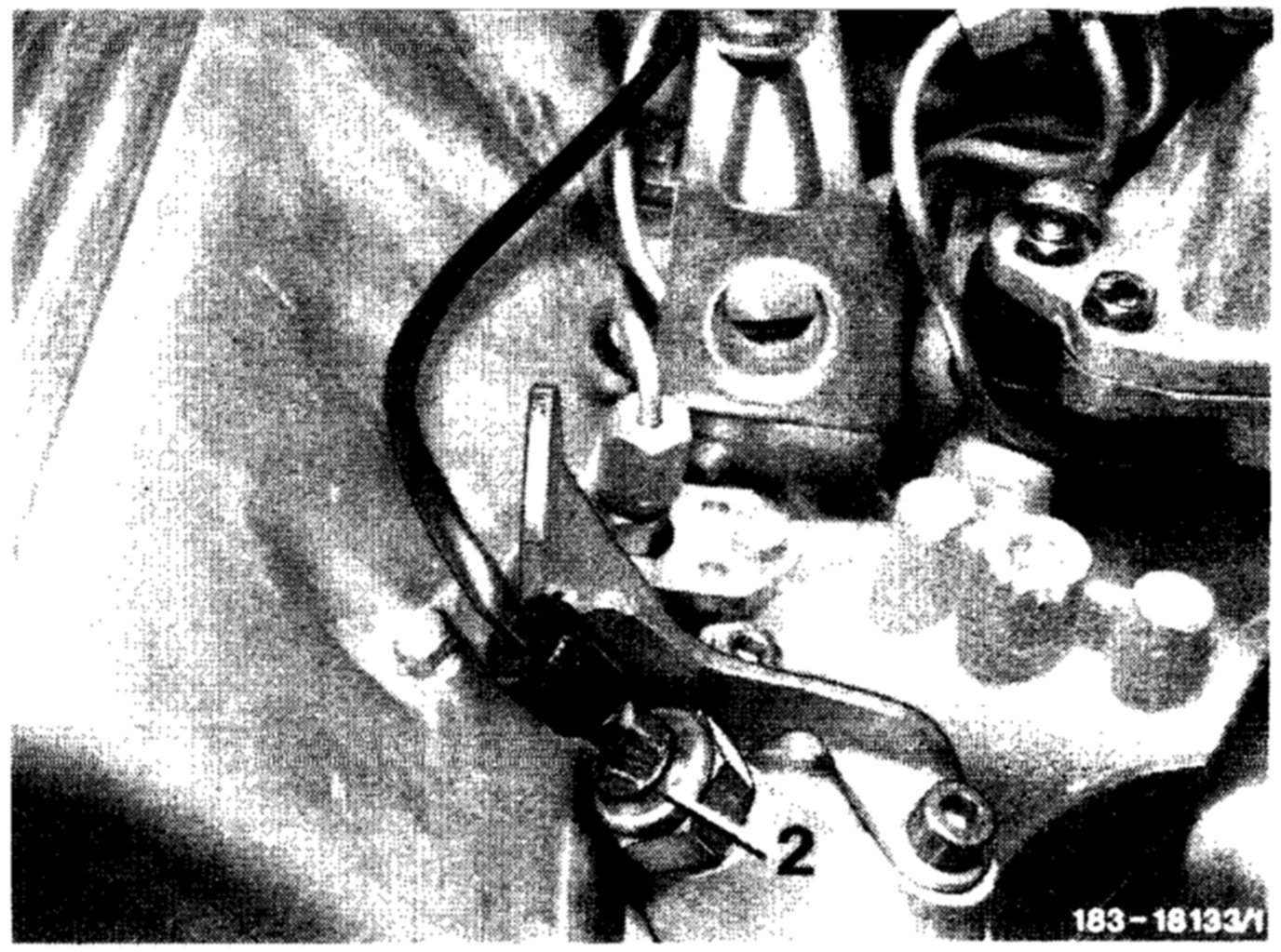

Temperature Switch - Cold Engine Lockout (2):
1.
Open radiator cap.
2.
Pull single-pole coupler from switch (2) and unscrew switch.
3.
For installation proceed vice versa.
4.
Check cooling system for leaks.
5.
Check automatic climate control for function.
