Heater Core Temperature Sensor / Switch: Description and Operation
Temperature Sensor (6) For Heat Exchanger:
Temperature Sensor (6) For Heat Exchanger:

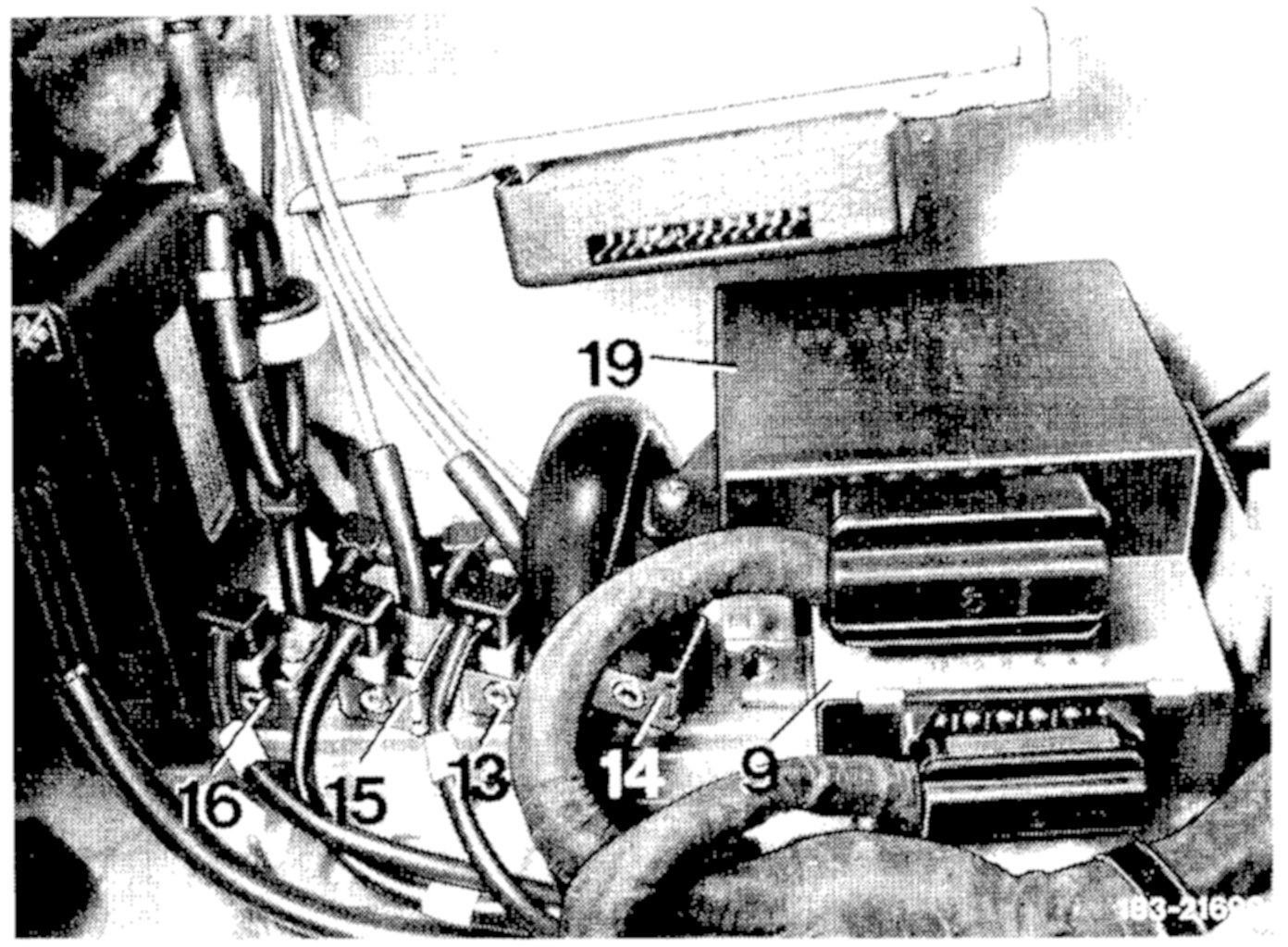

Electronic Switching Units (9) - Temp & (19) - Blower:
The temperature sensor (6) for heat exchanger is located in air duct center and transmits its resistance to the electronic switching unit (9) for temperature control.
