Overvoltage Protection Relay: Locations



Fuse and Relay Block Identification and Location




The fuse/relay box is located behind the passenger side kick panel.

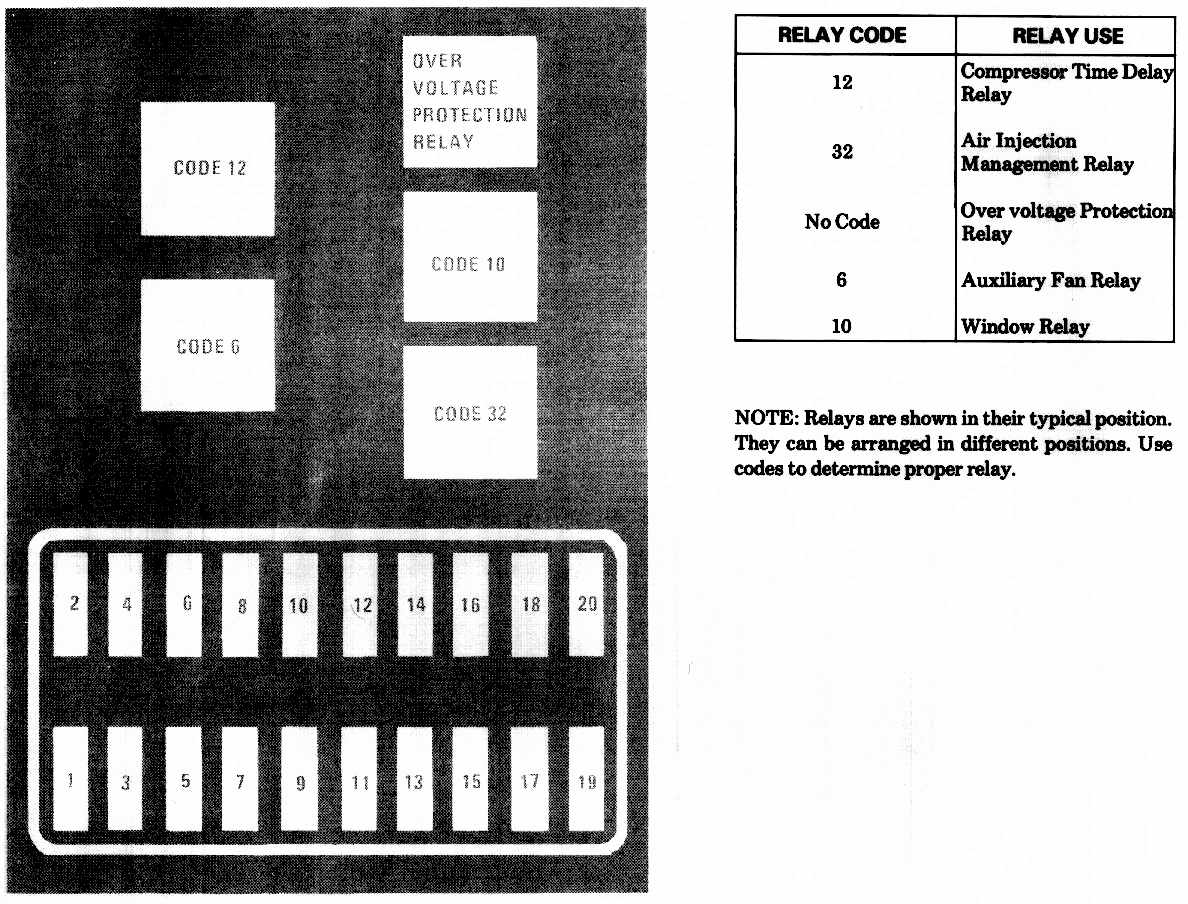

Fuse & Relay Box Layout / Relay Identification:

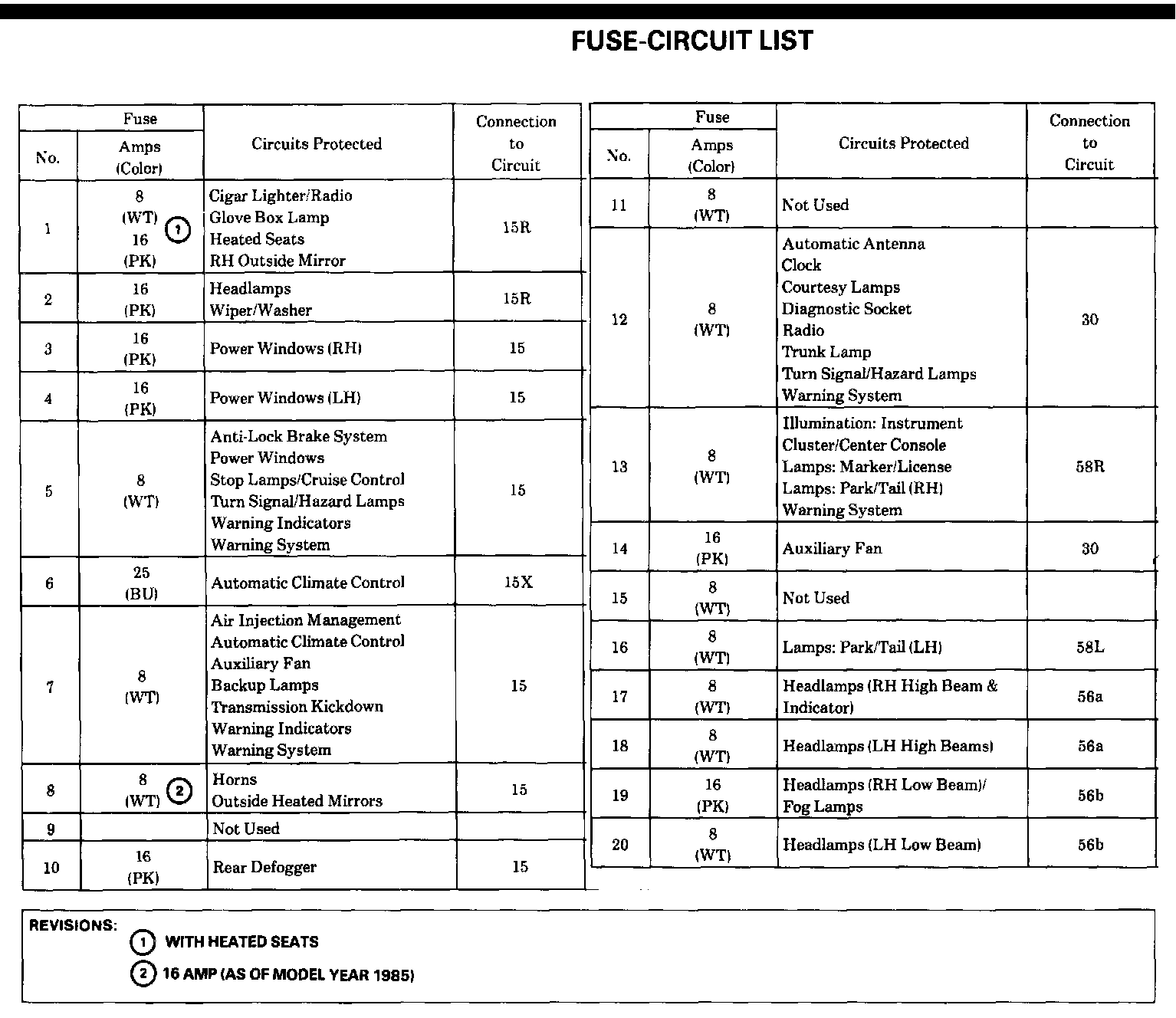

Fuse Identification:
