Overvoltage Protection Relay: Testing and Inspection

Engine 102.985


Special Tools





Equipment
^ Digital multimeter - SUN DMM-5, Fluke model 23
- Available through the MBNA Standard Equipment Program

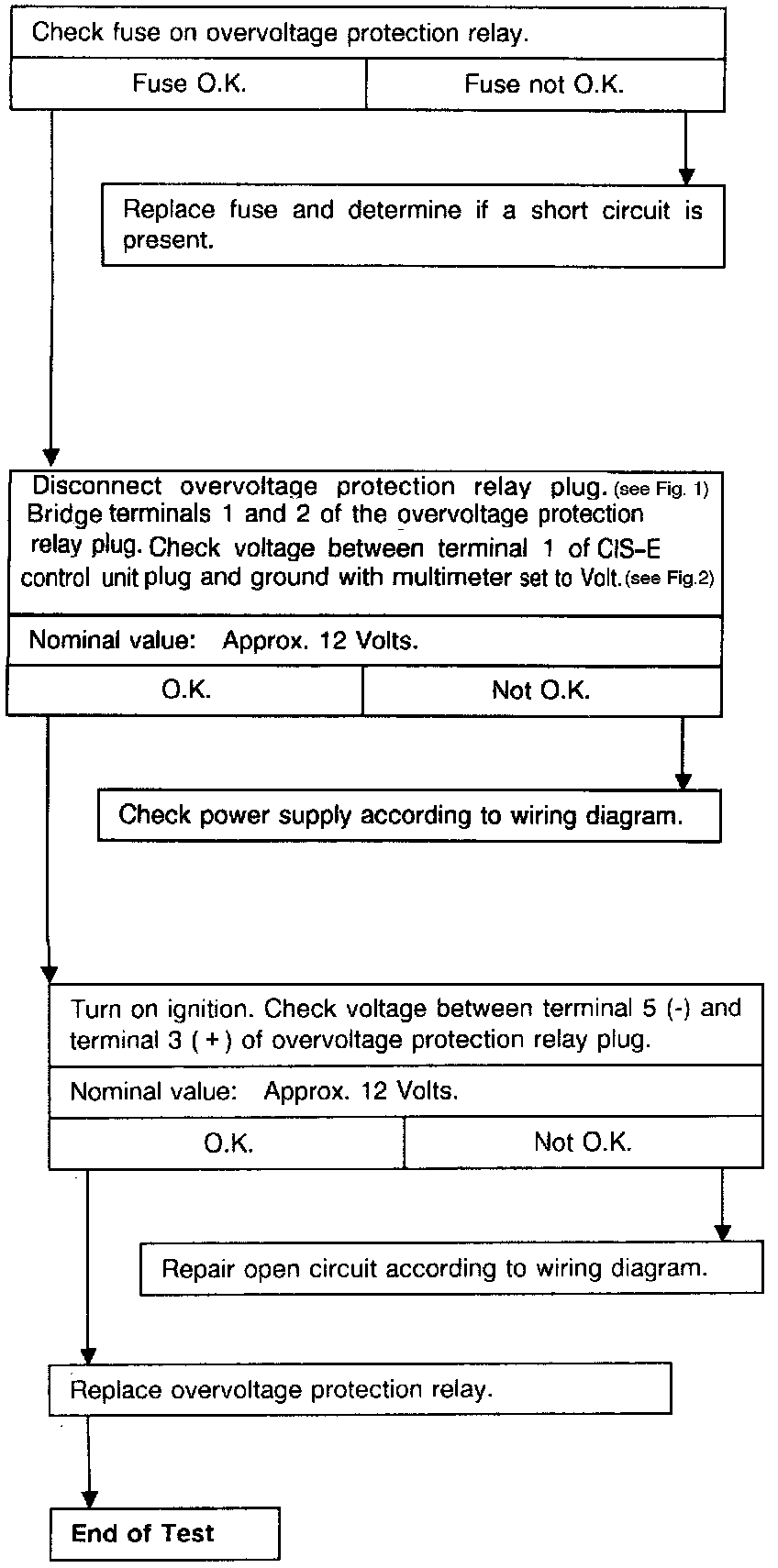

Test Procedure:

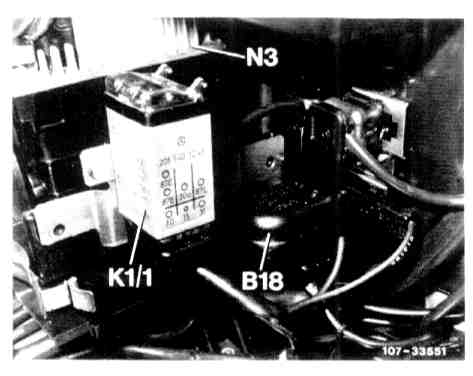

Fig. 1:





Fig. 2:
