Ambient Temperature Sensor / Switch HVAC: Service and Repair
Outside Temperature SensorREPLACEMENT PROCEDURE:
1.
Remove covering on left-hand air intake.
2.

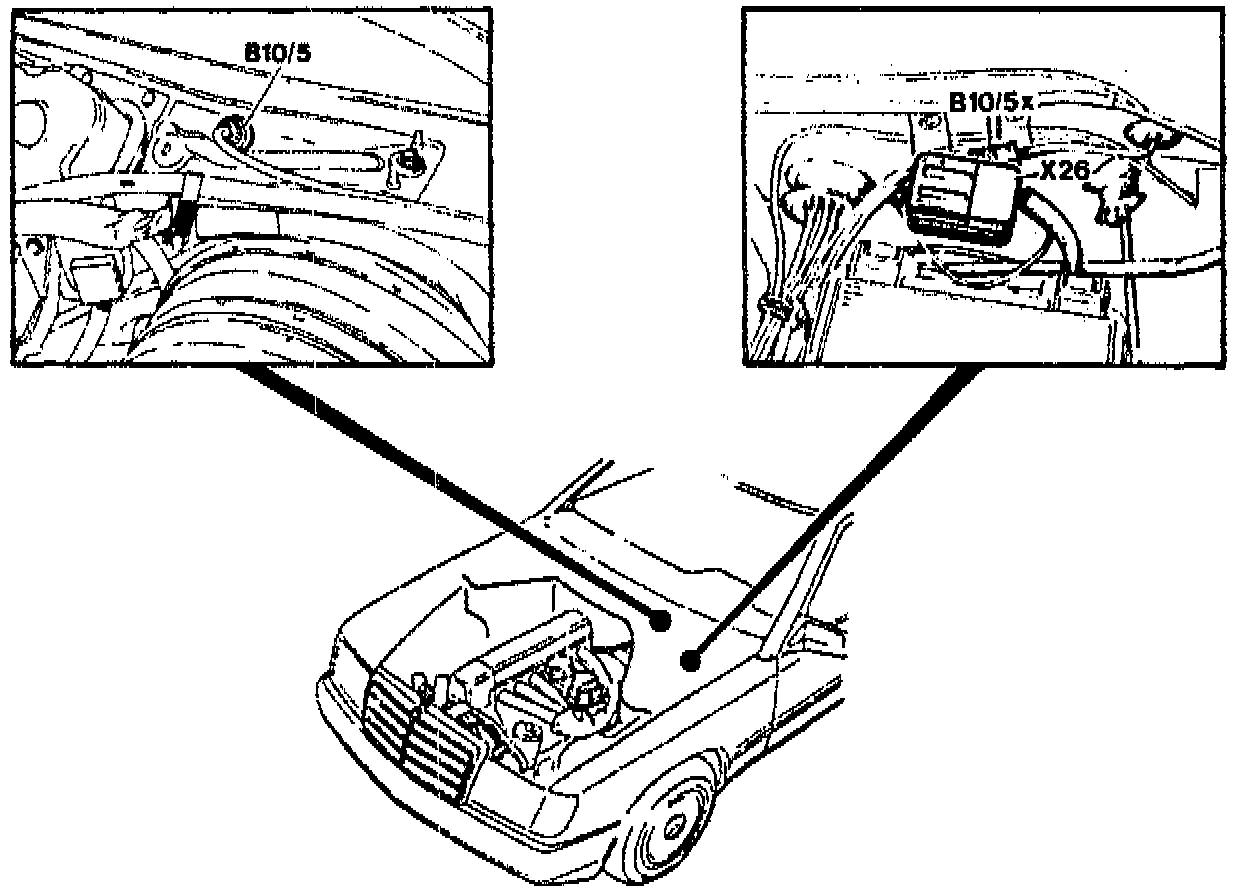

Disconnect 2-pole plug connector (B1O/5x1).
3.
Pull out
outside air temperature sensor (B10/5), press out rubber grommet.
Test and replace if necessary.
Testing and Inspection 4.
Install in the reverse sequence.
5.
Test automatic climate control.
