Remove/Install Temperature Selector

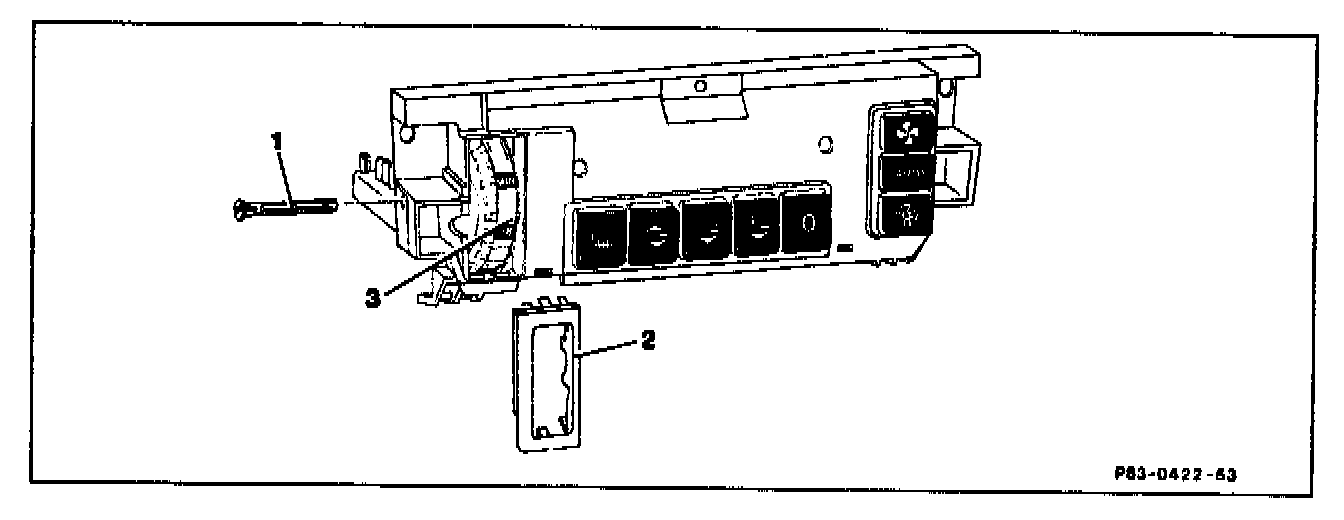

Removing And Installing Temperature Selector (without Potentiometer):
Control unit
-
Remove.
Temperature selector (3)
-
Set between "MIN" and 18 °C and pull out driving pin (1).
Frame (2)
-
Unclip and pull out.
Install in the reverse sequence, inserting the temperature selector (3) into the control unit at position between "MIN" and 18 °C.
