Remove/Install
Radio
-
Remove.

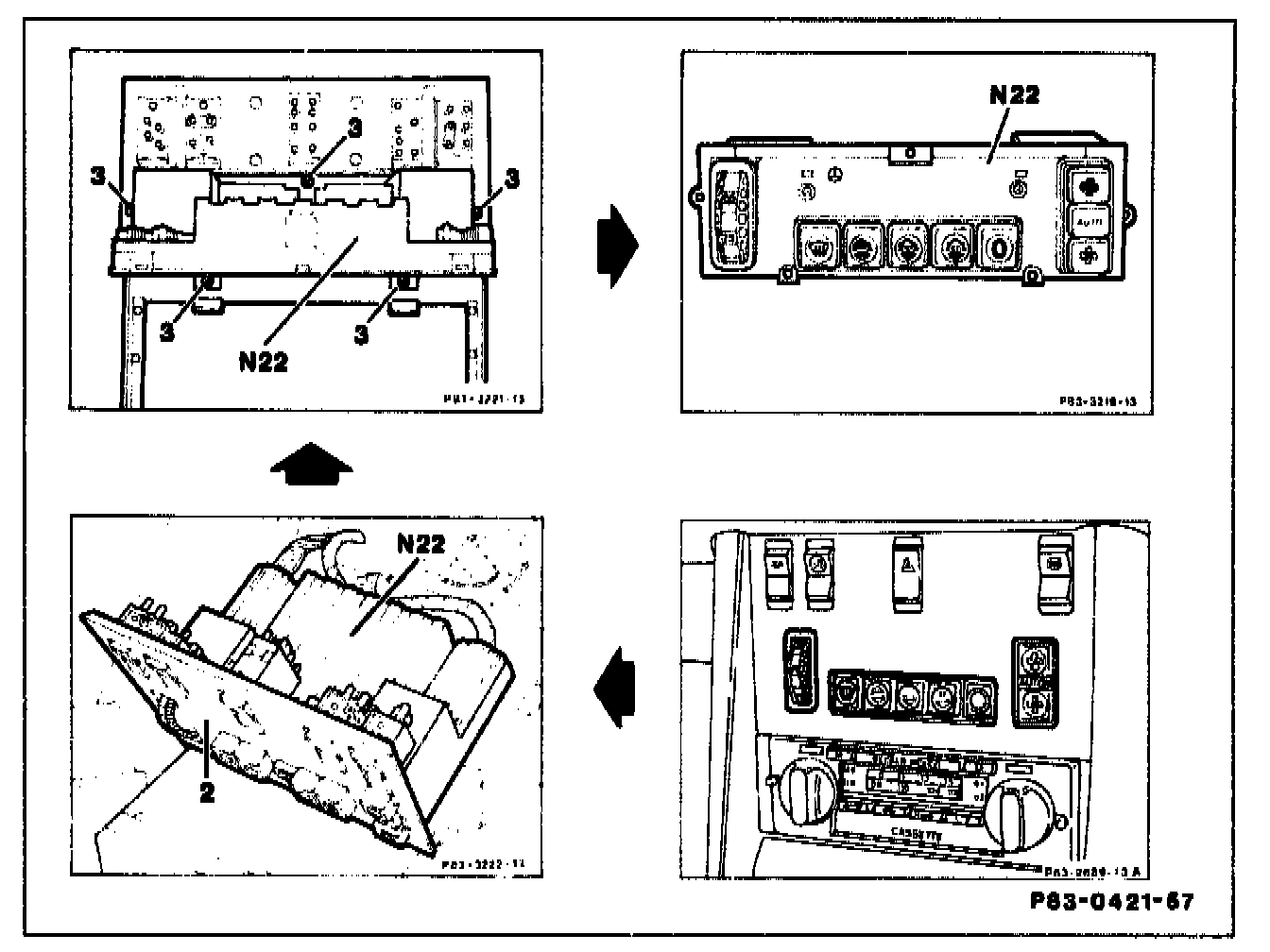

Cover (2)
-
Slacken 2 screws.
Cover (2)
-
Pull out together with control unit N22 and disconnect all couplings.
Control unit (N 22)
-
Slacken 5 screws (3) and remove from cover.
Install In the reverse sequence.
Installation Note: Before reconnecting the two couplings, check contacts of all sleeves and bend to shape if necessary.
