Air Flow Sensor Position Indicator Test

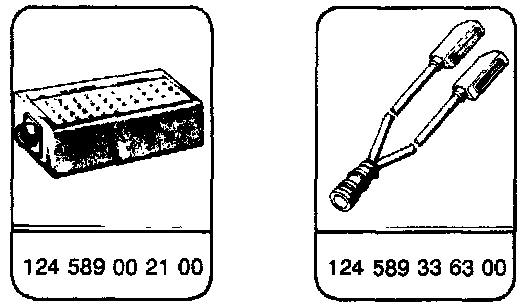

Special Tools:
Equipment -
Digital multimeter -- SUN DMM-5, Fluke model 23

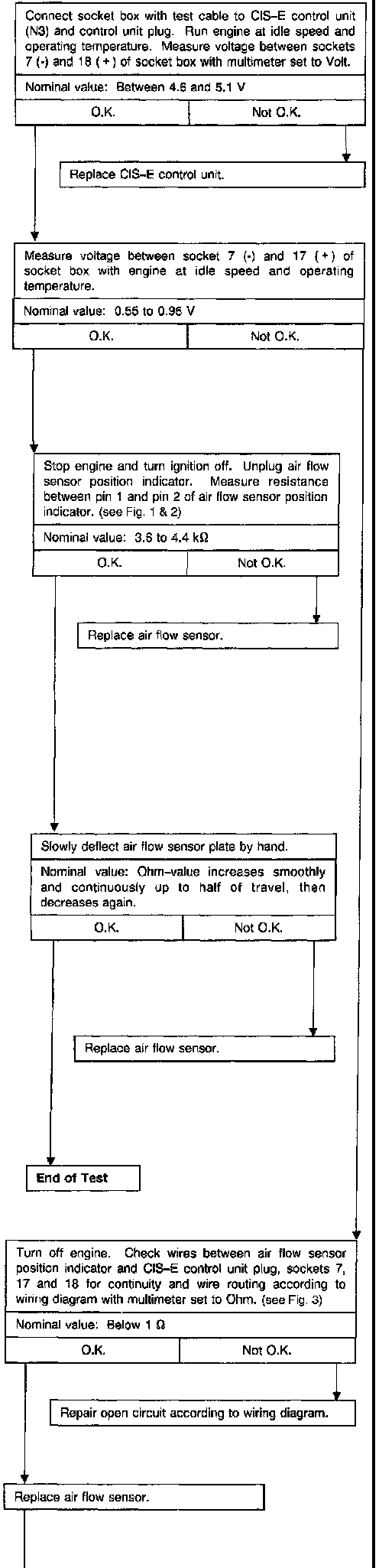

T)Test Procedure:

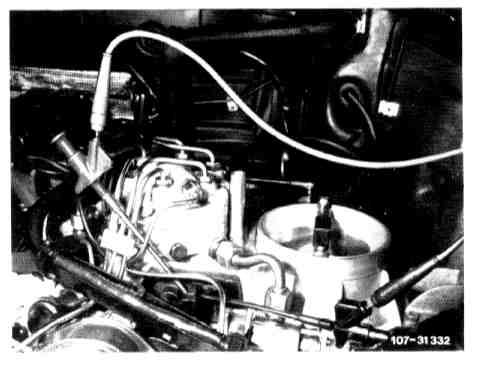

Fig. 1:

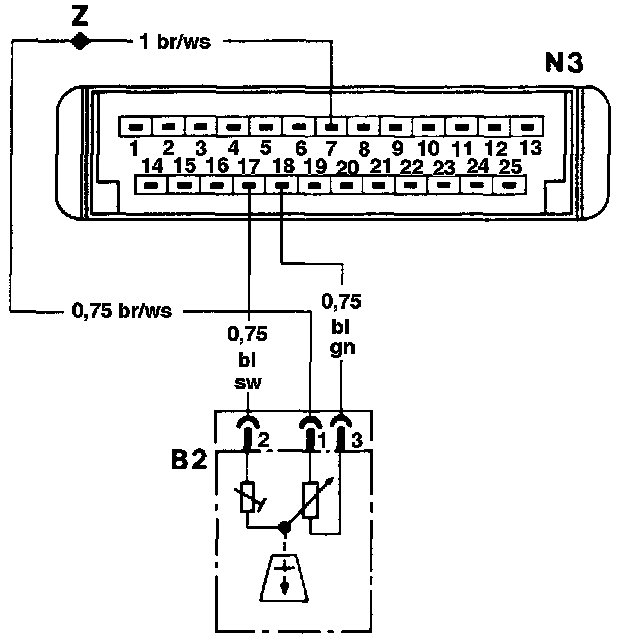

Fig. 2:

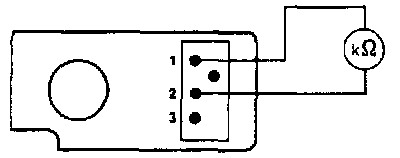

Fig. 3:
B2
Air flow sensor position indicator
N3
CIS-E
control unit Z
Connector sleeve (solder joint in harness)
Color Code bl
blue
br
brown
gn
green
sw
black
ws
white
