Ignition Cable: Service and Repair

Component Locations:

1. Remove the spark plug access cover from the cylinder head cover.
2. Loosen the spark plug connectors by turning right and left and carefully lifting out.

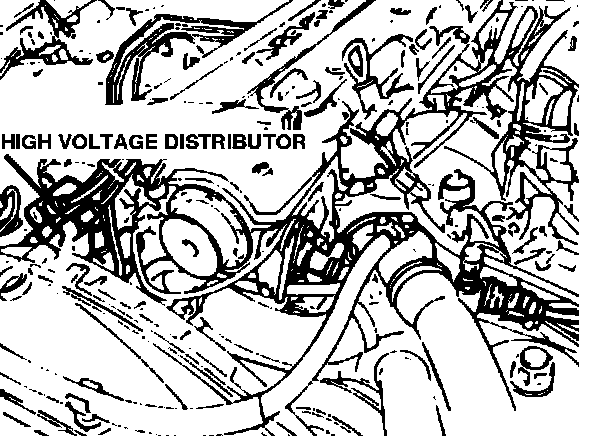

Component Location:

3. Remove the cover from the high voltage distributor.
4. Unplug the spark plug wires from the distributor cap and remove the wires.

NOTE: Observe ignition wire routing.

5. Reinstall the ignition wires in reverse manner.
