Air Flow Meter/Sensor: Description and Operation

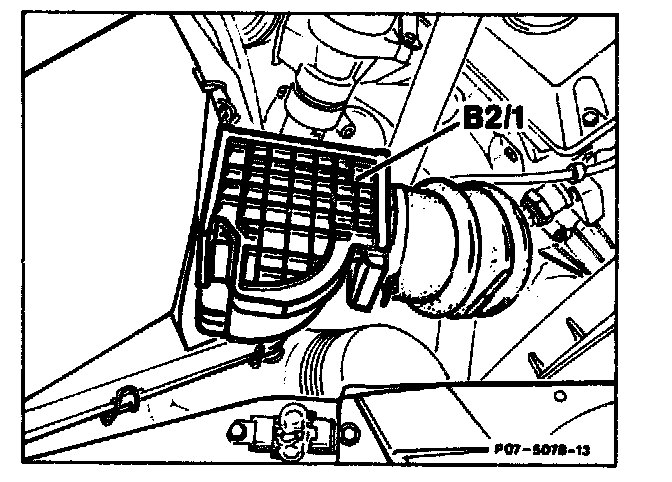

Air flow sensor (B2/1)
Intake Air Temperature Sensor (B2/1a)

Located in the air flow between the air filter and the turbocharger.

Acting against a return spring, intake air opens the air flow sensor plate to a specific angle. The position of the plate is measured by a potentiometer which converts the position into a voltage signal.

The intake air temperature is read by the temperature sensor (B2/1a) in the air flow sensor.
