Computers and Control Systems: Locations

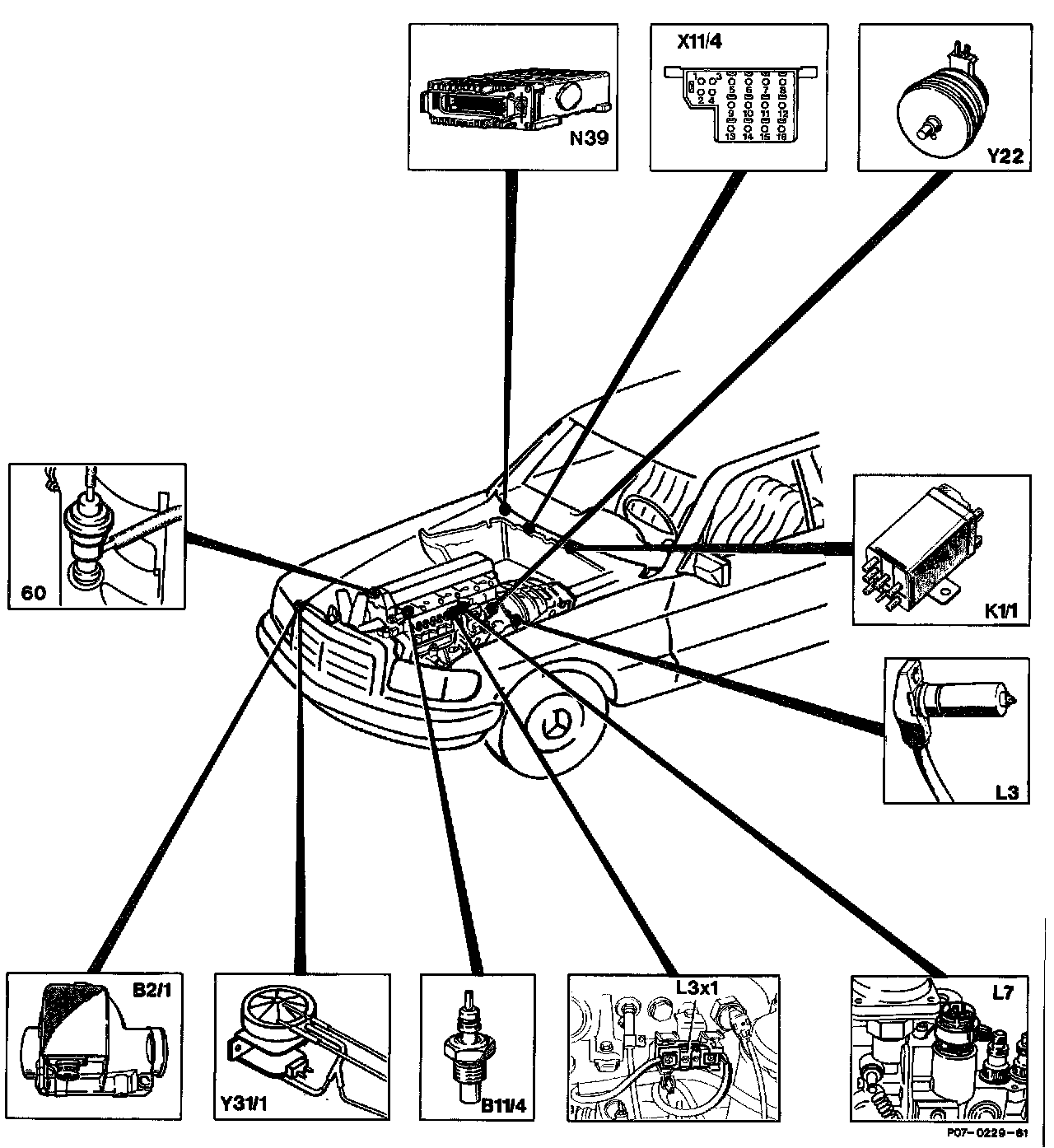

Component locations, engine 603.970





B2/1 Air flow sensor with intake air temperature sensor (EDS)
B11/4 Coolant temperature sensor (EDS)
K1/1 Overvoltage protection relay, 87 E (7-pole)
L3 Starter ring gear speed sensor
L3x1 Connector, starter ring gear speed sensor
L7 Fuel rack position sensor
N39 EDS control unit
X11/4 Test connection for diagnosis (8-pole)
Y22 Electromagnetic actuator, electronic idle speed control (ELA)
Y31/1 EGR valve vacuum transducer
60 EGR valve
