Engine Overload Protection System Test (DE-04.14)
Engine Overload Protection System Test (DE-04.14)
This test is divided into the following sections
A. Engine 602.96
B. Engine 603.96
A. Engine 602.96 Special Tools:
Equipment:

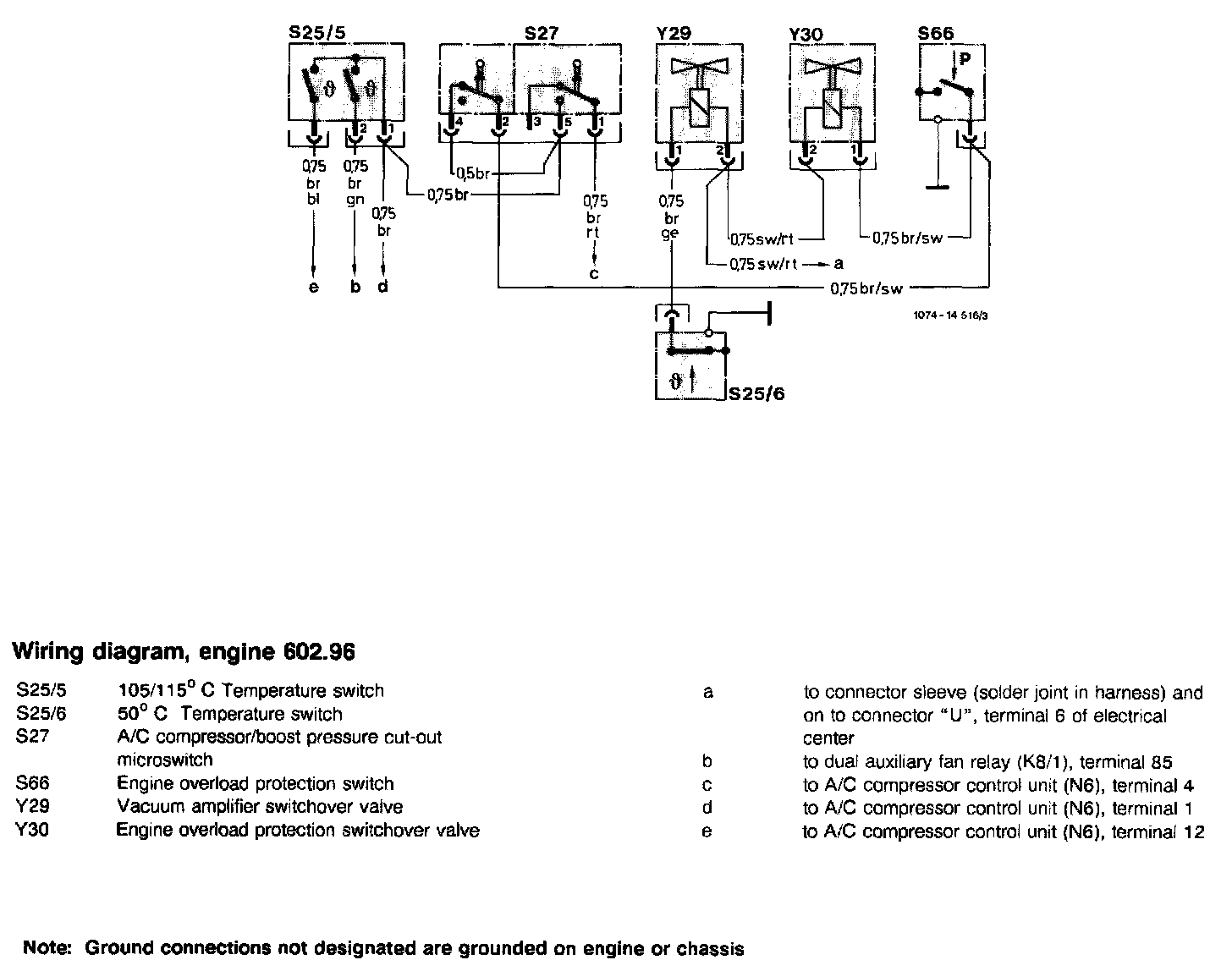

Wiring Diagram:

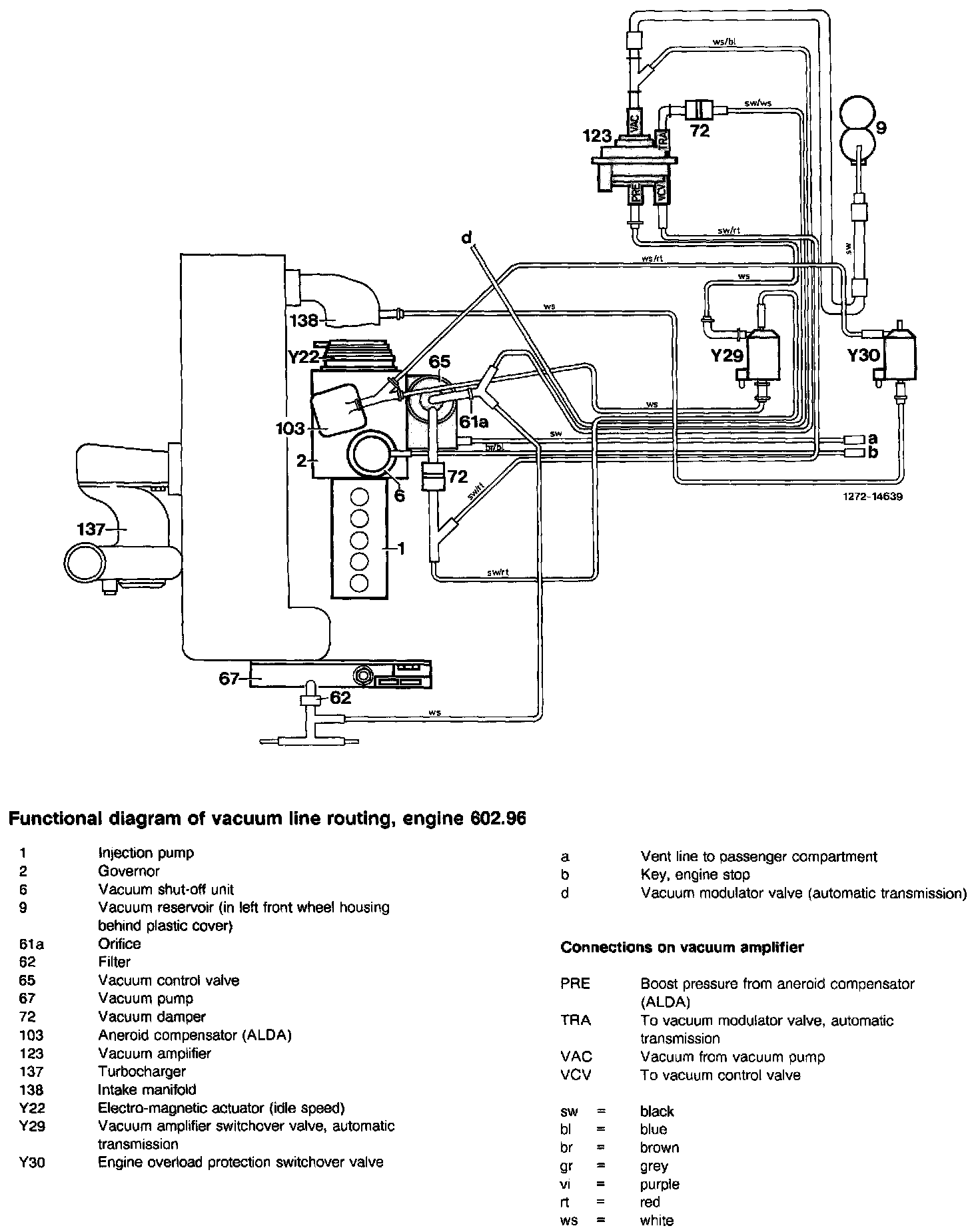

Functional Diagram Of Vacuum Line Routing:
Test B. Engine 603.96 Special Tools:
Equipment:

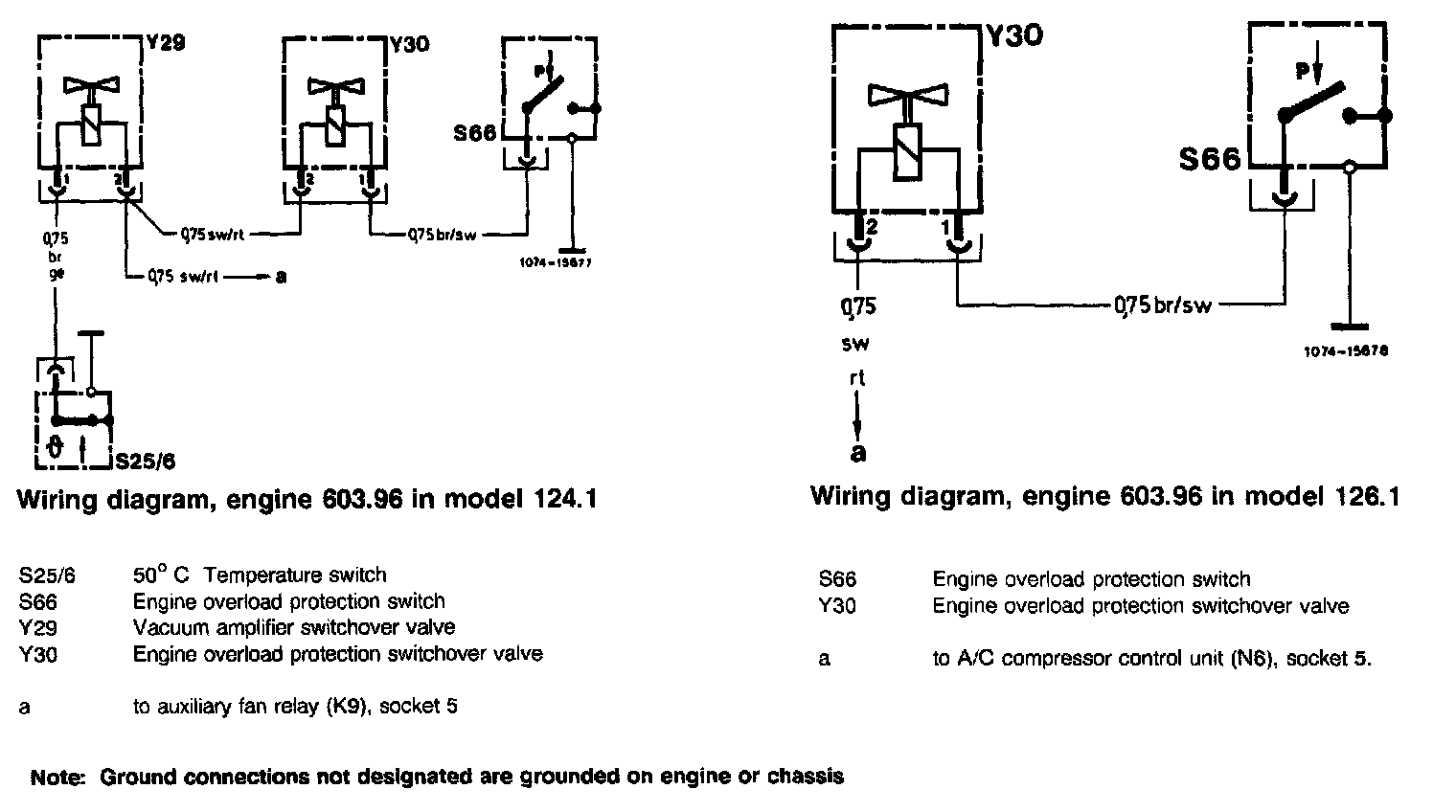

Wiring Diagram:

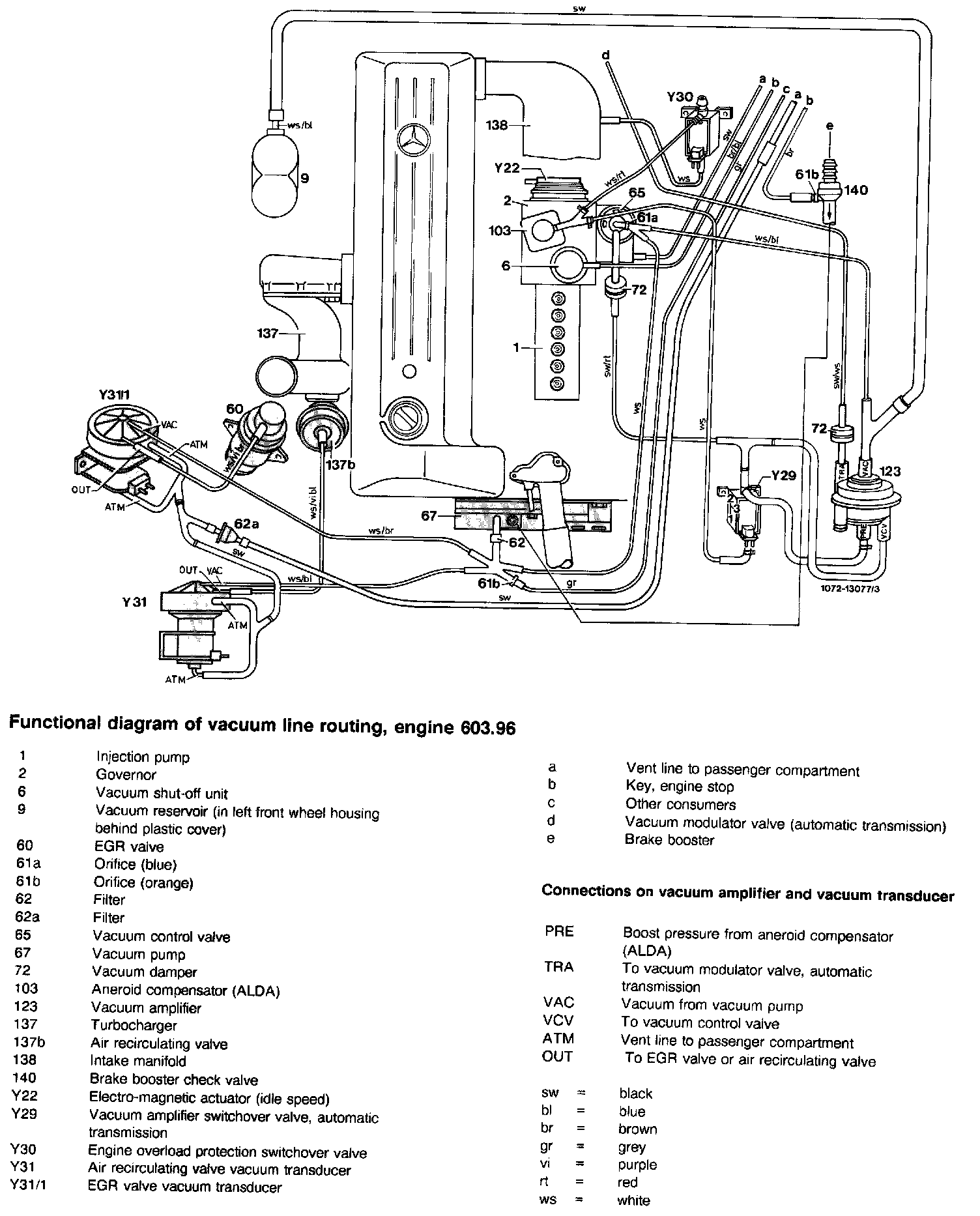

Functional Diagram Of Vacuum Line Routing:

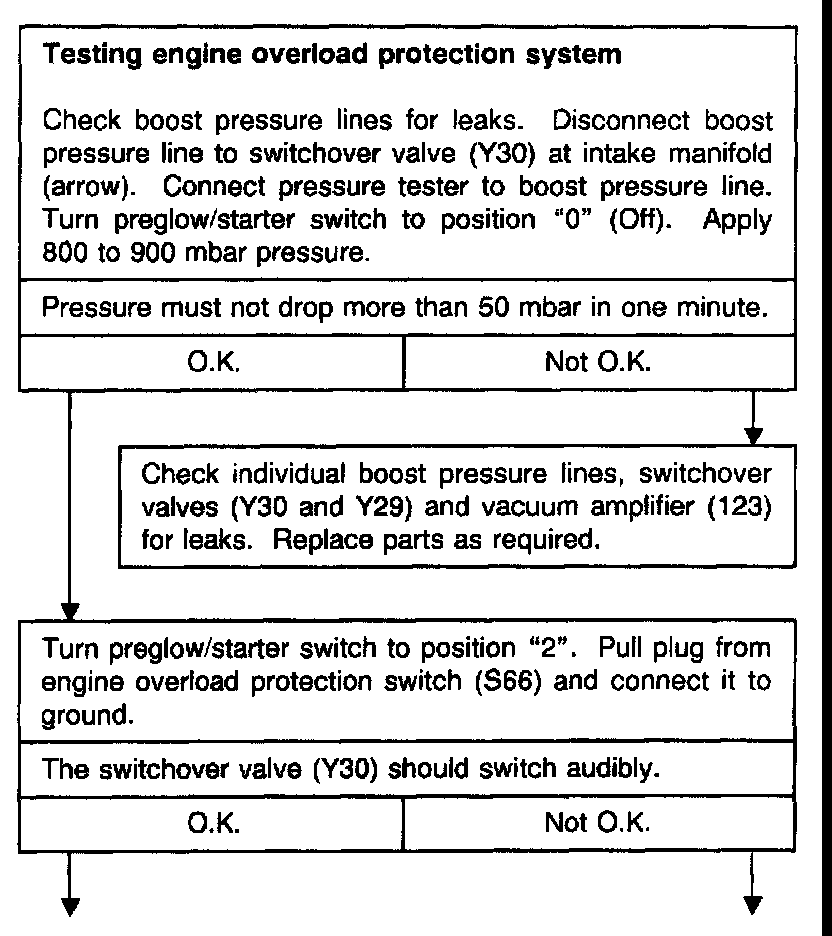

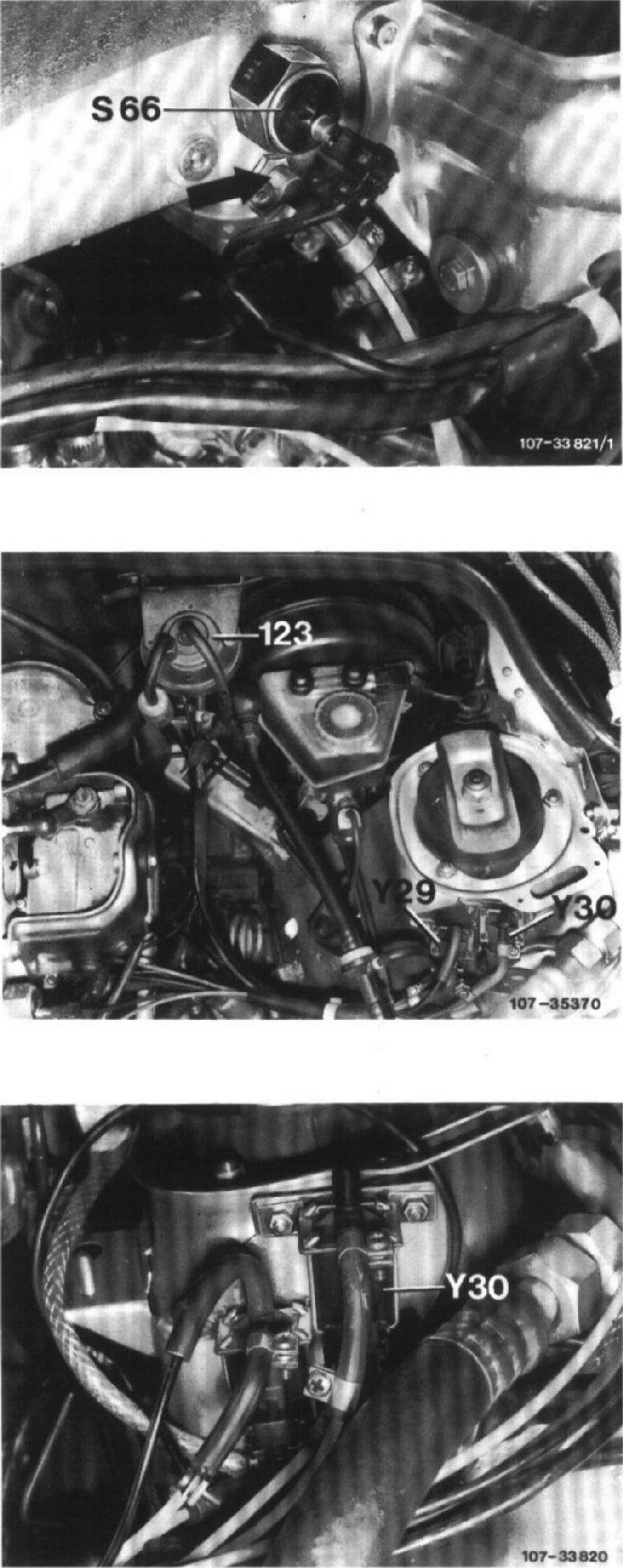

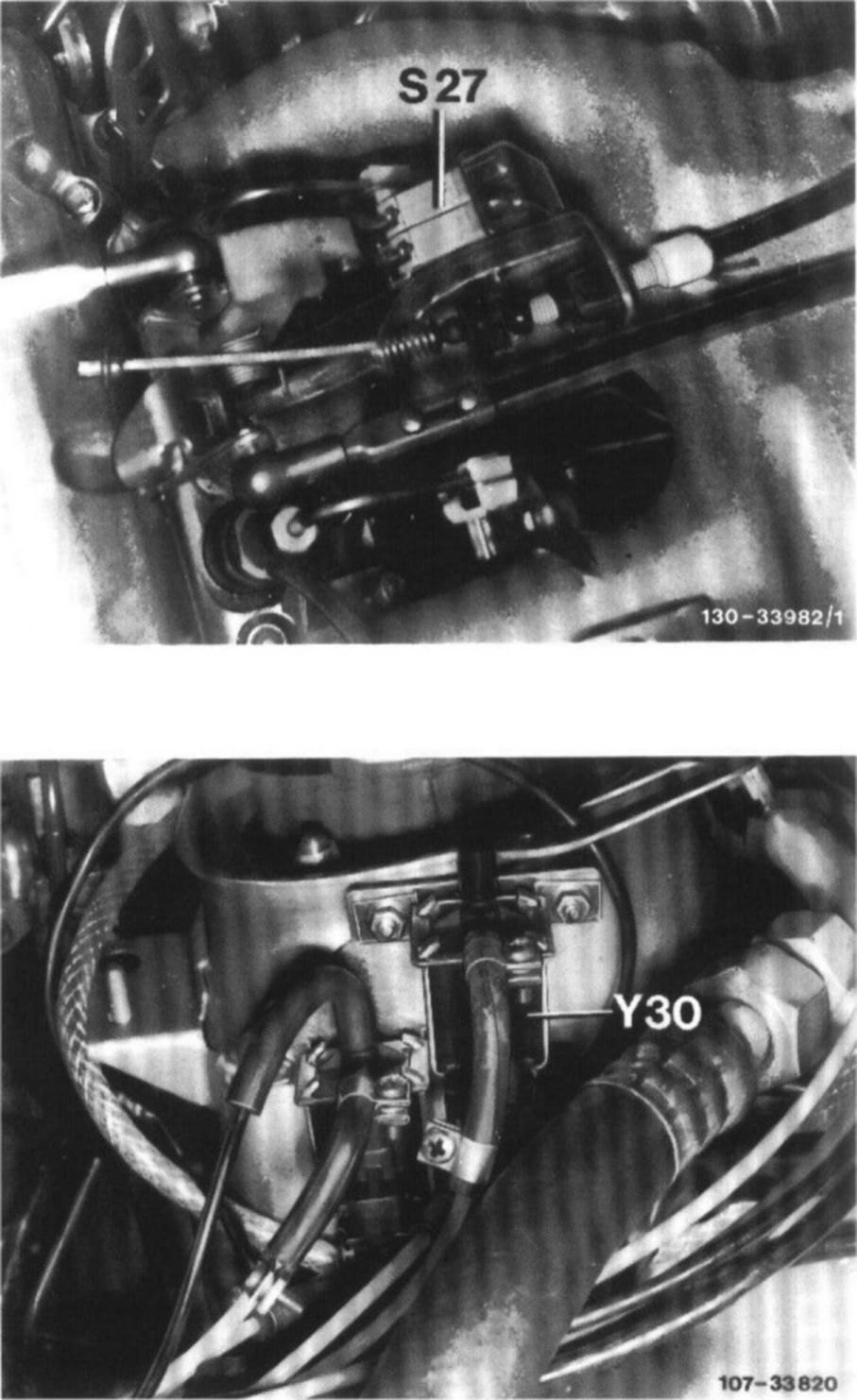

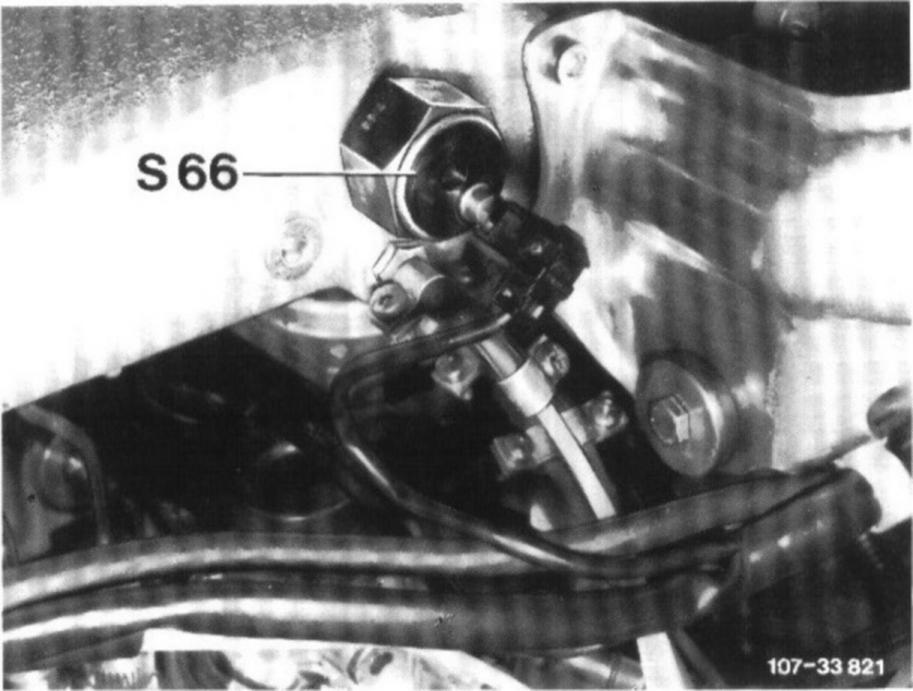

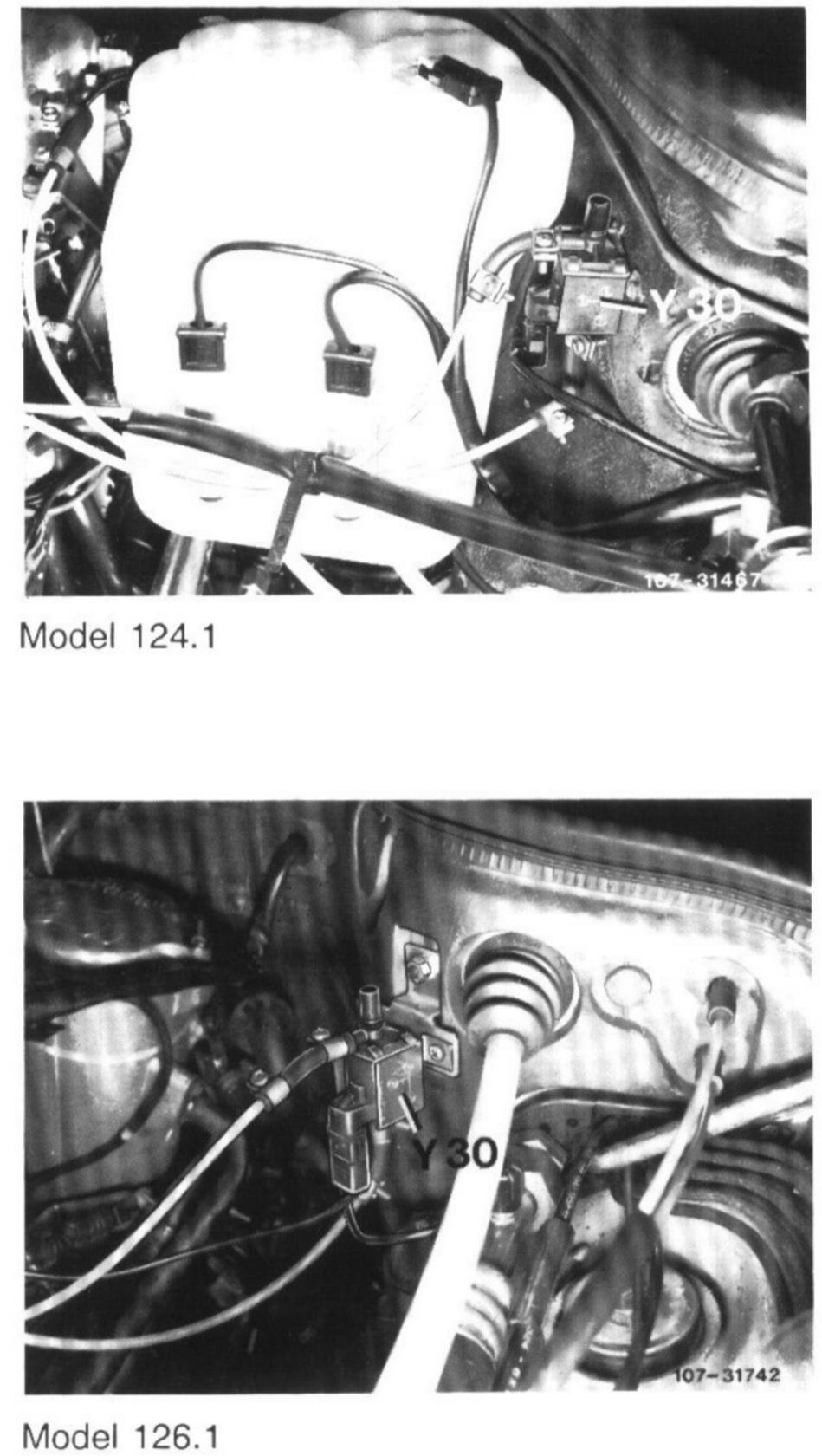

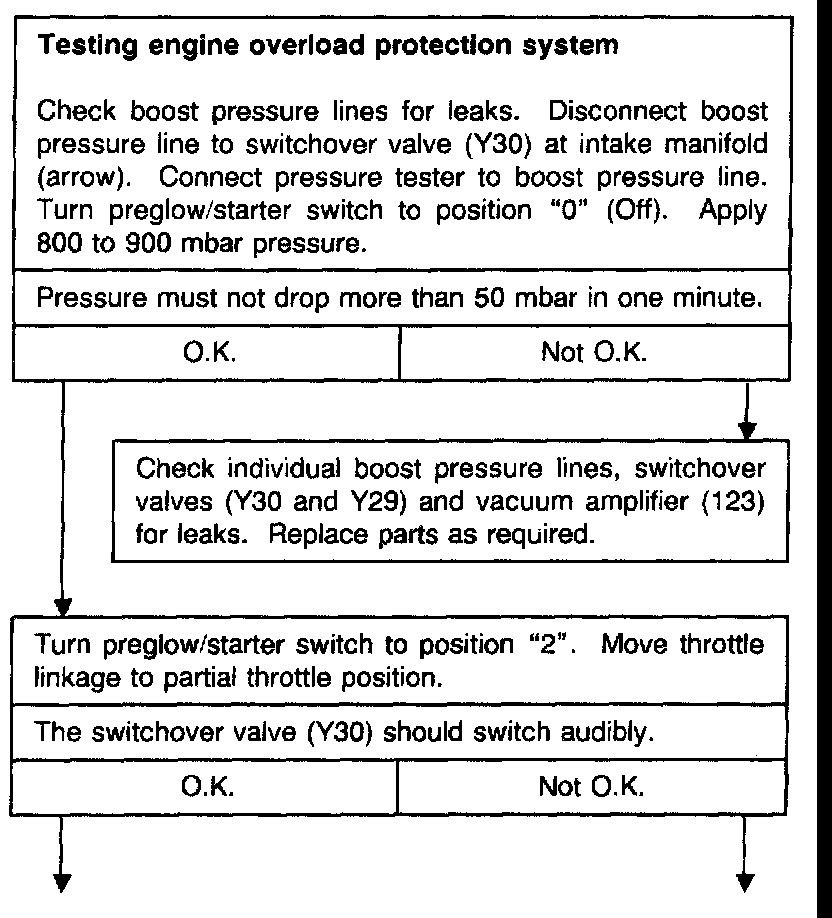

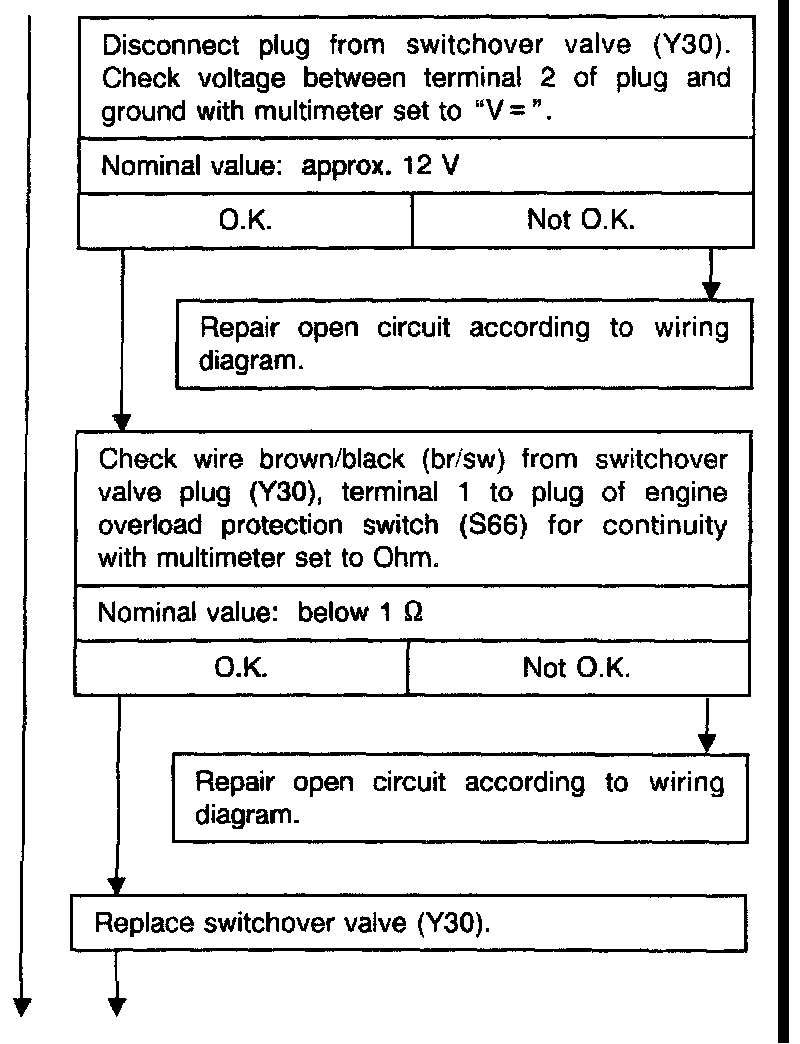

Test
