Air Injection: Locations

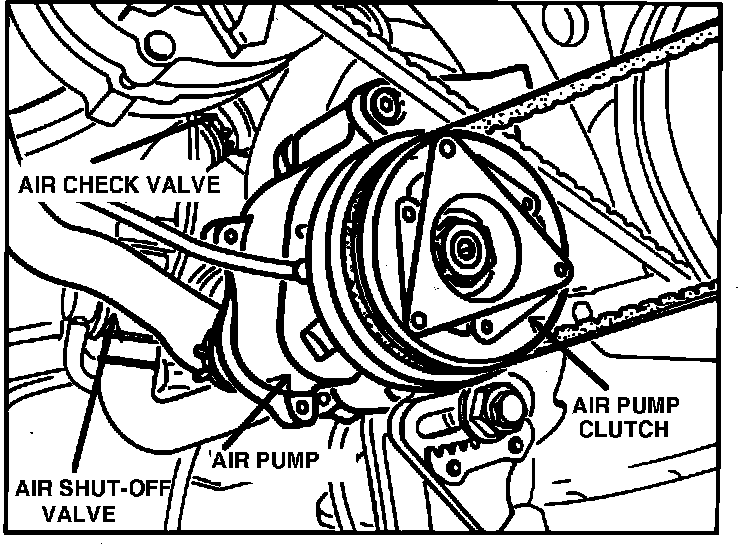

Fig. 62 Air Injection Component Locations:
The air injection pump is located beneath the alternator.

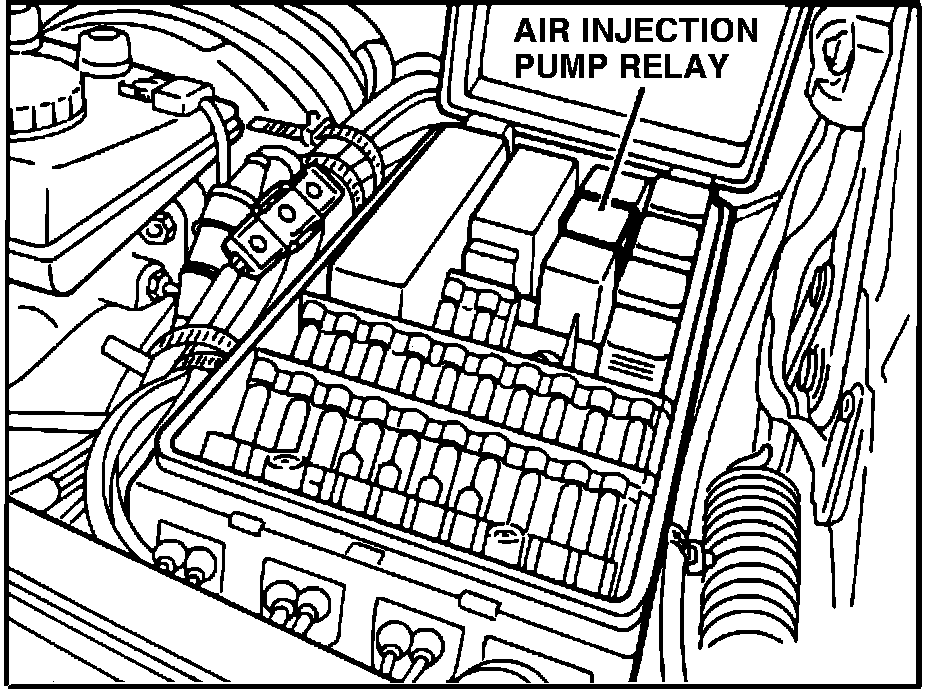

Fig. 20 Air Injection System Pump Relay Location:
The air injection pump relay is located in the fuse box.
Fig. 24 Coupling Coolant Temperature Sensor Location:
The coupling coolant temperature sensor is located on the intake manifold near the throttle valve.

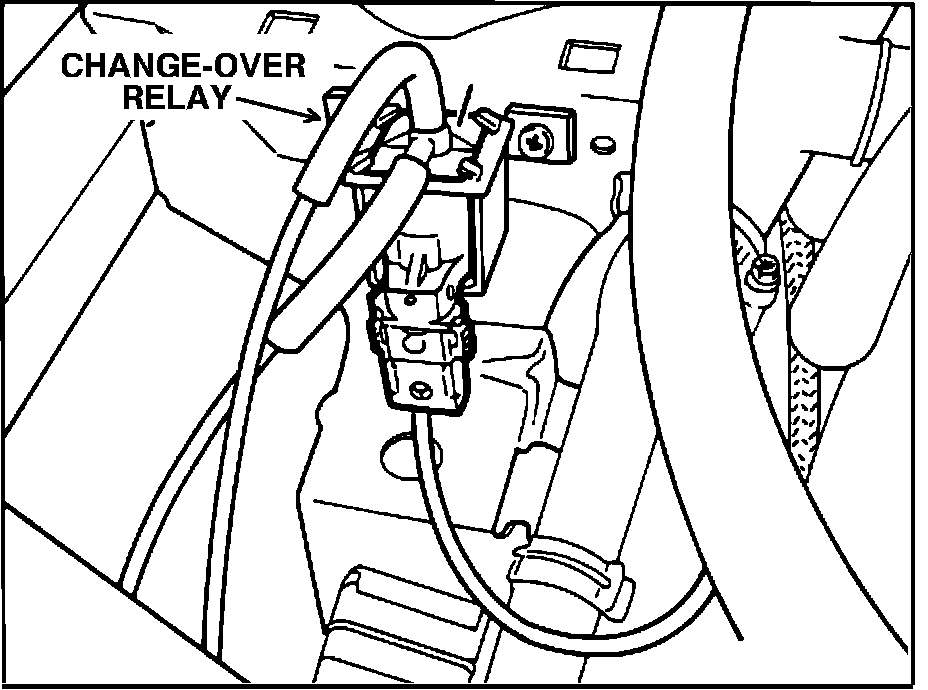

Fig. 21 Change-Over Valve Location:
The change-over relay is located on the left hand fender well.
