Vehicle Speed Sensor: Testing and Inspection
Special Tools:
Equipment -
Digital multimeter -- SUN DMM-5, Fluke model 23
-
Digital tester --
SUN EMT-1019/Master 3, MCM-2110, MEA-1500 MB, Bear D.A.C.F. model 40-960, All-Test 3610-MB (for rpm readings only)

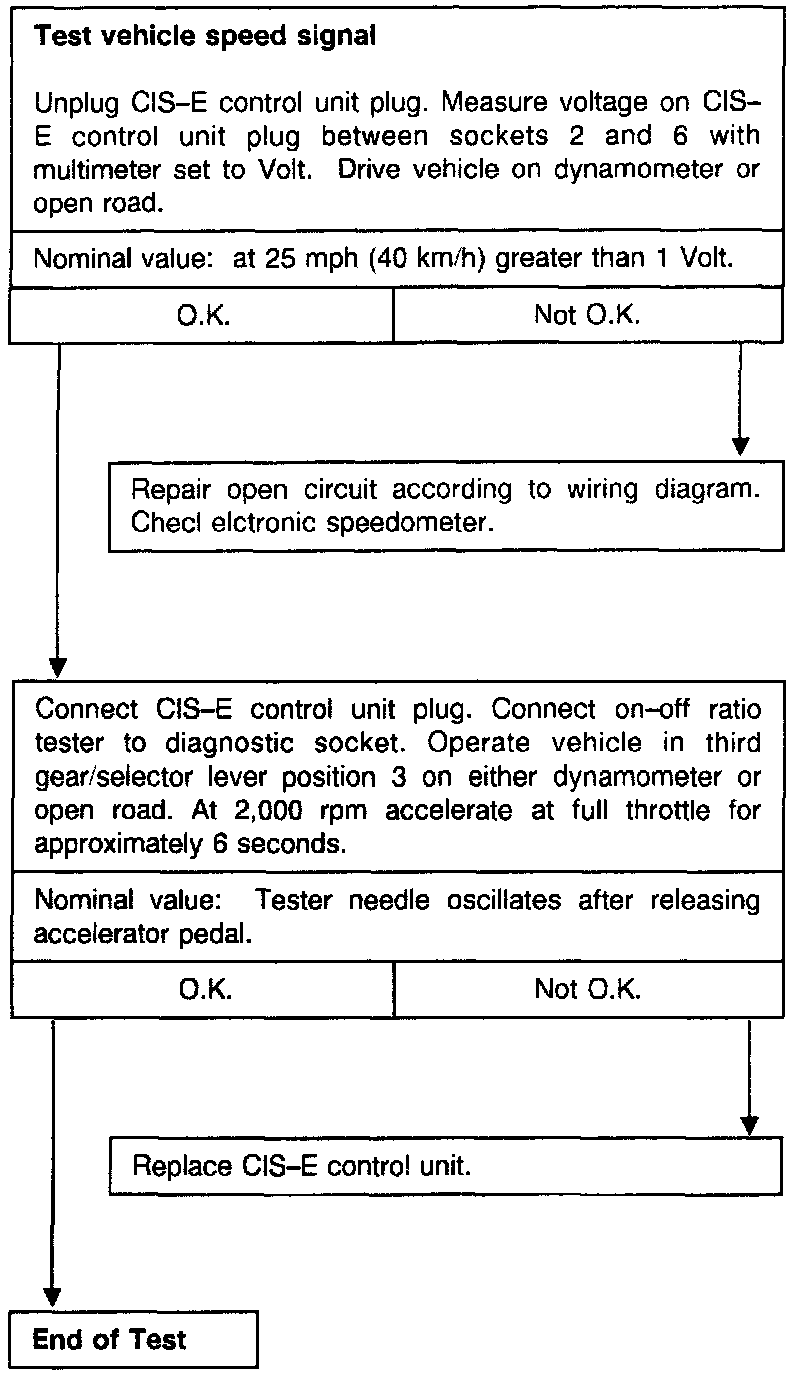

Test Procedure:
