Function Tests (Idle Speed Control, EGR)

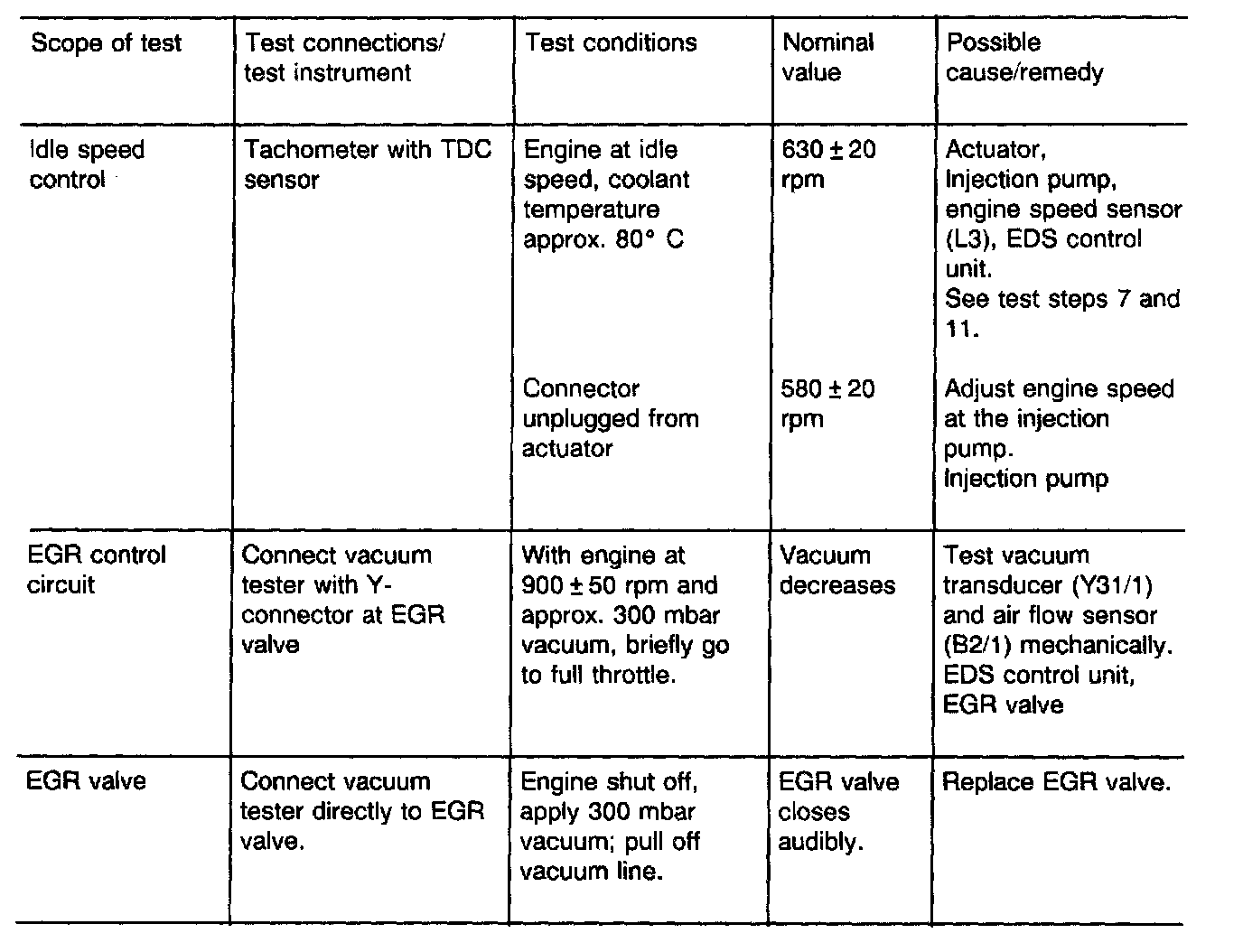

Function tests, electronic Idle speed control (ELR), EGR, engine 603.970

Note: This test is to be performed it there is a driveability complaint, but no malfunctions are displayed on the impulse readout.
