Remove/Install Infrared Motion Sensor Control Unit

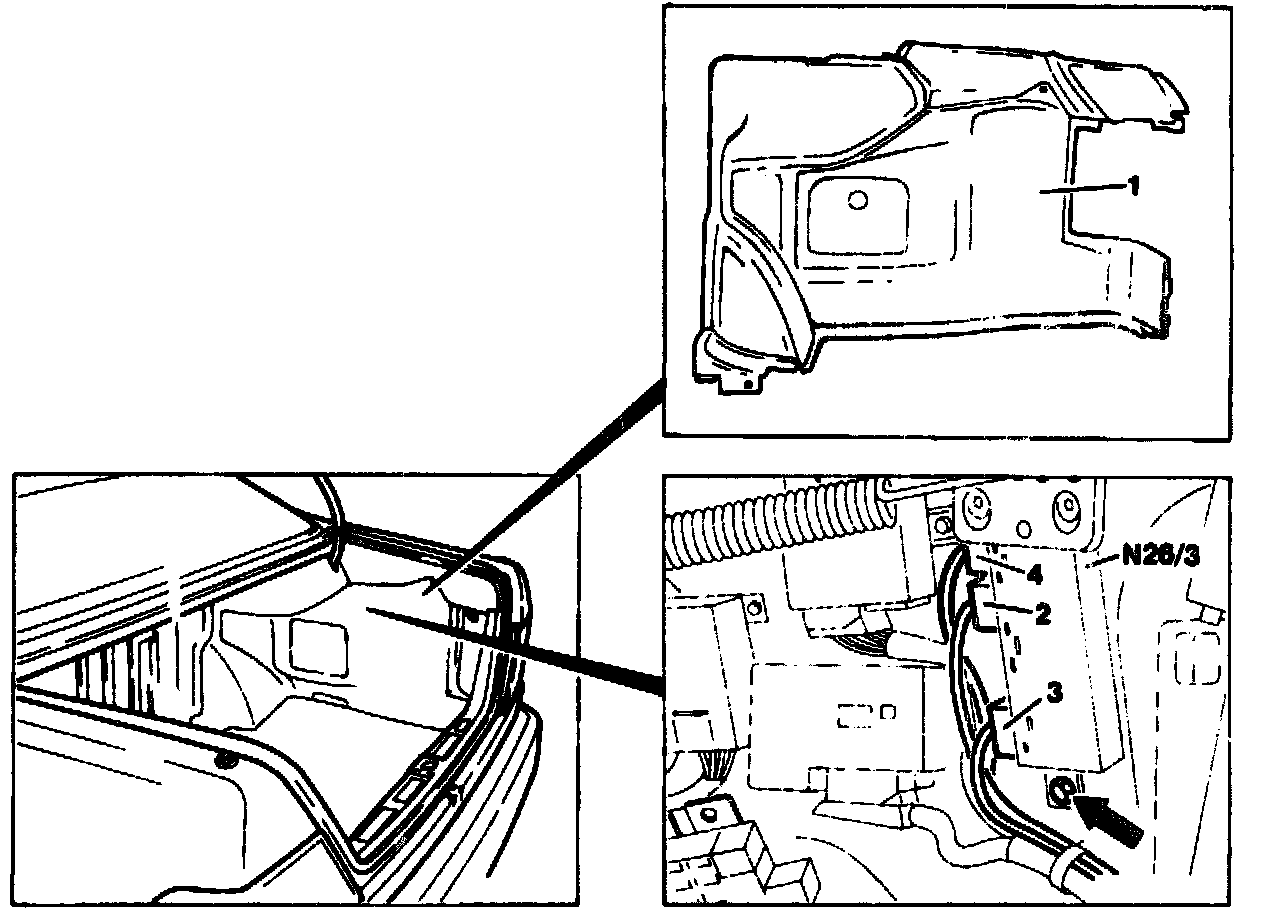

Replacing Infrared Interior Motion Sensor Control Module (N26/3)Trim (1) in right of trunk
remove, install.
Screw (arrow)
unscrew, screw in.
Infrared interior motion sensor control module (N26/3)
remove, install.
Electrical connectors (2-4).
unplug, plug in.
NOTE: Perform function check.
