Global Positioning System Module: Service and Repair



Up to 11/96

NOTE: As of approx. 12/96 the GPS control module (N14/2) is integrated into the navigation module / processor.






Quiescent current retention unit
disconnect, connect.

Ground lead on battery
disconnect, connect.

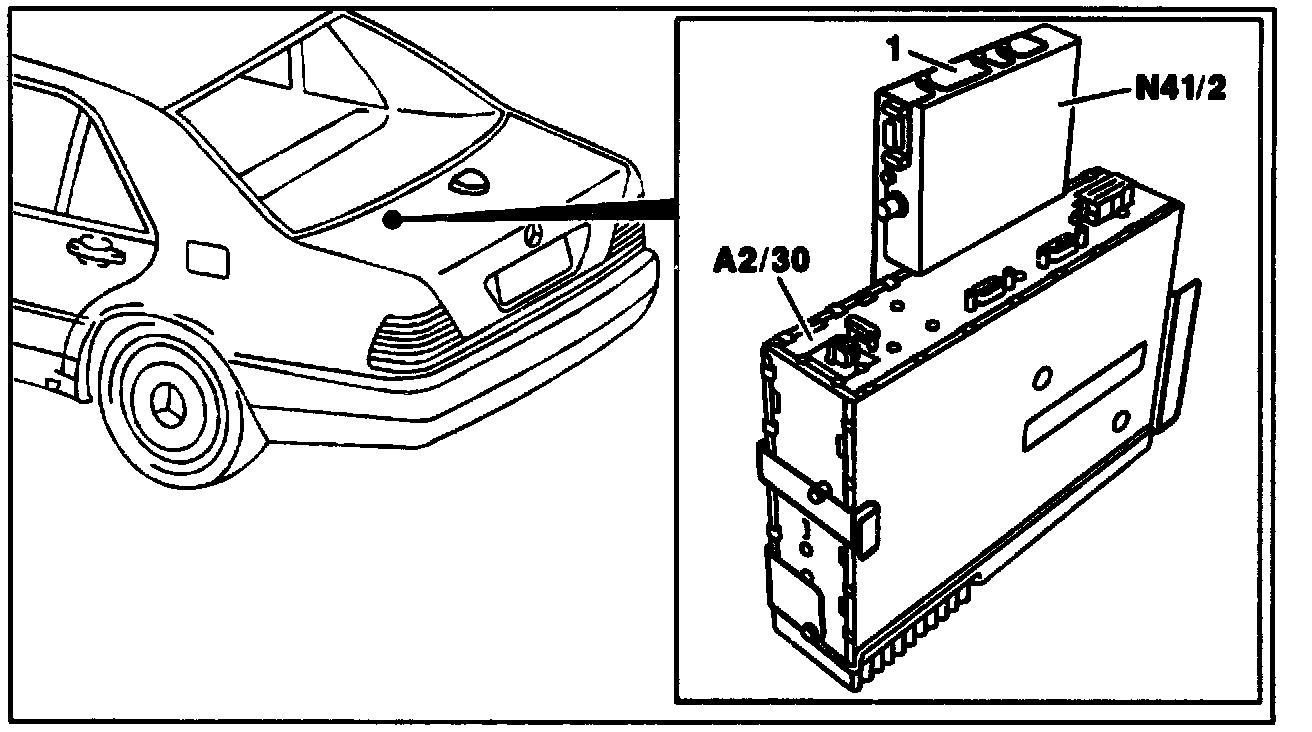

Holder (1)
remove, install.

Electrical connections on control module (N41/2)
disconnect, connect.

Control module (N41/2)
remove from holder (1), install.


Commercially available tester
Quiescent current retention unit e.g. Hans Zeheter CMP 12.2
