Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Intake Air Temperature Sensor Replacement:

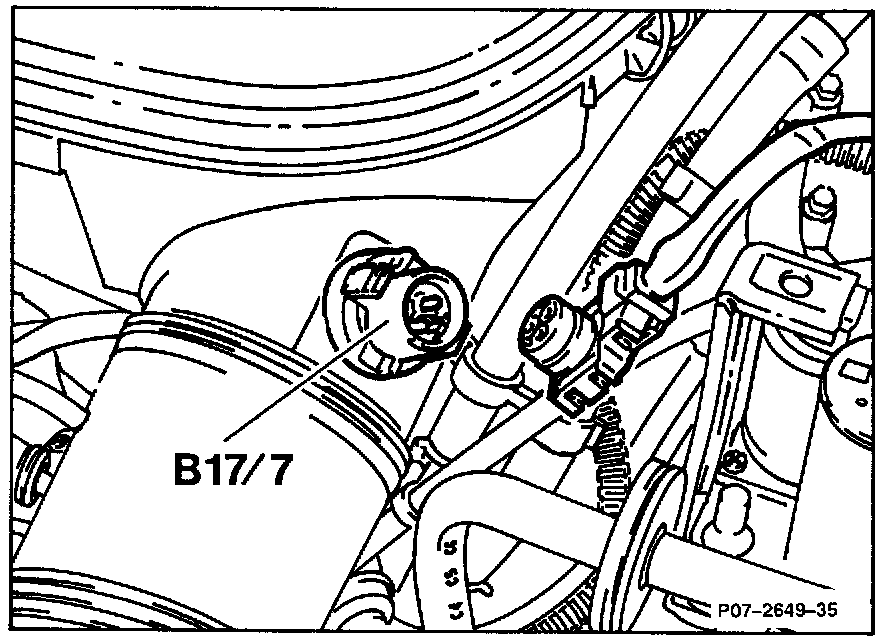

1. Unplug electrical connector at intake air temperature sensor (B17/7).
2. Check O-ring, replace if necessary.
3. Turn intake air temperature sensor (B17/7) to left and remove it.
4. Install in reverse order.
5. Extract and reset fuel injection control module diagnostic trouble code memory.

NOTE: Stored trouble codes may be caused by detached cables or repair work.
