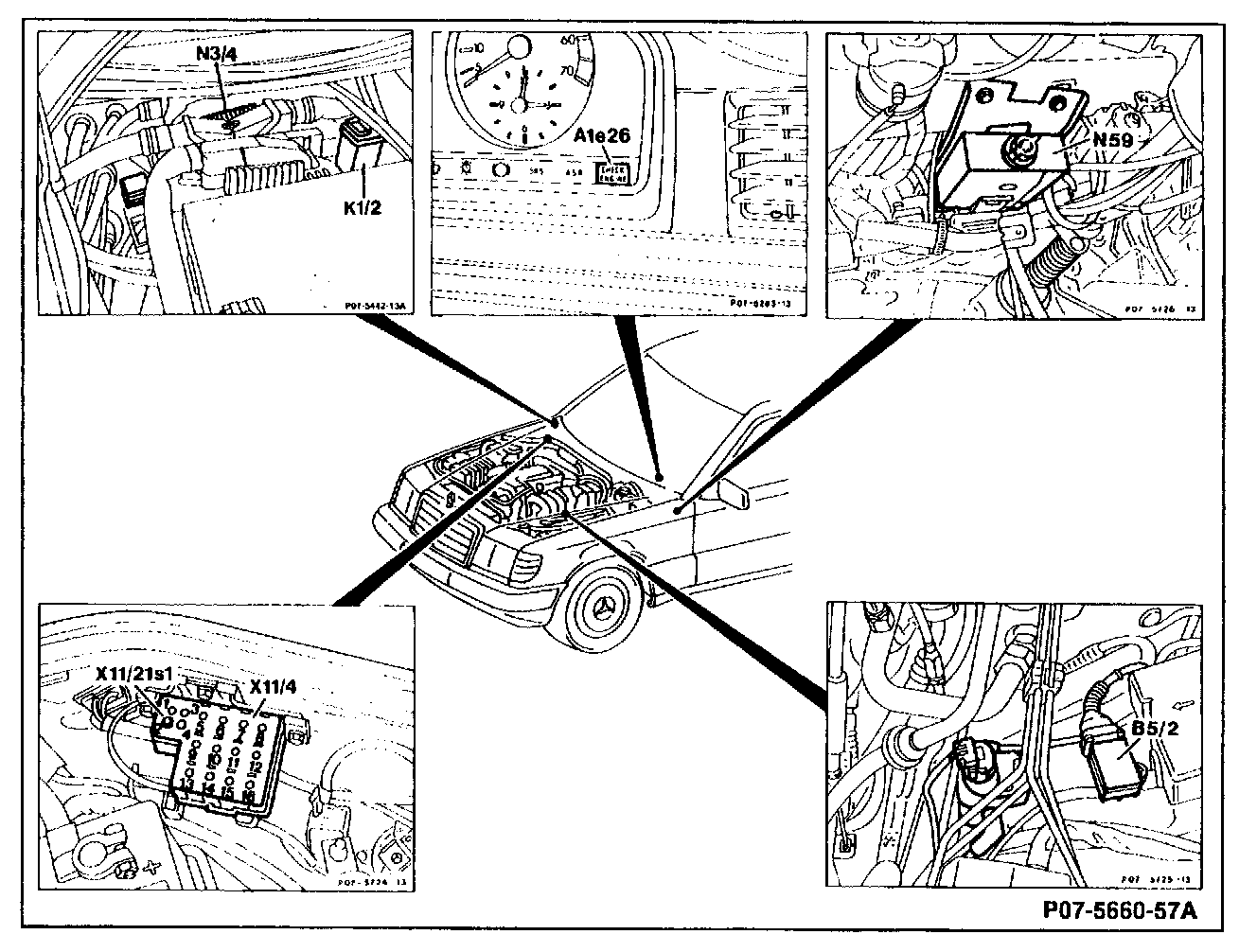

DM Related Components
A1e26
"CHECK ENGINE" malfunction indicator lamp (MIL)
B5/2
Pressure sensor (DM)
K1/2
Overvoltage protection relay module 87E/87L/30a, 9-pole
N3/4
Engine control module (HFM-SFI)
N59
Diagnostic module - California version
X11/4
Diagnostic connector (diagnostic trouble code 16-pole)
X11/21s1
Pushbutton (with LED)
