Compressor HVAC: Service and Repair

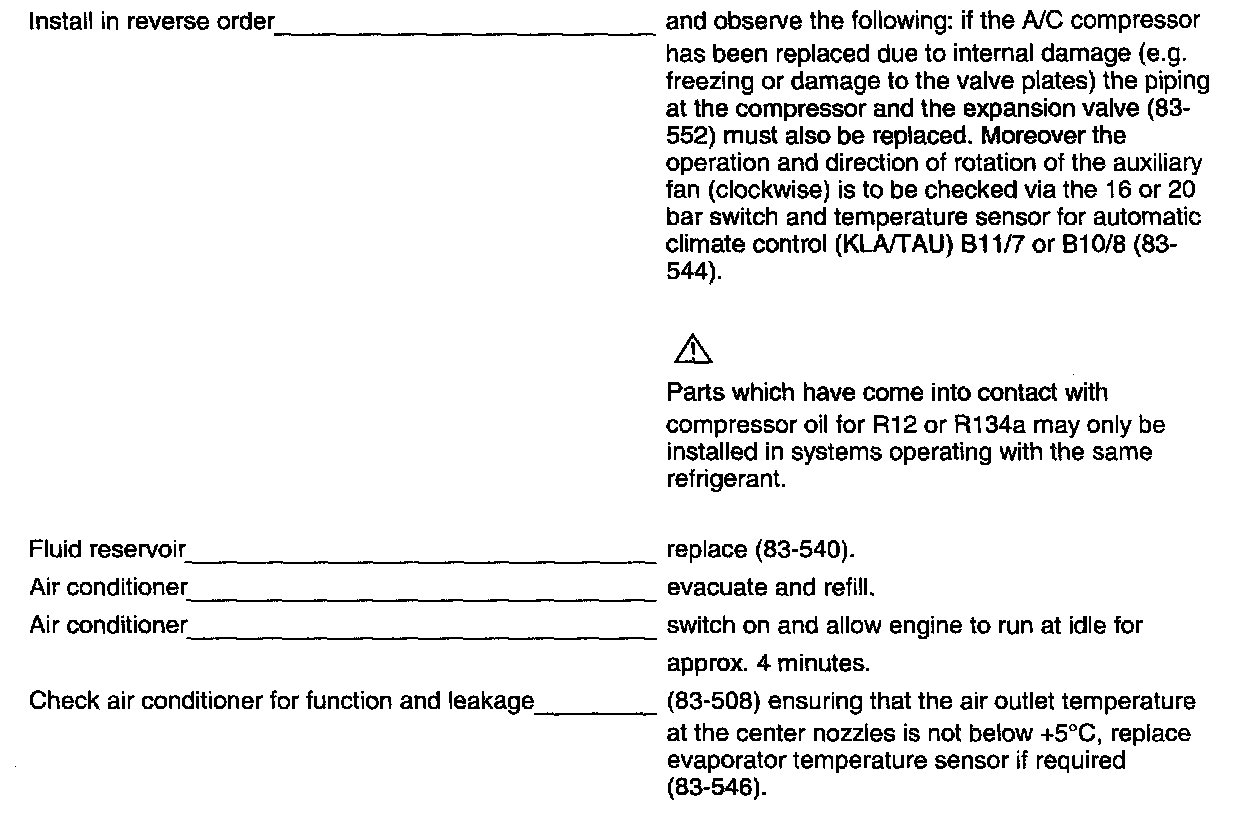

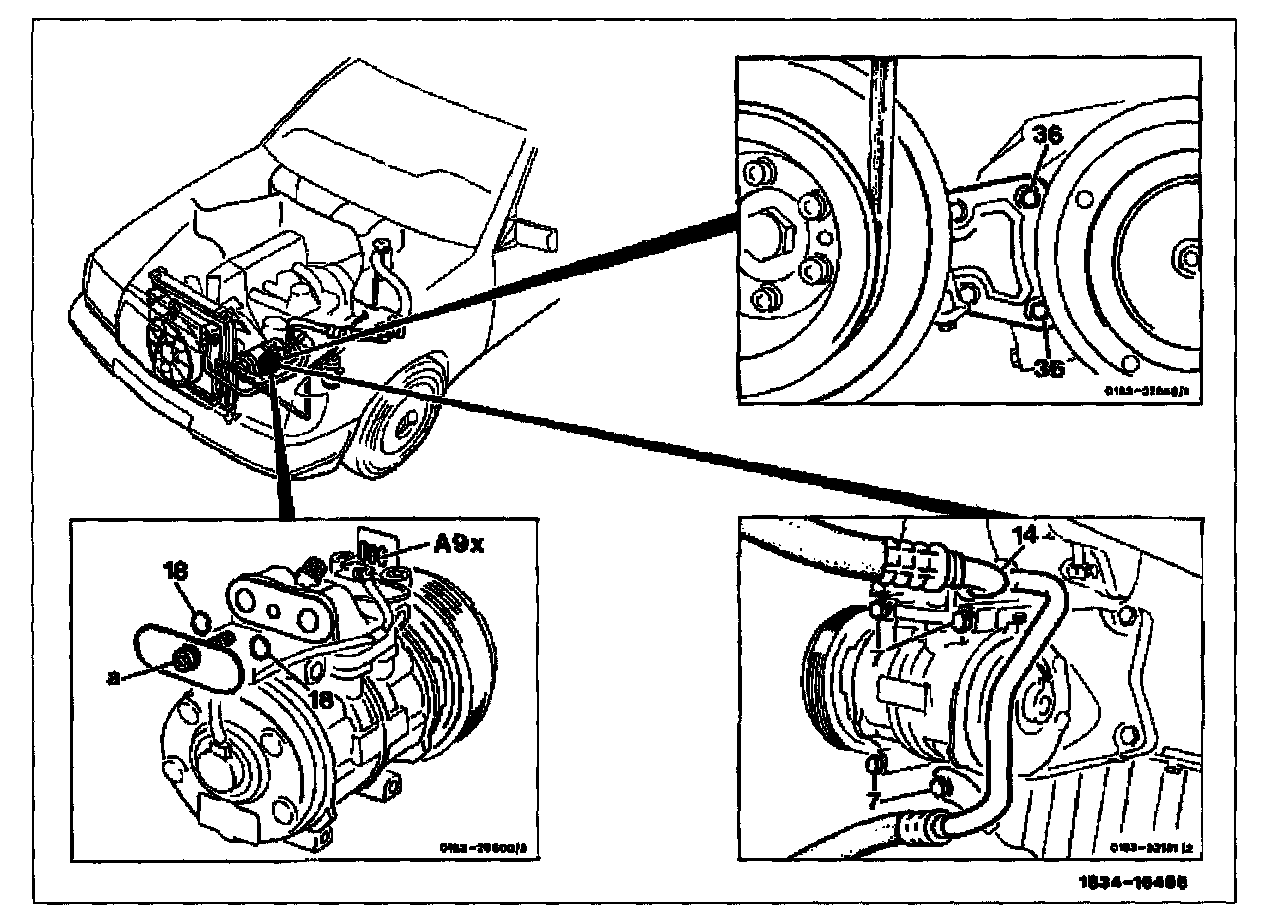

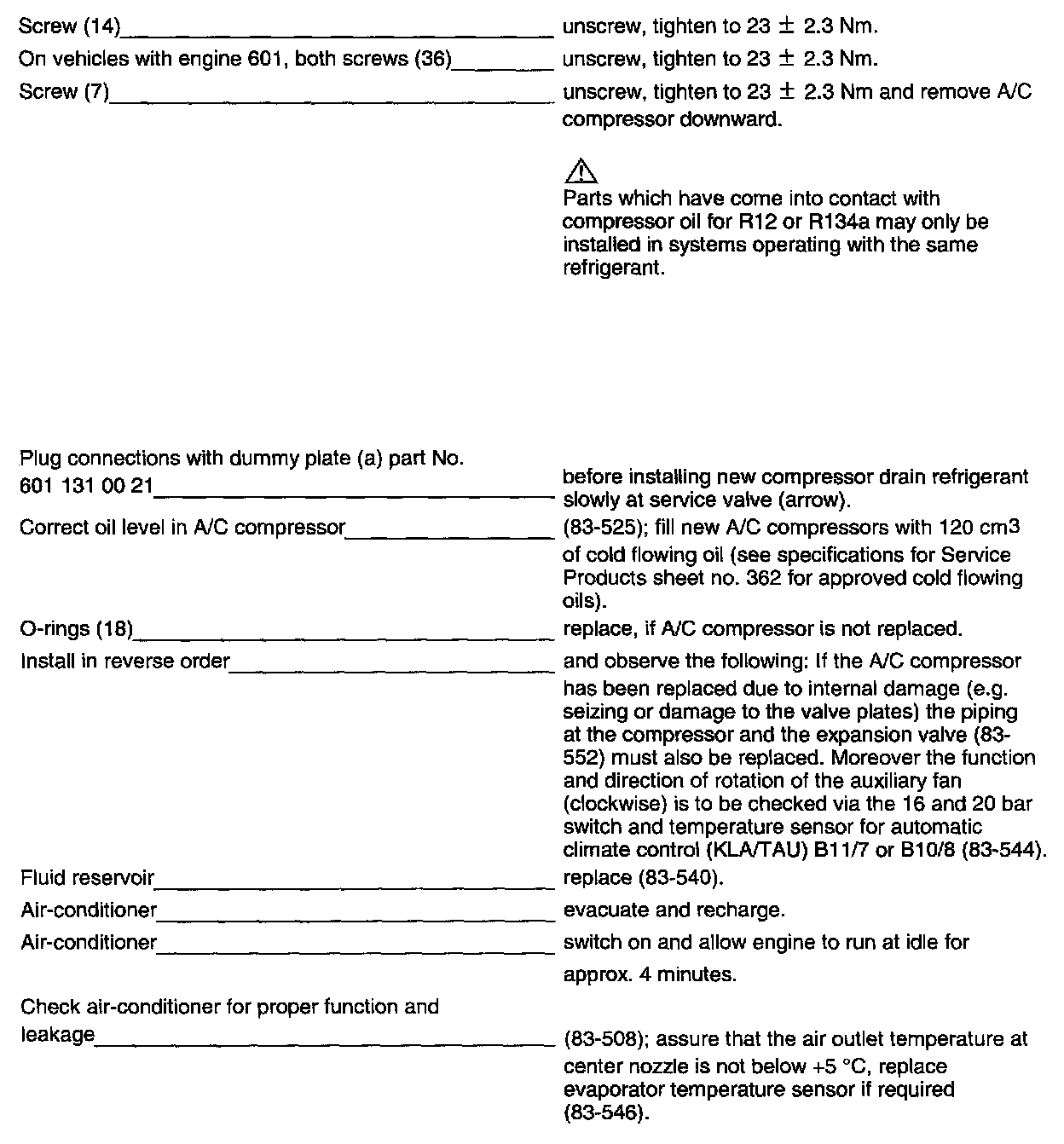

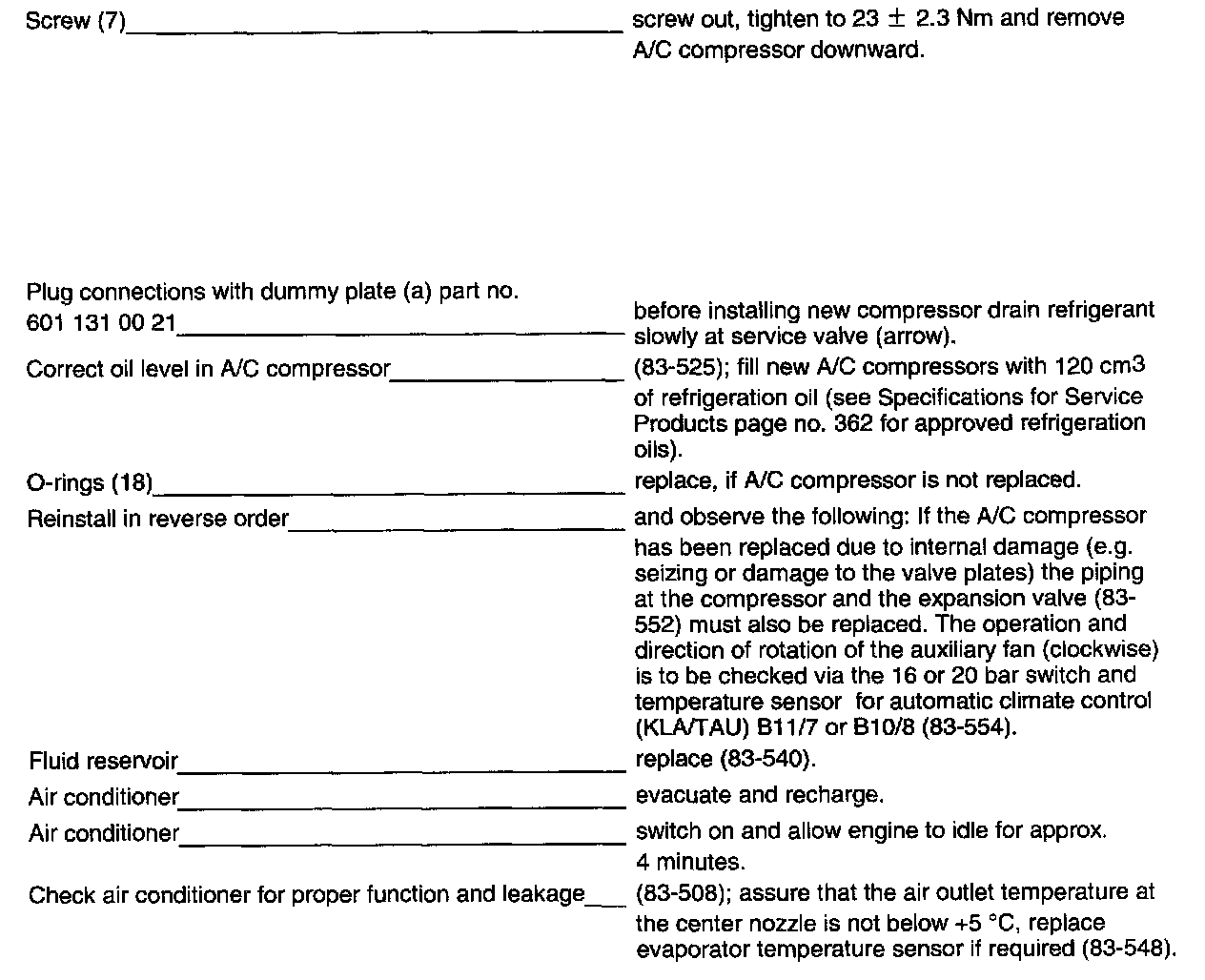

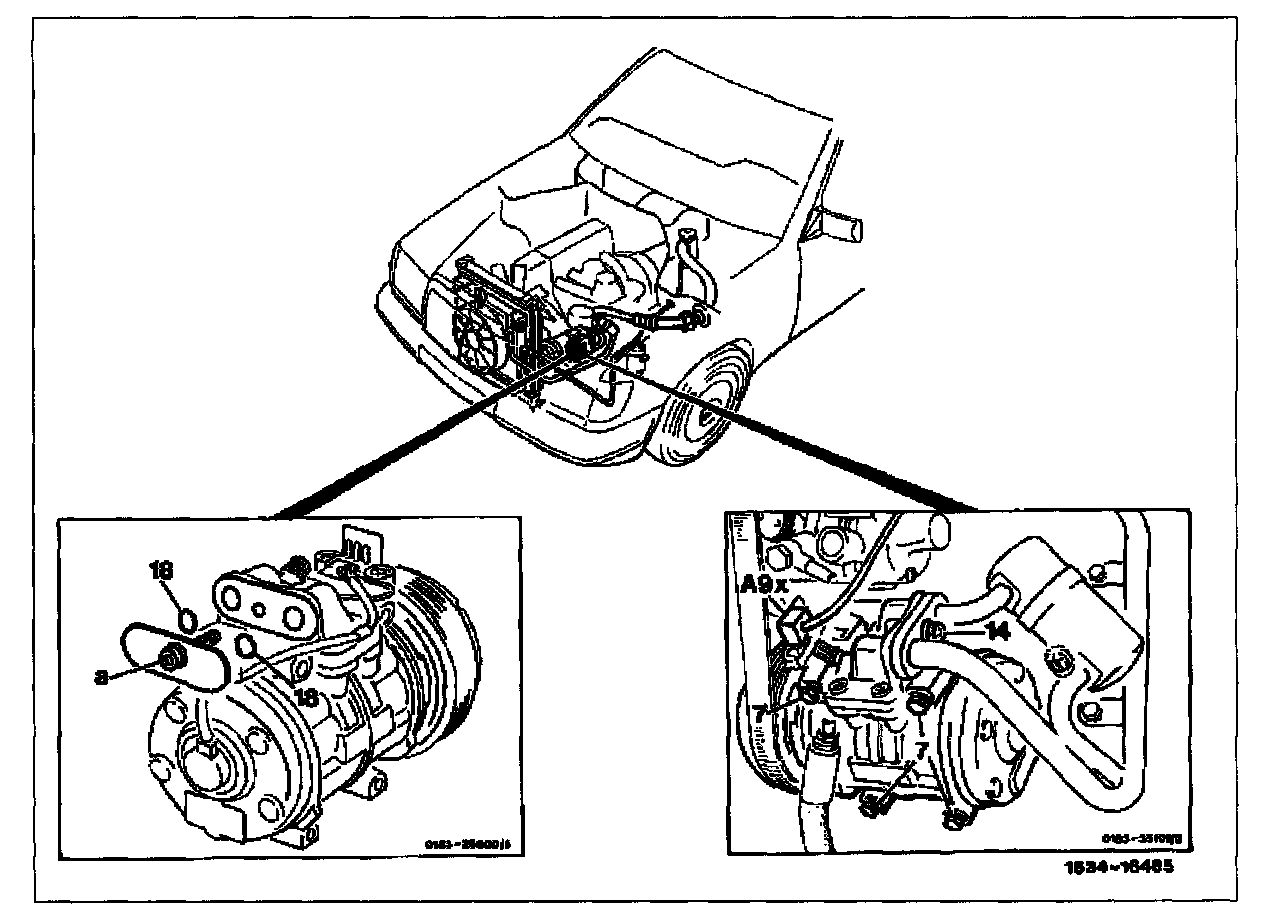

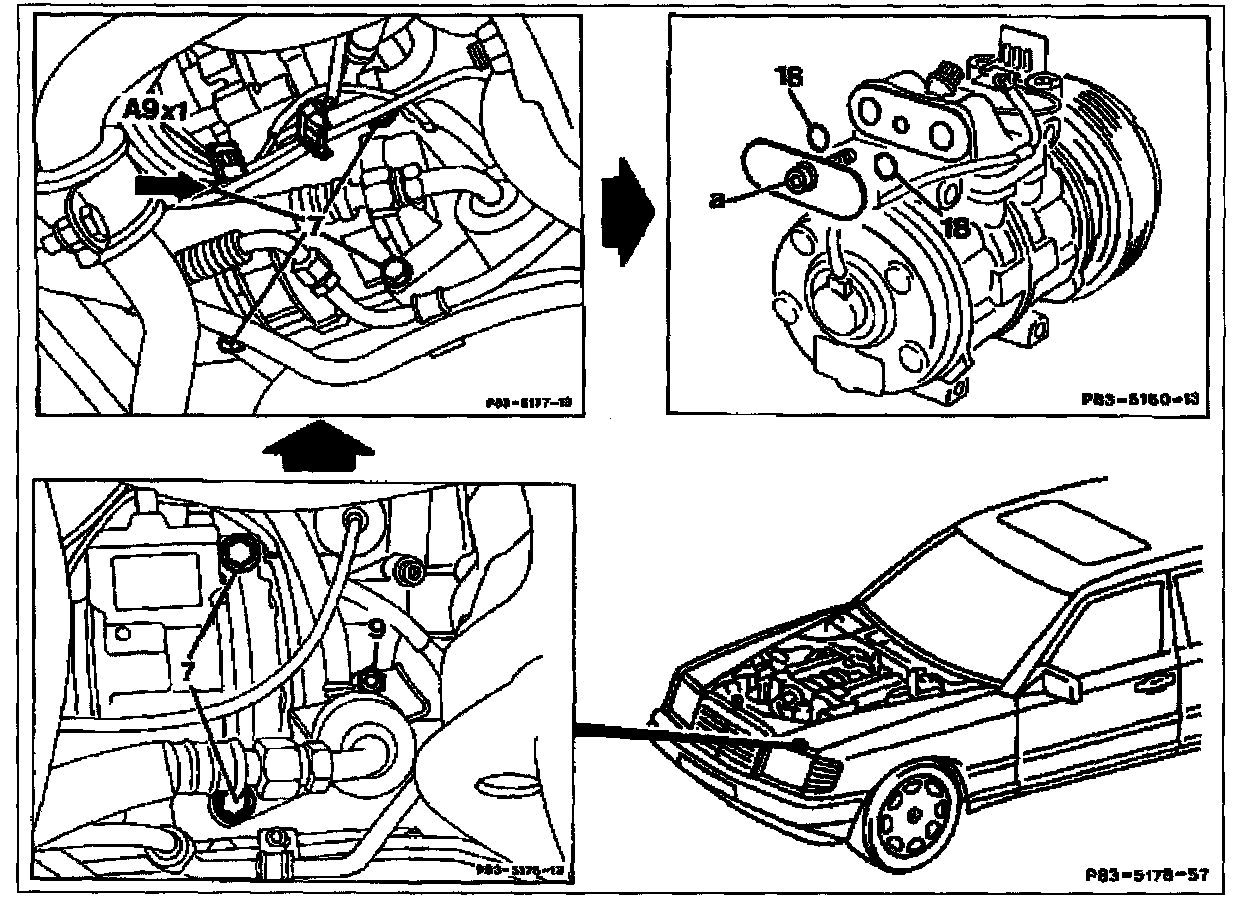

Removal and installation of A/C compressor A. Engine 102 B. Engines 103 and 104 Caution! Parts which have come into contact with compressor oil for R12 or R134a may only be installed in systems operating with the same
refrigerant.

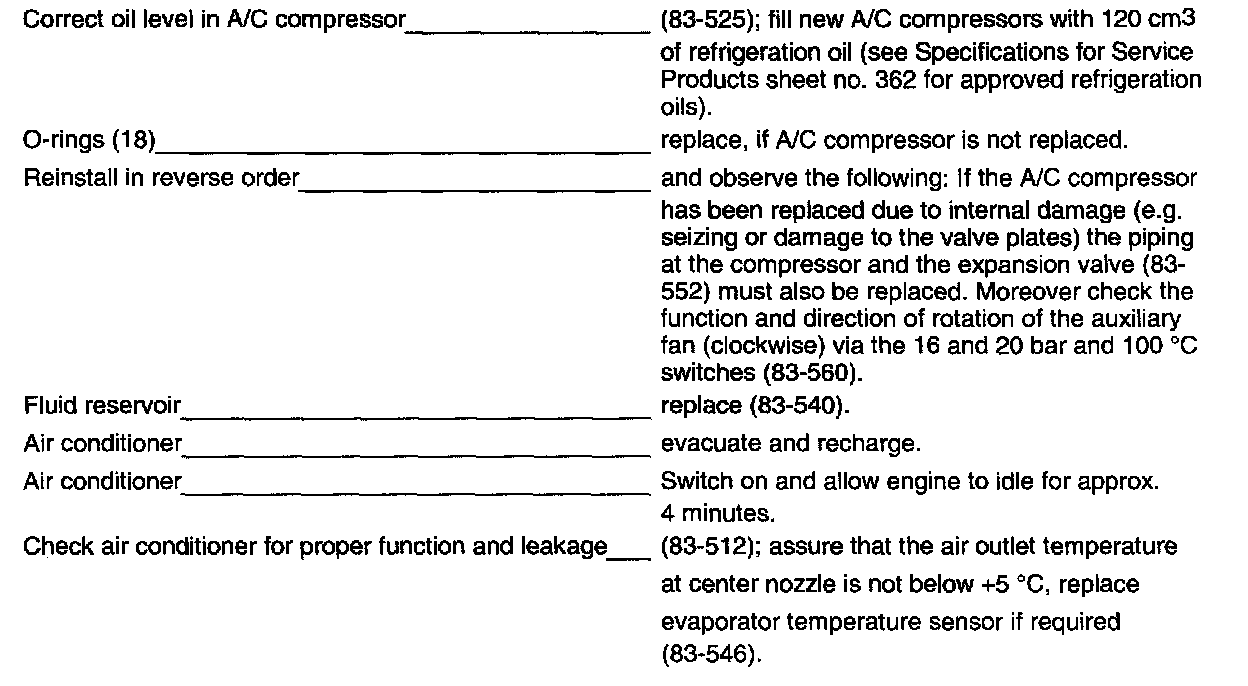

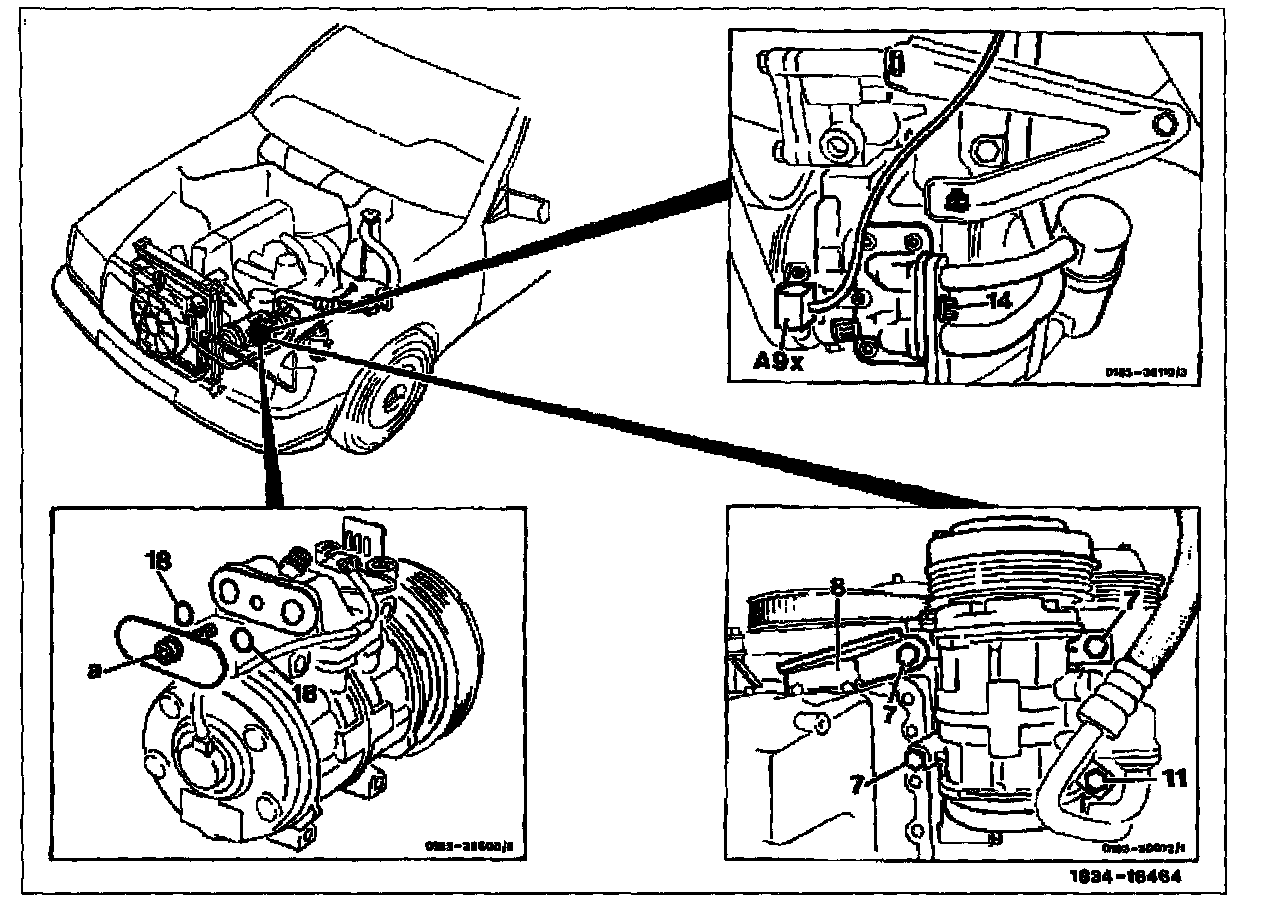

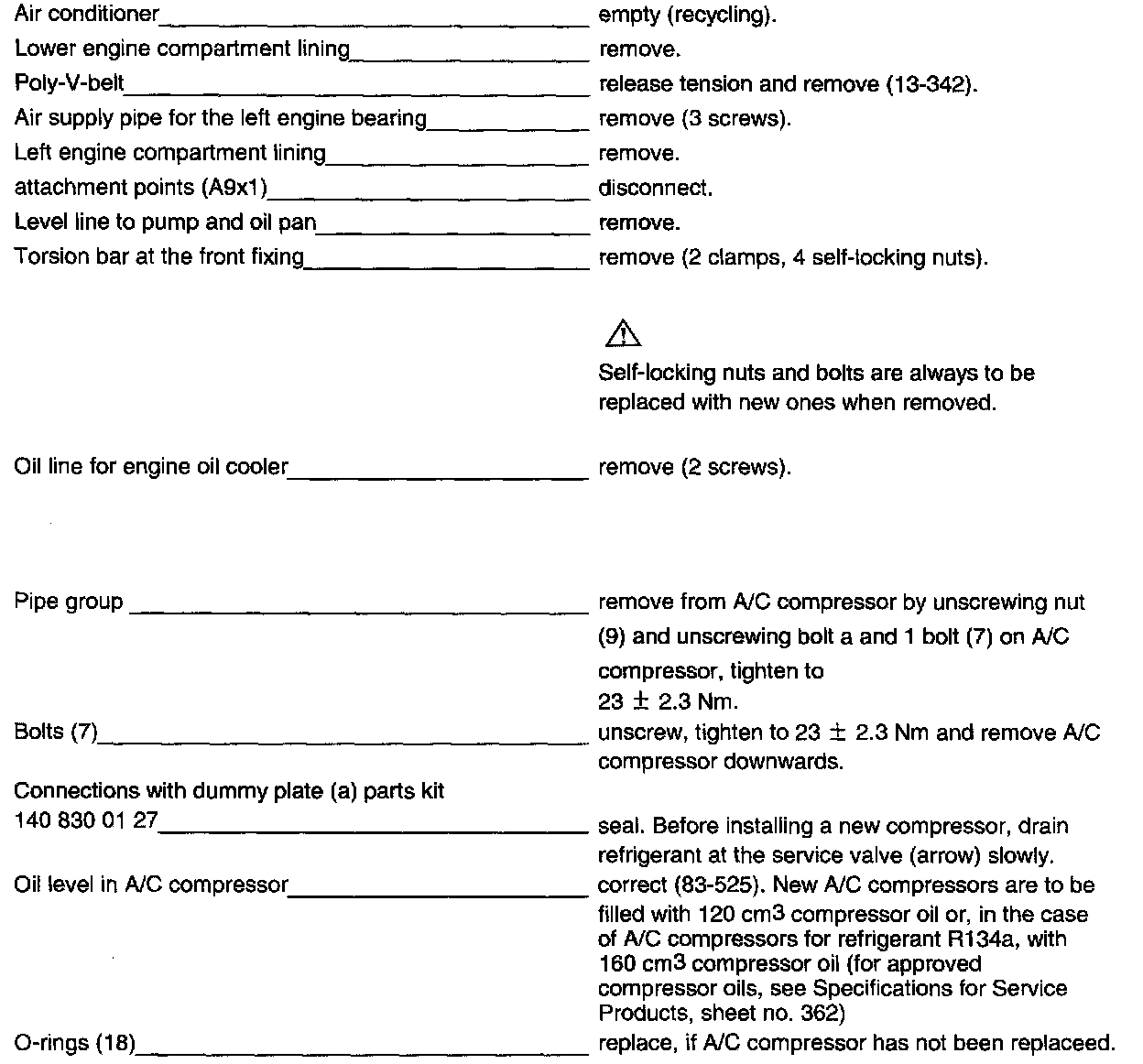

C. Engine 119 D. Engines 601, 602 and 603
