Control Assembly: Service and Repair

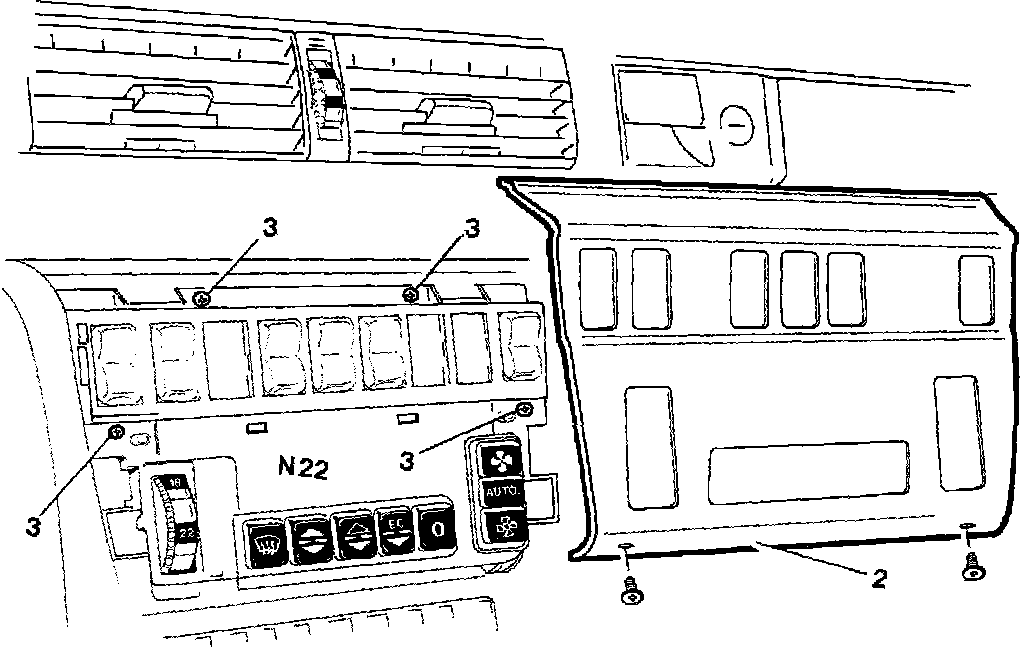

Automatic Climate Control R&R:
Cover (2)
Remove
Screws (3)
Unscrew
Control Unit (N22)
Pull out and disconnect both couplings
In reverse order
Install
Installation InstructionBefore pressing on the two couplings, check all sleeves for proper contact, correct by bending if required.
