IRCL Control Module

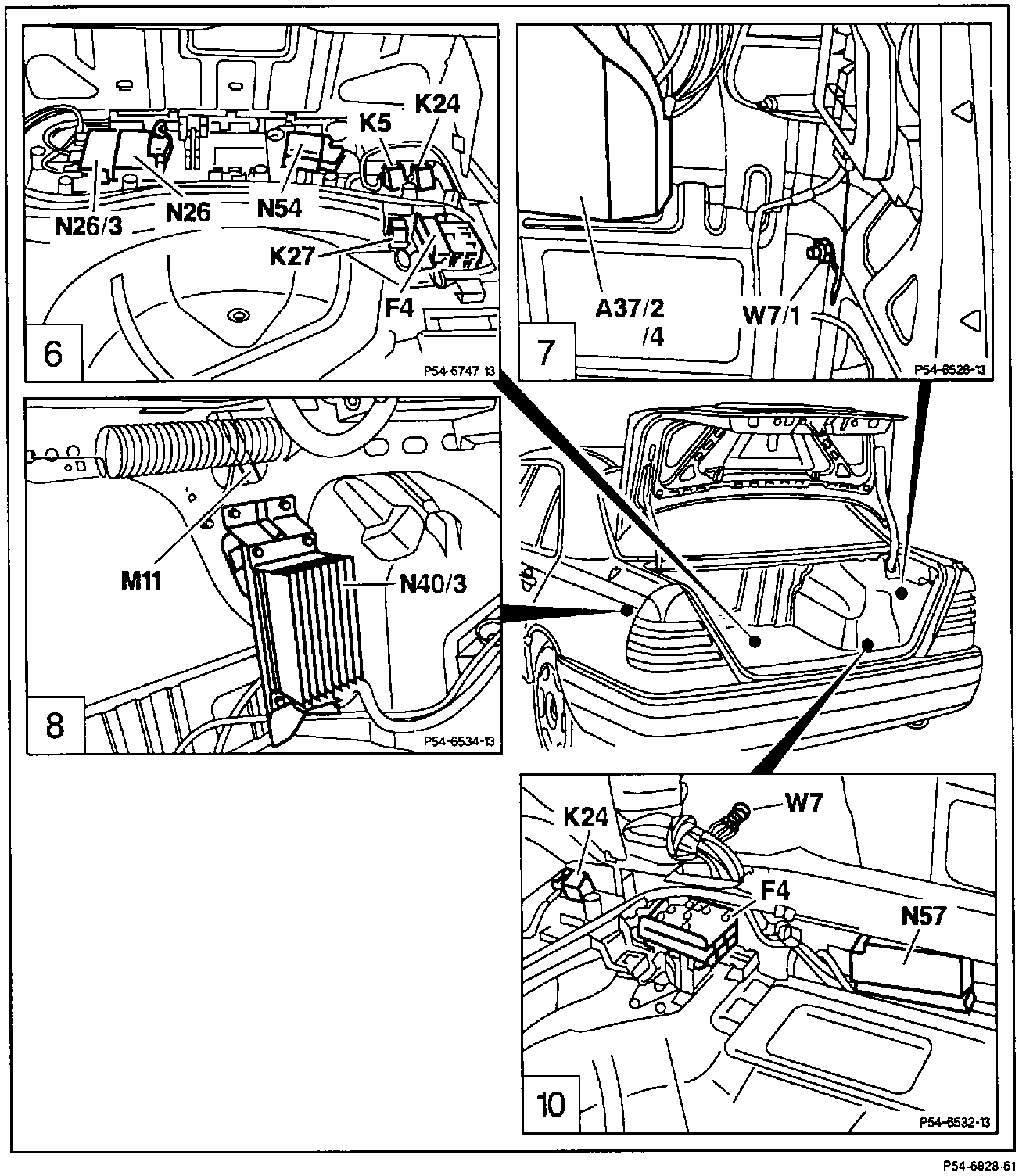

Figure 5:
Figure 6
Component Name IRCL control module
Component ID N54
Component ID Component NameA37/2
PSE control module (CL)
A37/4
PSE control module (CL, MVA)
K5
Power seat relay module (USA)
K24
CF relay module
K27
FP relay module
N26
ATA control module
N40/3
Left/right audio power amplifier
N54
IRCL control module
N57
CF control module (power windows, sliding/pop-up roof)
