Component Locations - Section 21

NOTE: There are 2 versions of the PSE control module (A37/4, A37/5), which are supplied based on the options supplied with the vehicle. The 2 versions have distinctively colored housing bases:

PSE Control Module Housing base color
A37/4 (CL, MVA) Grey
A37/5 (CL, MVA, OSB) Ivory

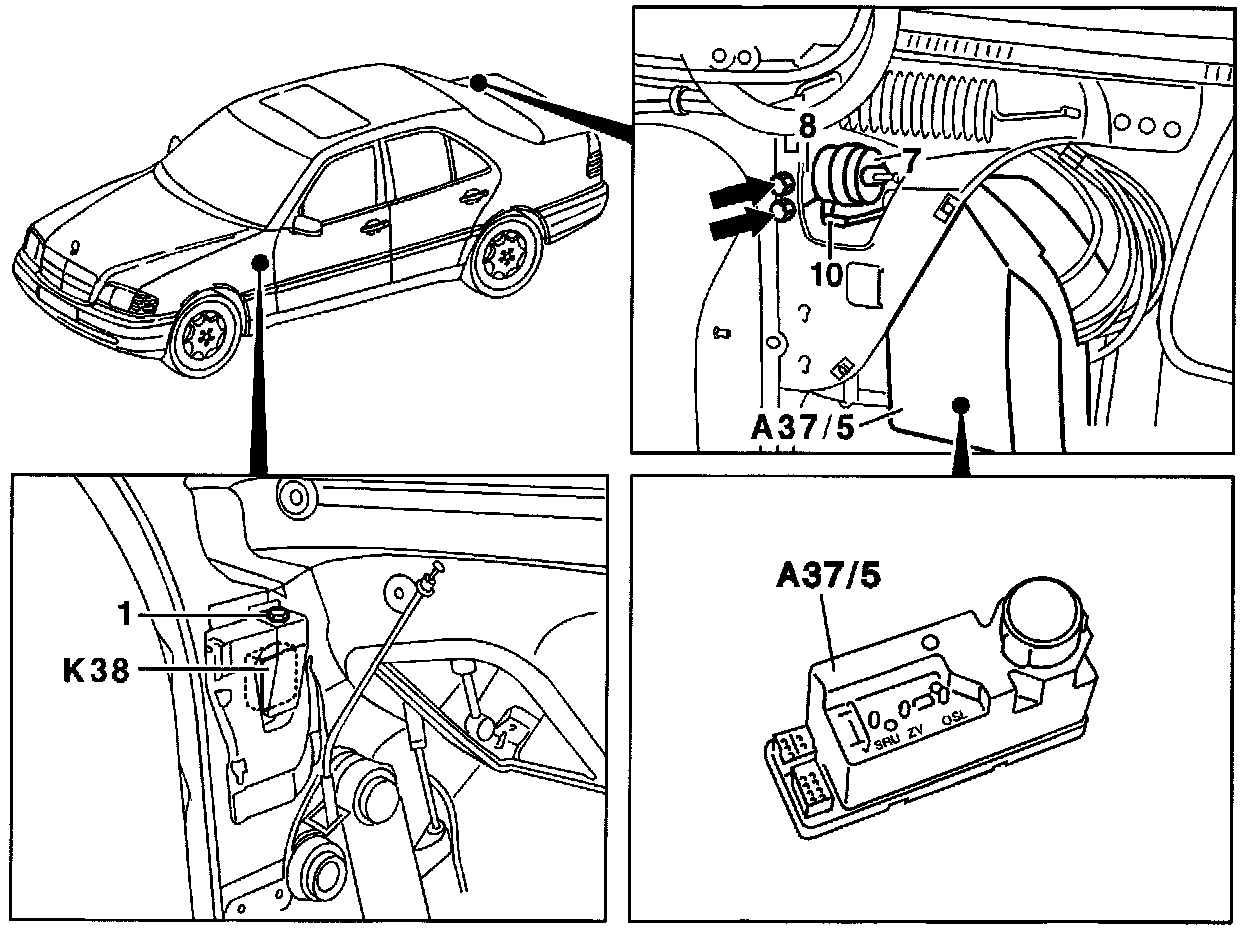

Figure 1
A37/5 PSE control module (CL, OSB, MVA)
K38 Starter lock-out relay module
(vehicles as of production start up and up to MY 1996)
