Test Steps - Section 23

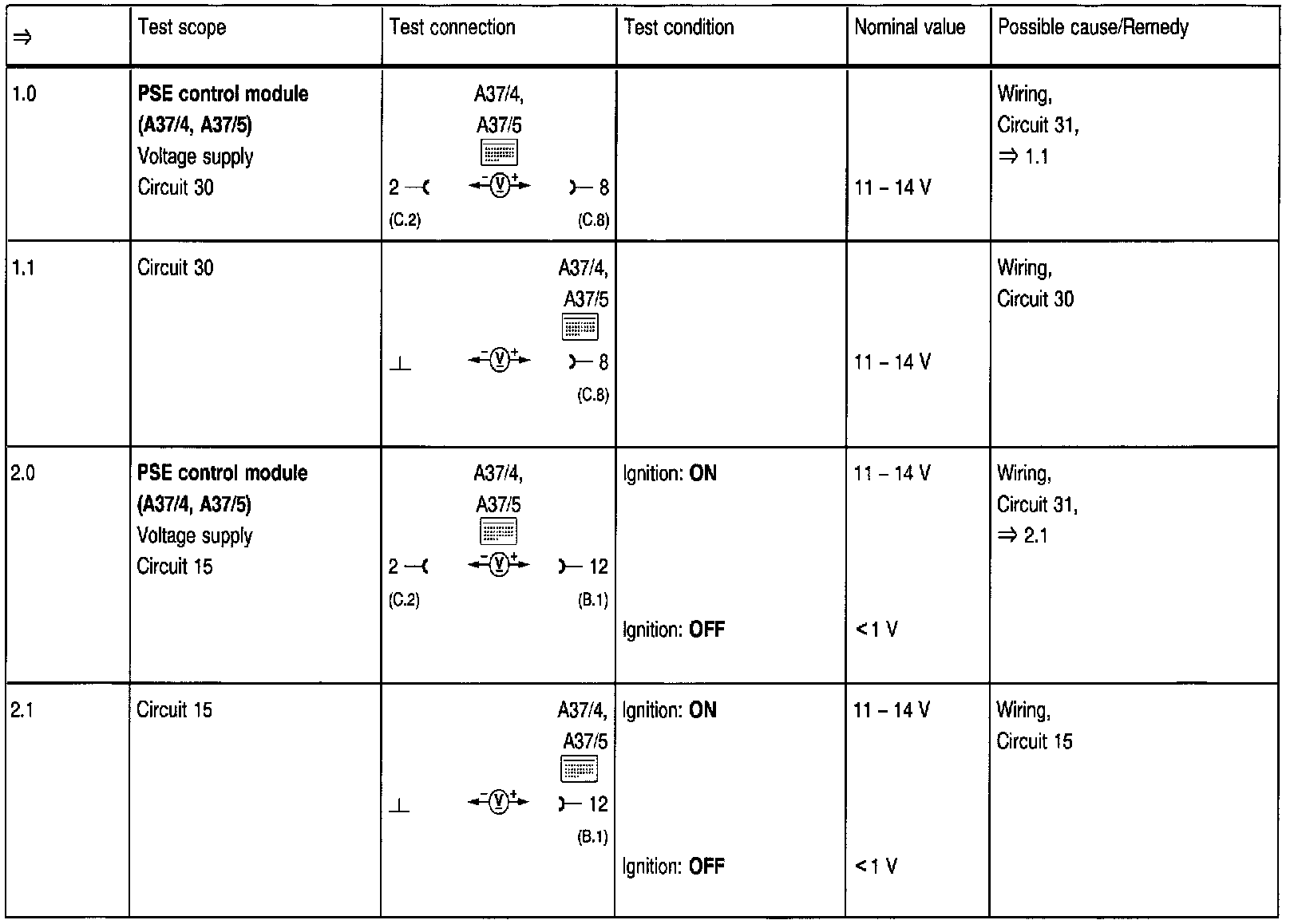

Test Steps 1.0 - 2.1:

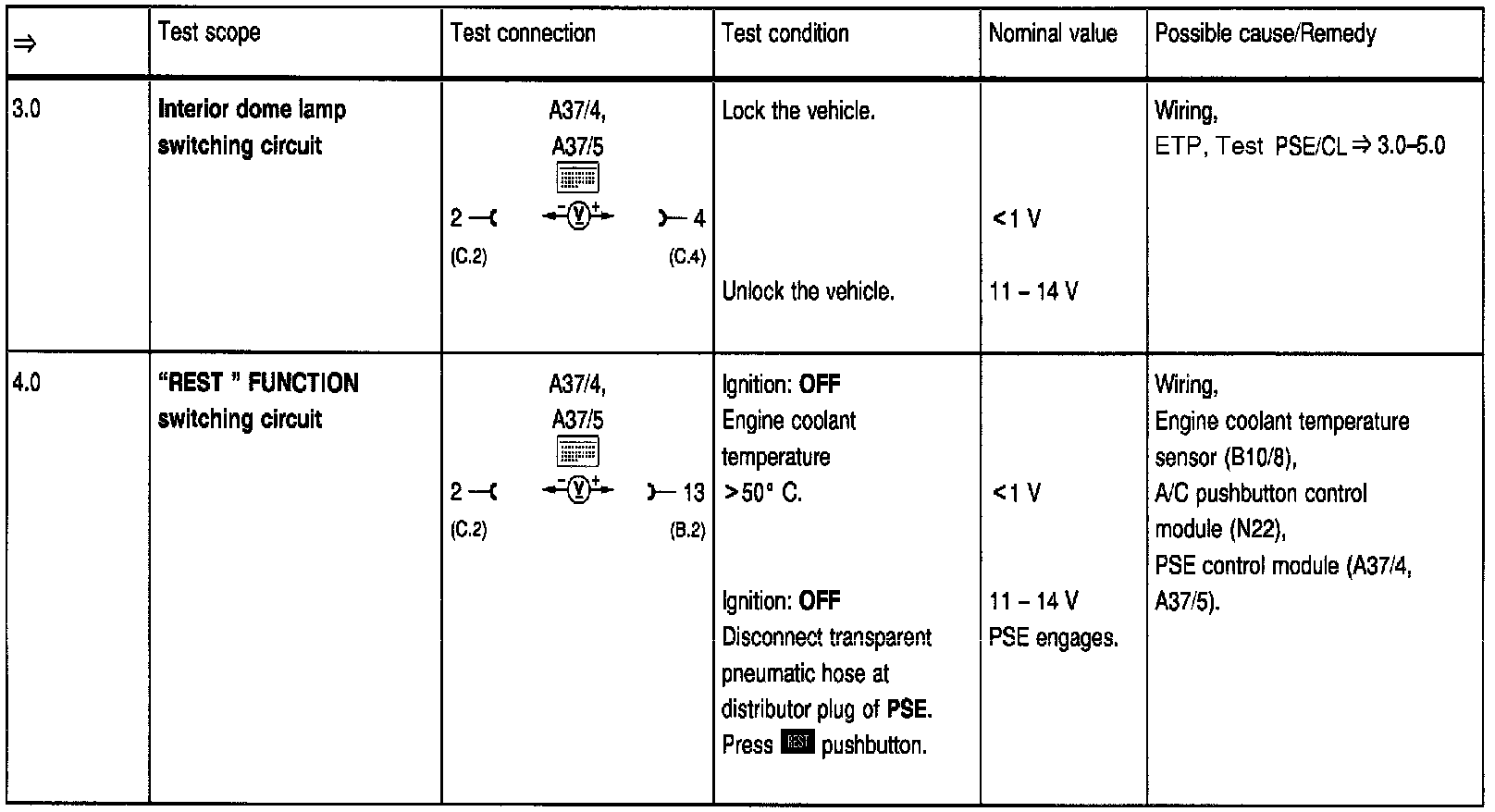

Test Steps 3.0 - 4.0:

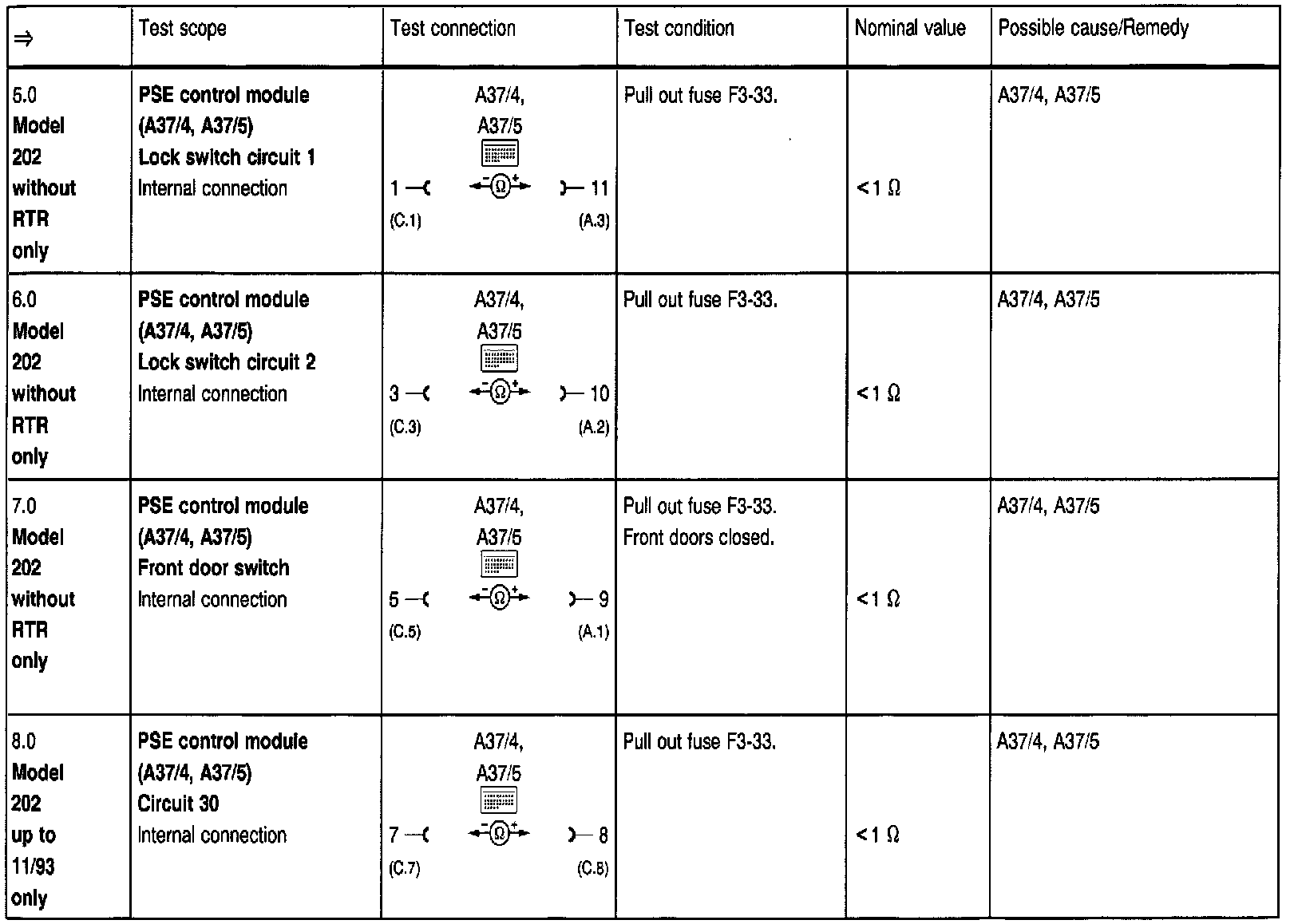

Test Steps 5.0 - 8.0:





Test Step 9.0:






Figure 1:





W7 Ground (right wheelhousing in trunk)

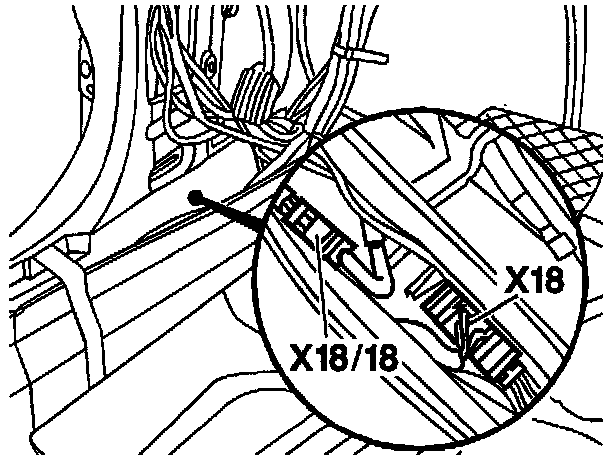

Figure 2:





X18 Interior/Taillamp harness connector
