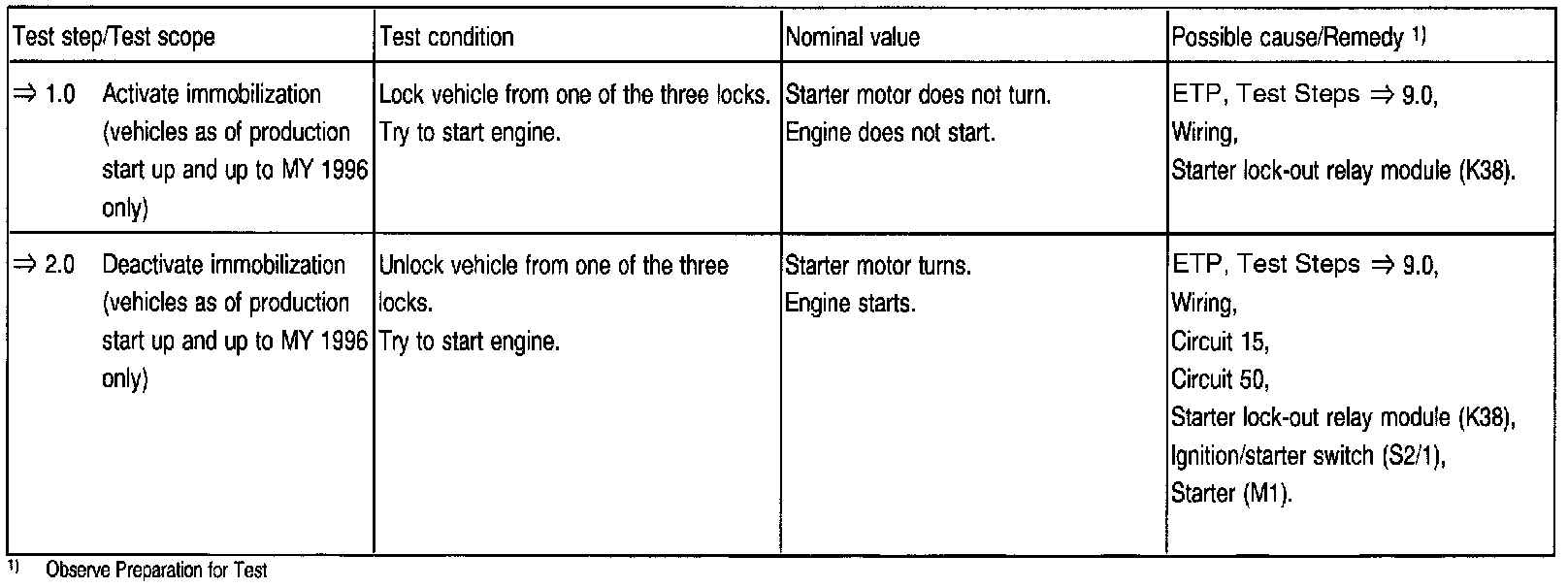

Function Test - Section 11
Preliminary work:
Diagnosis - Function Test PSE/CL
Component Locations

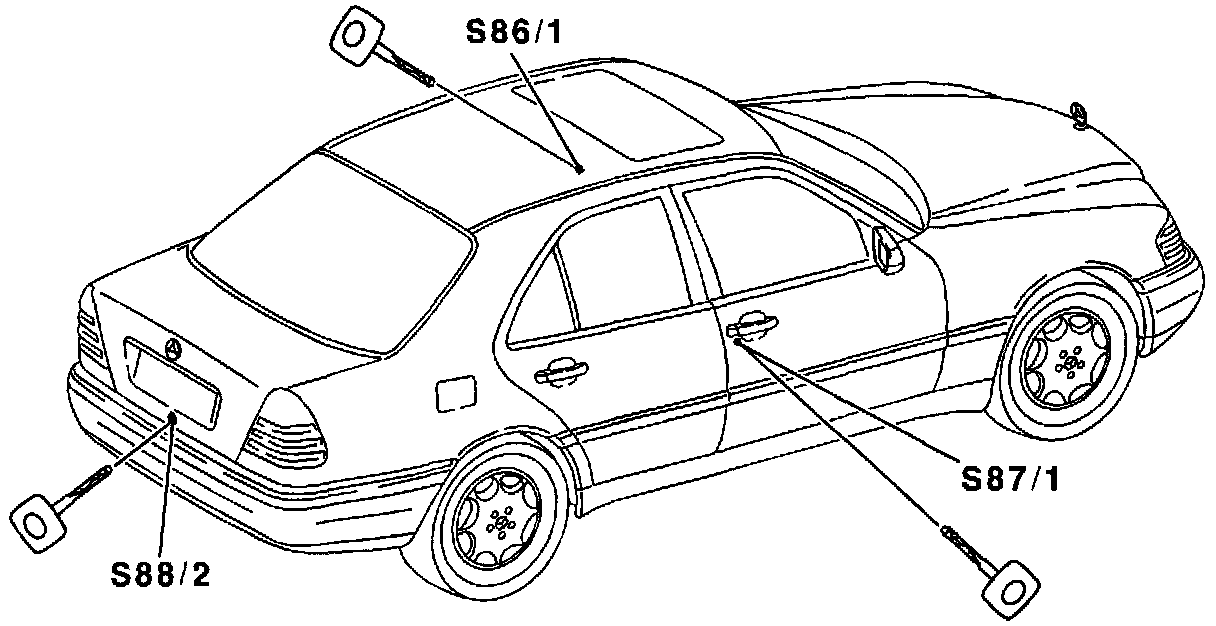

Figure 1:
S86/1 Left front door lock switch
S87/1 Right front door lock switch
S88/2 Trunk lid lock switch

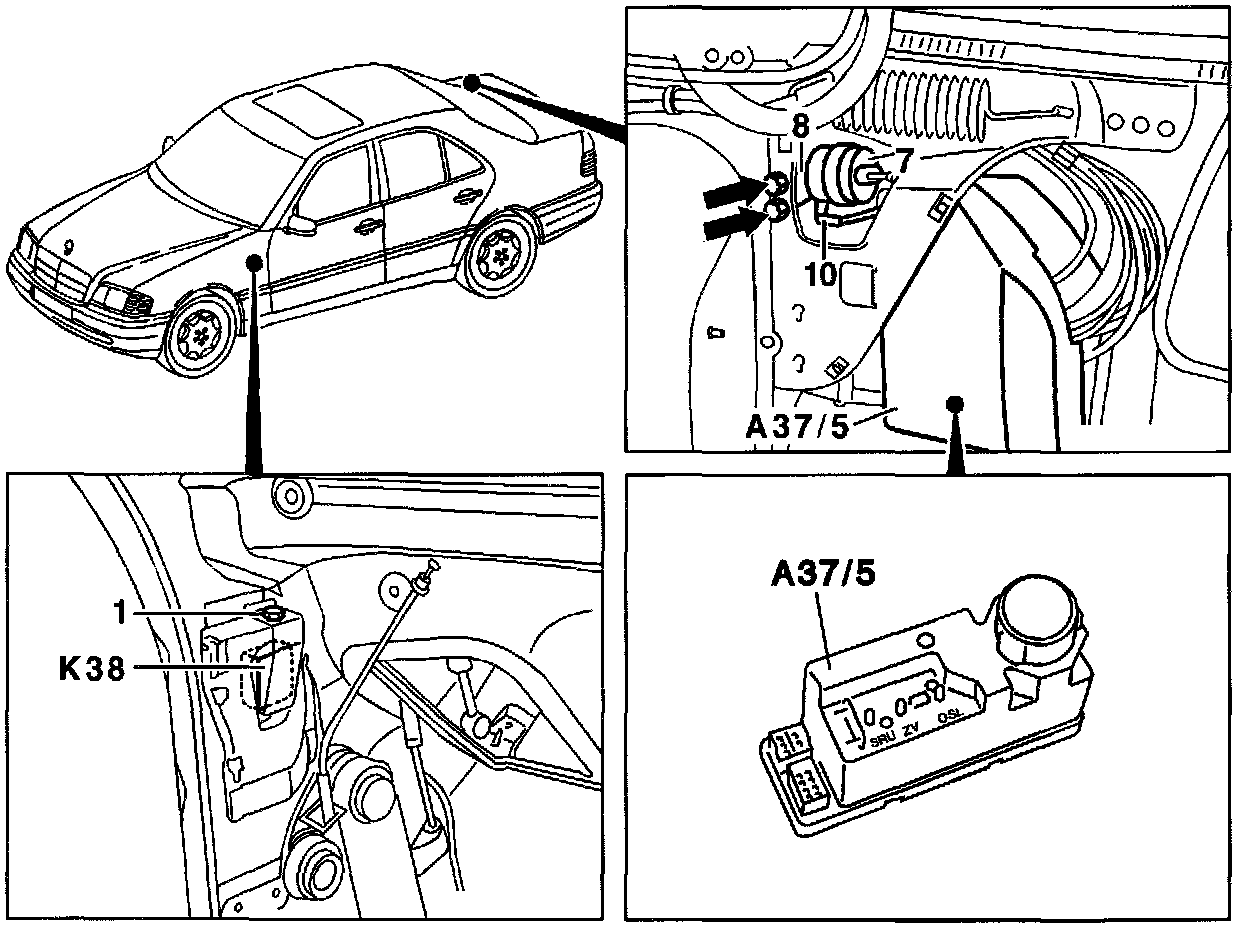

Figure 2:
A37/5 PSE control module
(CL, MVA, OSB)
K38 Starter lock-out relay module (vehicles as of 01/94 only)
Preparation for Function Test
1. Model 202 up to 11/94: Check fuses F3-33 and F3-35 OK,
2. Model 202 as of 12/94: Check fuses F1-24 and F1-27 OK,
3. Battery voltage 11 - 14 V.
4. Vehicle unlocked.
5. All doors and trunk lid closed.
6. Left front door window open.
