Relay Module

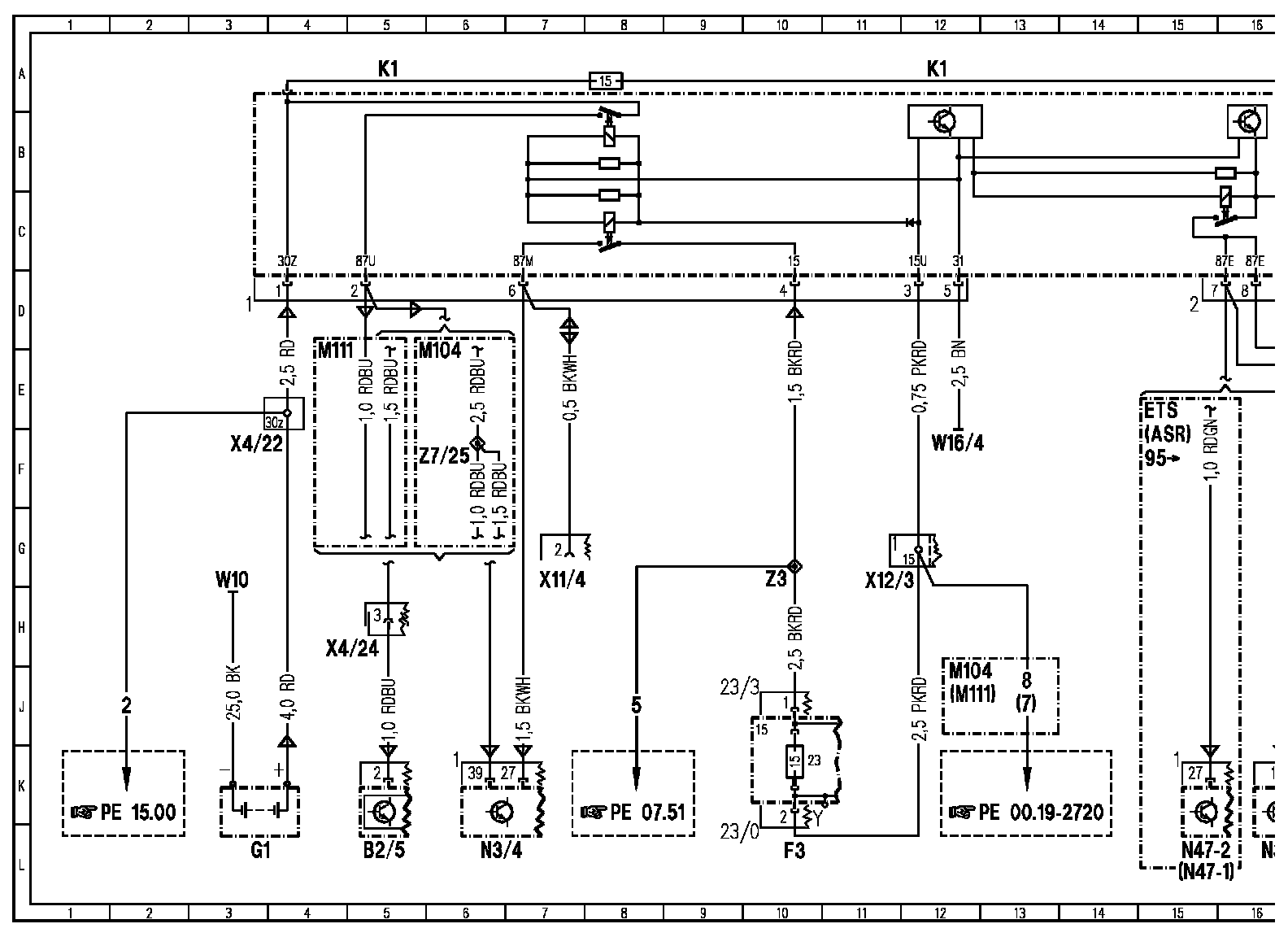

Overvoltage Protection Relay Module PE54.20-U-2001WAWiring Diagram, Part 1:

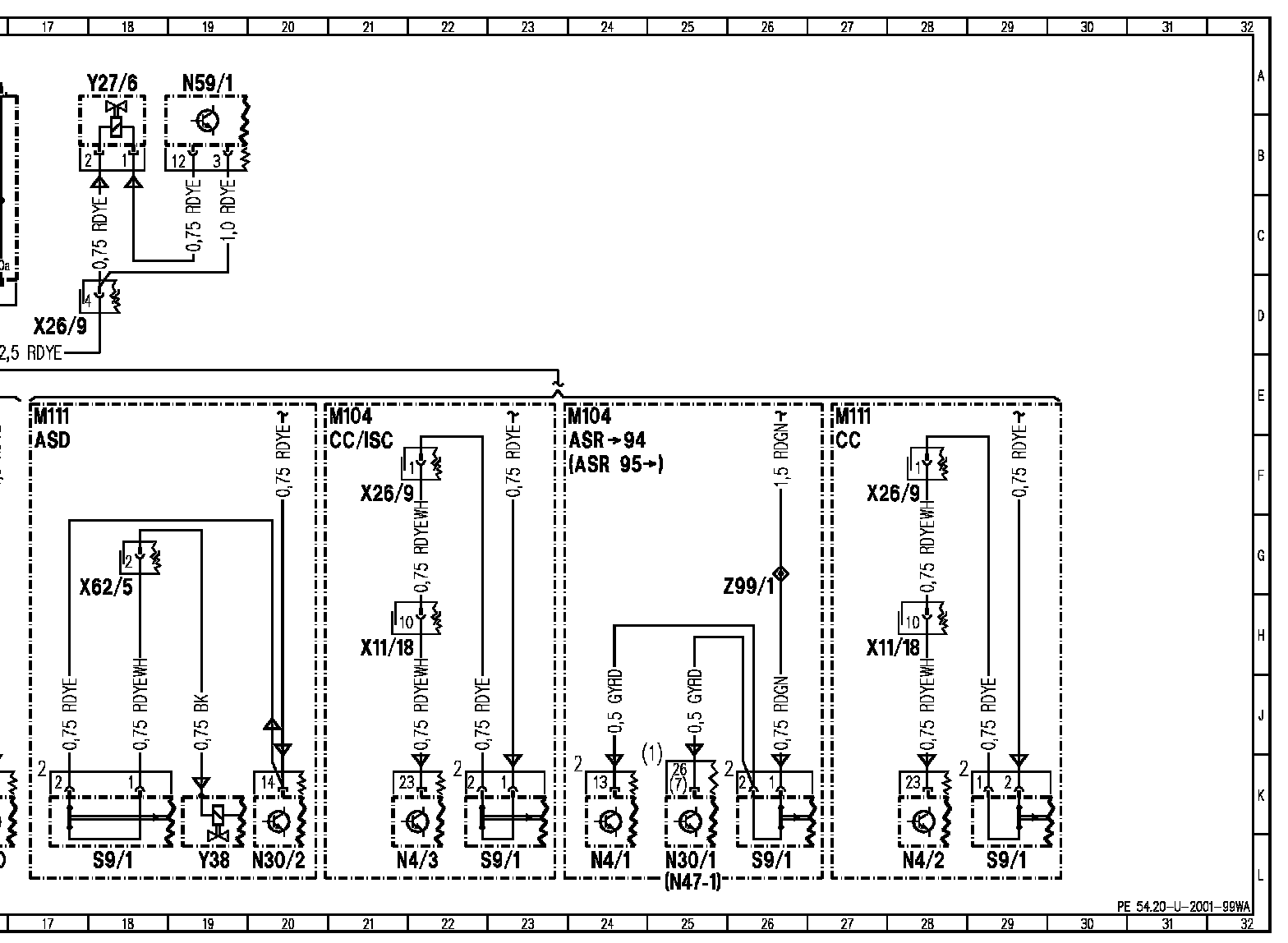

Wiring Diagram, Part 2:

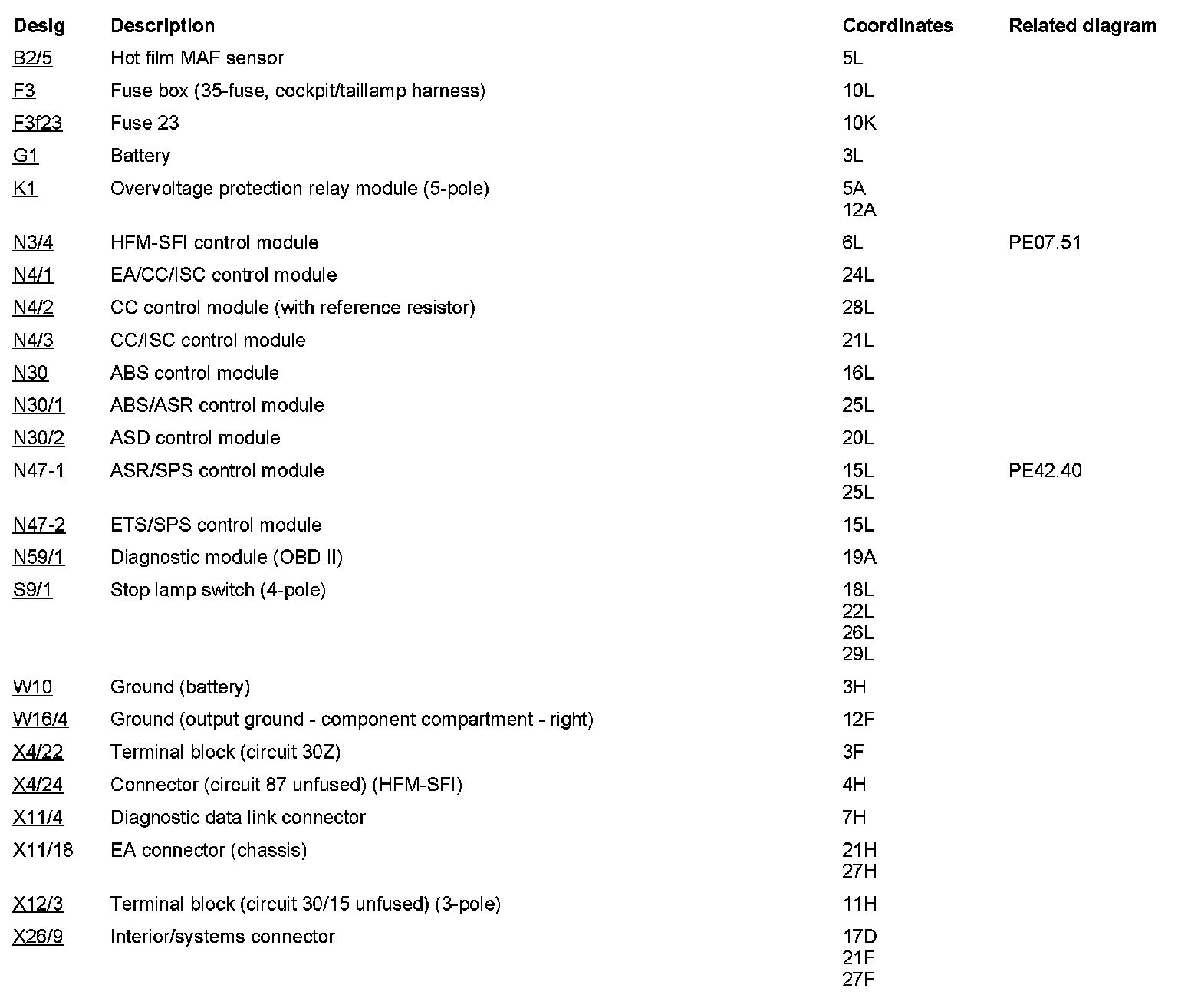

Component Description/Coordinates, B2/5 To X26/9:
Component Description/Coordinates, X62/5 To U120:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
