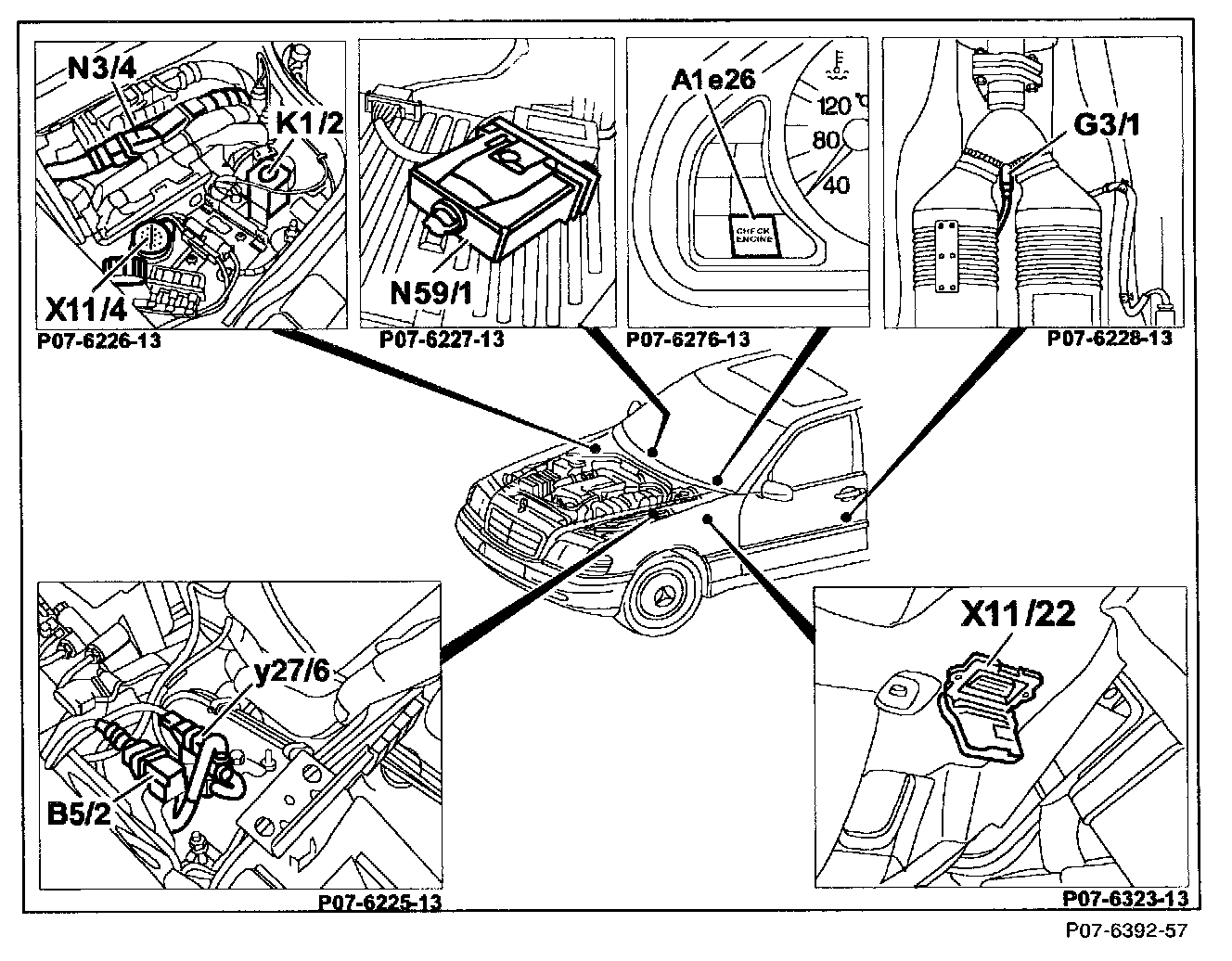

DM Related Components
A1e26
"CHECK ENGINE" MIL
B5/2
DM pressure sensor (HFM-SFI)
G3/1
O2S 2 (after TWC)
K1/2
Overvoltage protection relay module (9-pole)
N3/4
Engine control module (HFM-SFI)
N59/1
Diagnostic module (OBD II)
X11/4
Data link connector (DTC readout)
X11/22
Diagnostic module (OBD II) generic scan tool connector
Y27/6
Purge flow switchover valve
Y58/1
Purge control valve
