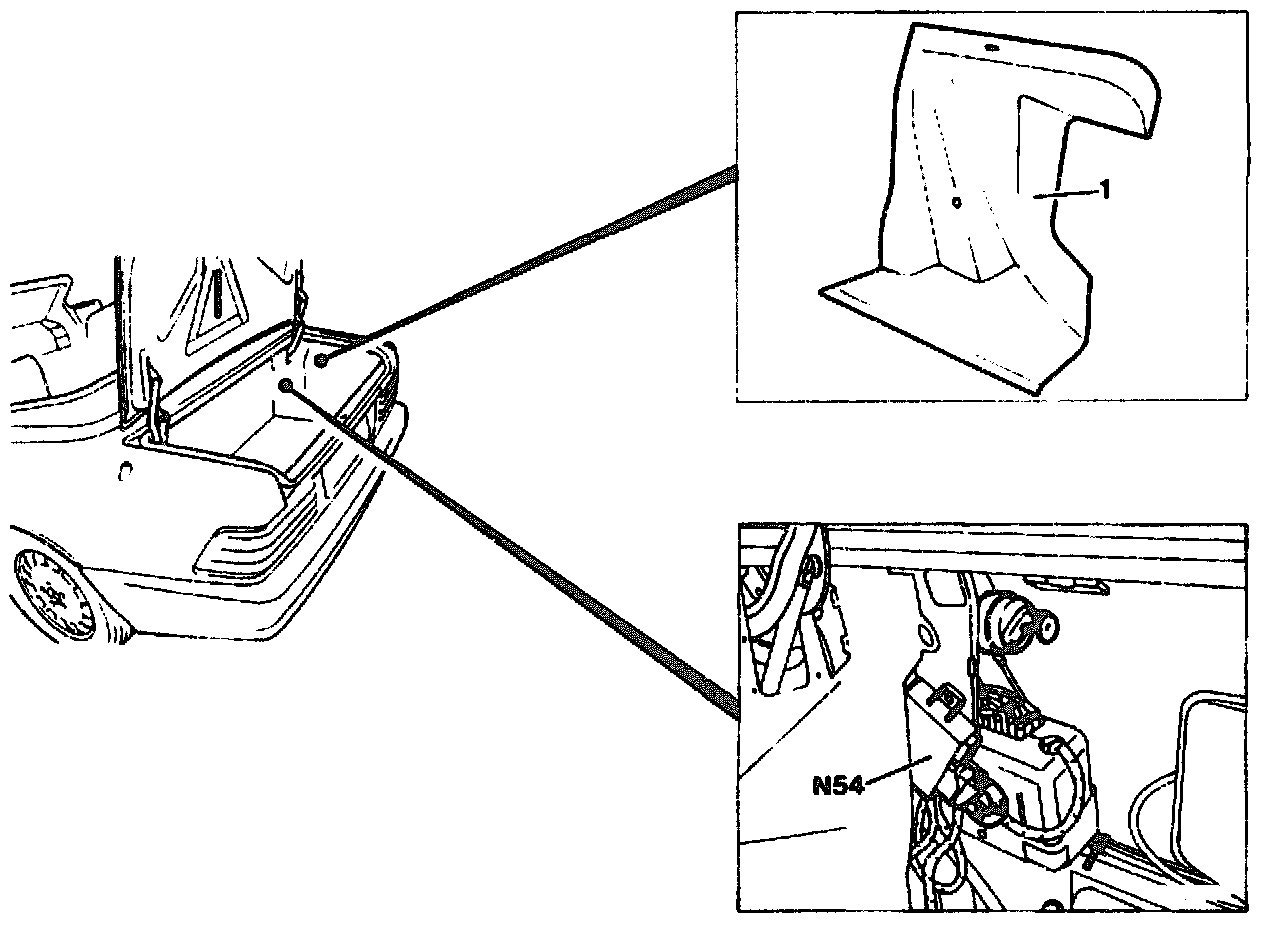

Keyless Entry Module: Service and Repair
Panelling (1) on the right of luggage
compartment
Remove, install.
Electric connector
Disconnect, connect.
Self-tapping screw
Unscrew, tighten.
Control module (N54)
Remove, replace.
NOTE: When replacing the control module or the remote control key always indicate the locking system number, because the two parts are matched to one another.
