91-840 Remove/Install Roll-Over Bar Crash Actuated Trigger Module

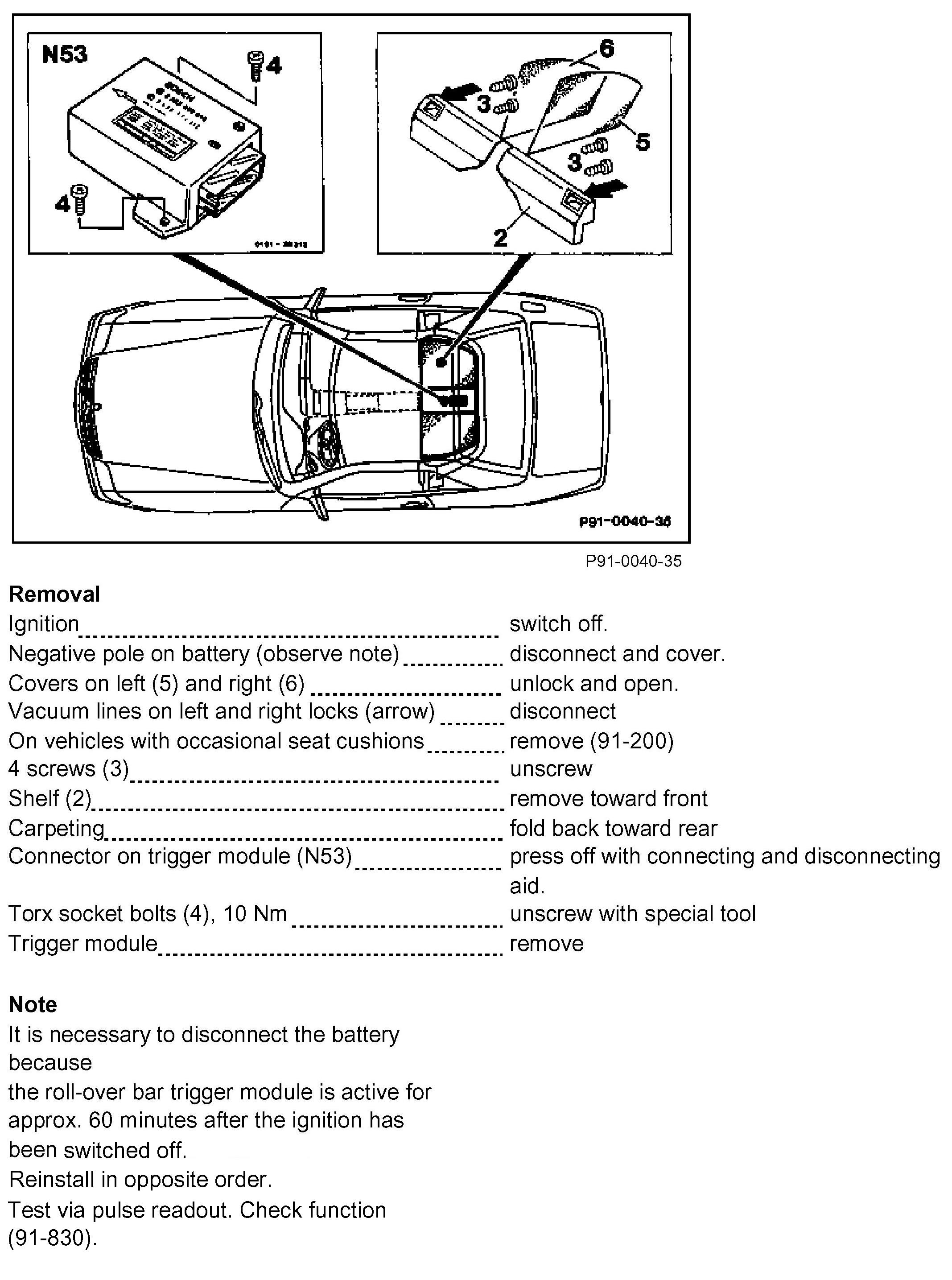

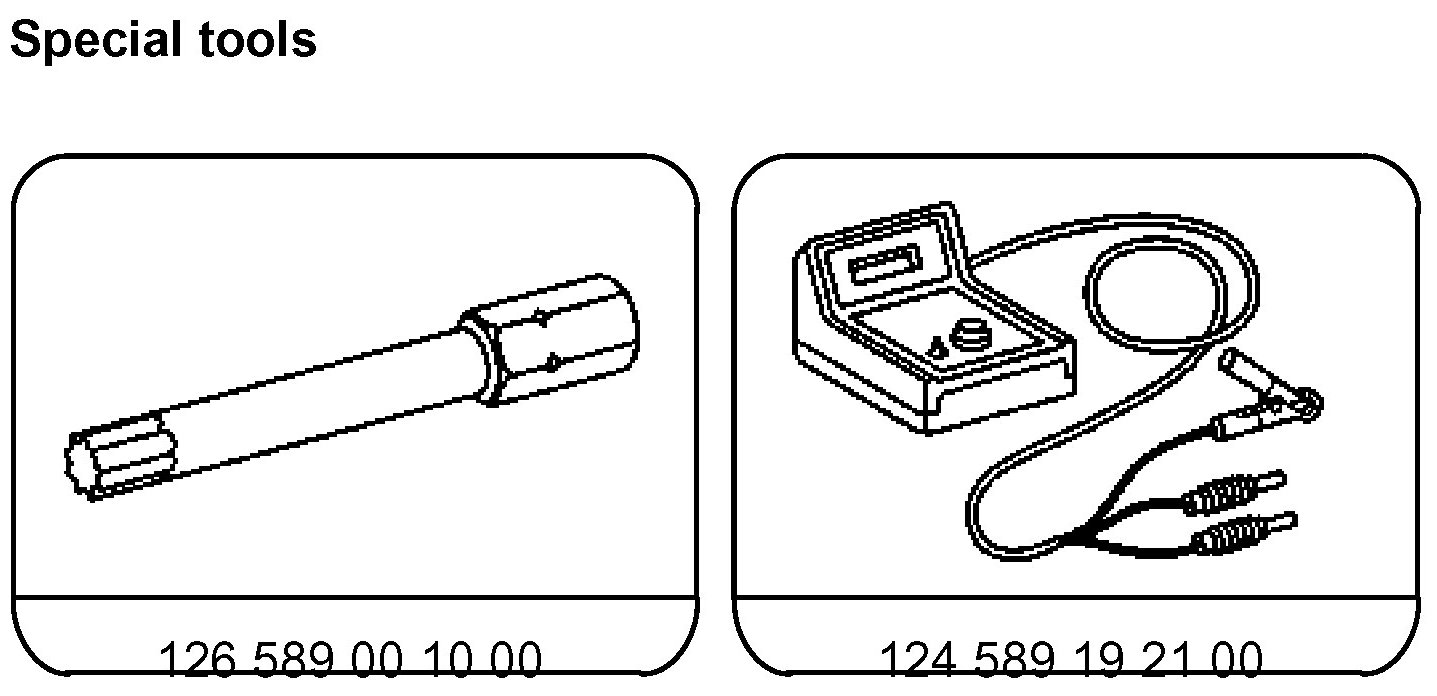

91-840 Removing And Installing Roll-over Bar Crash Actuated Trigger ModuleSpecial Tools:
Commercially Available Tools:
Testing up to 05/95After replacing the trigger module the system must be checked via pulse readout.

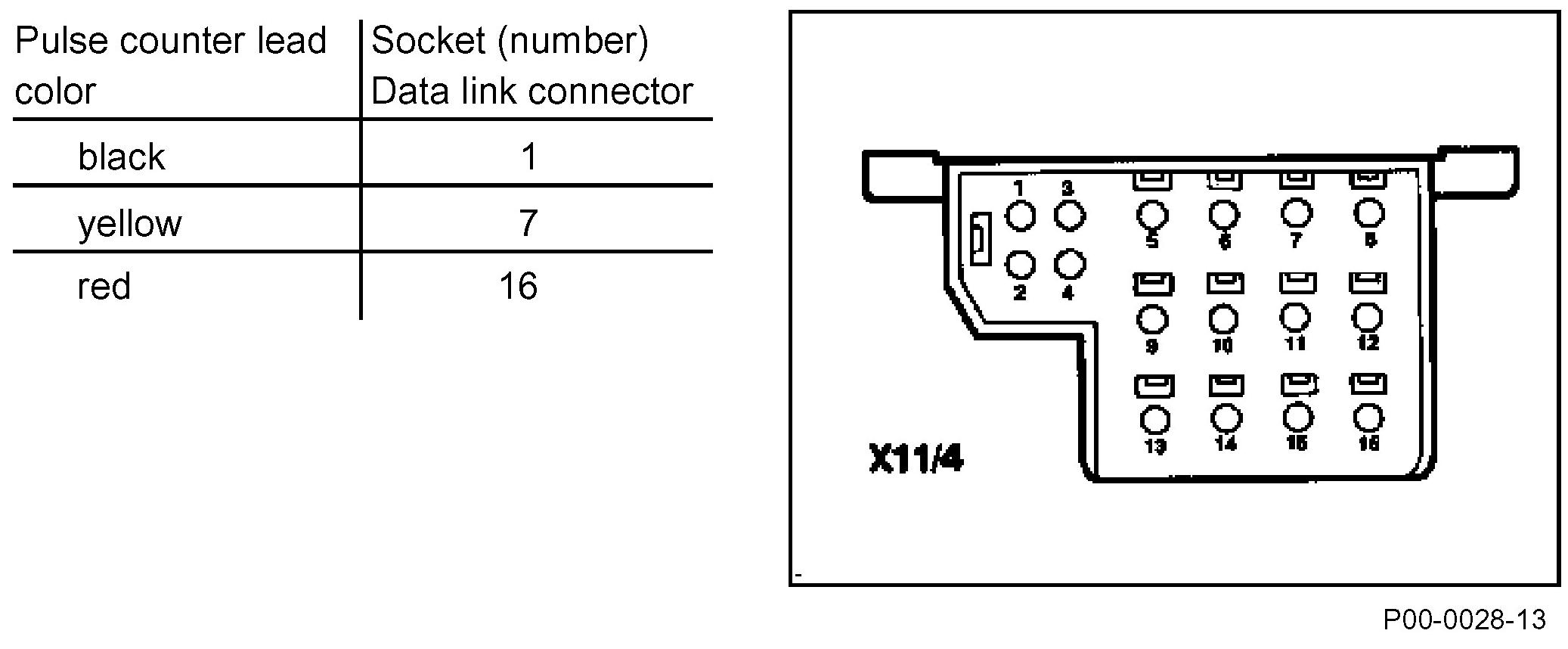

Connect pulse counter to 16-pin data link connector (X11/4) as follows:
