Center and Side Air Flap Control Module

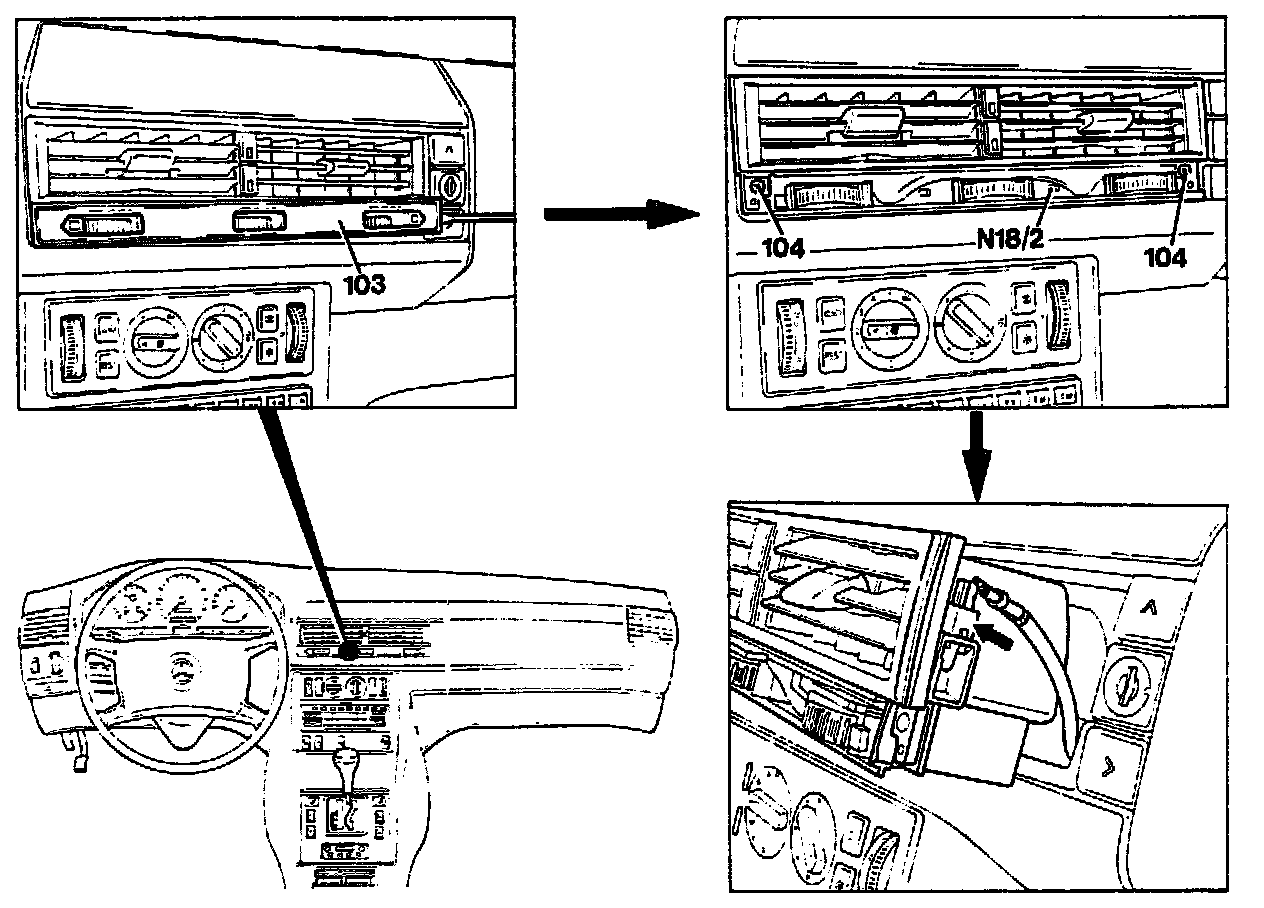

Cover of control system (103) at right side
withdraw.

Bolts (104)
unscrew and withdraw control system (N18/2).

Bulb base (arrow)
unclip.

Install
in reverse order.
