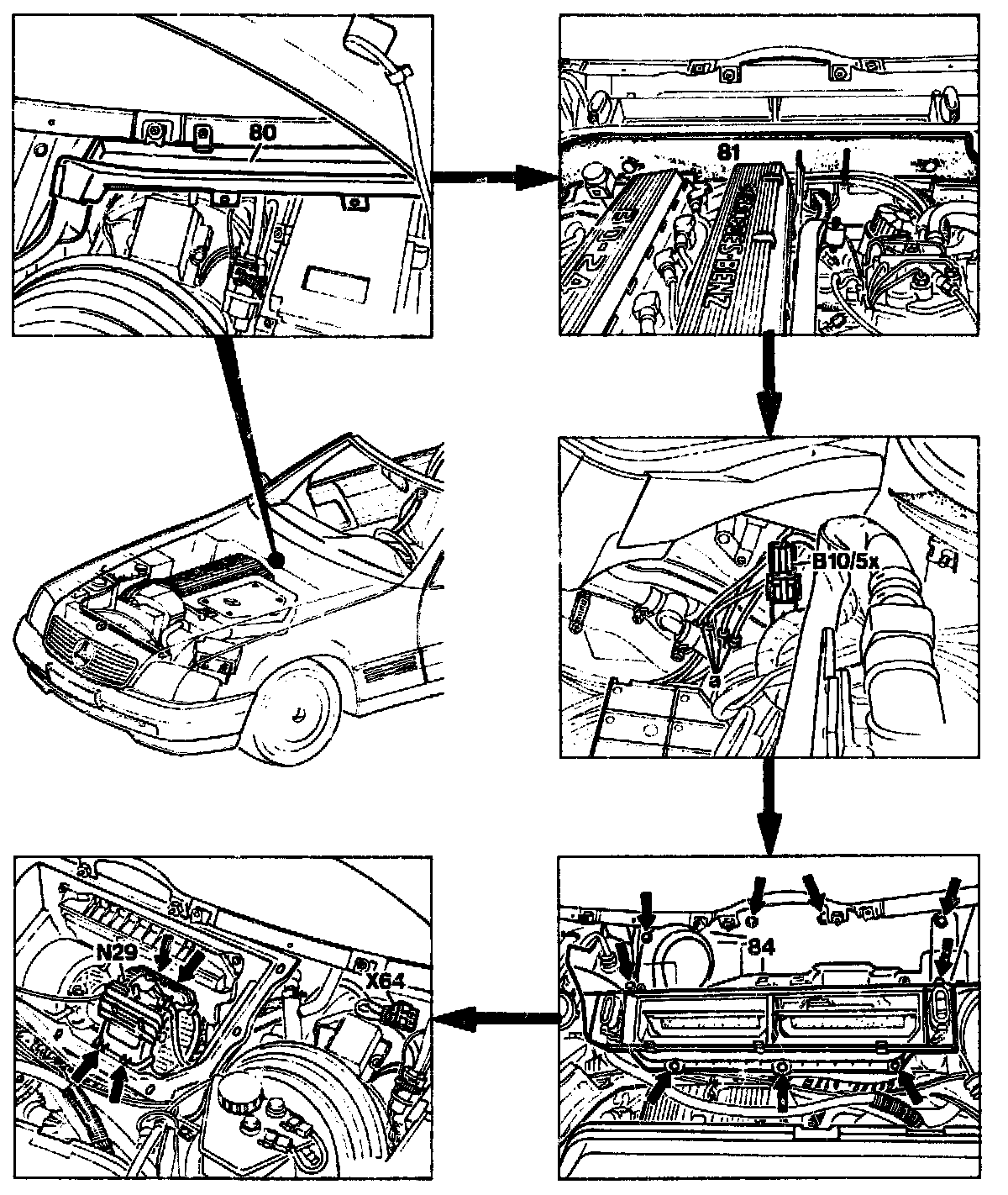

Electronic Blower Regulator (Blower Control)
Wiper system
remove.
Left and right water drain (80)
remove, 2 screws.
Center partition wall (81)
remove, 2 rivets, 2 screws.
Vacuum lines (a)
detach.
Housing (84)
remove, 8 screws, 1 rubber stopper.
Plug connection (X64)
disconnect.
4 clips (arrow)
unclip and take off blower controller (N29).
Install
in reverse order.
