CC/ISC - without ASR

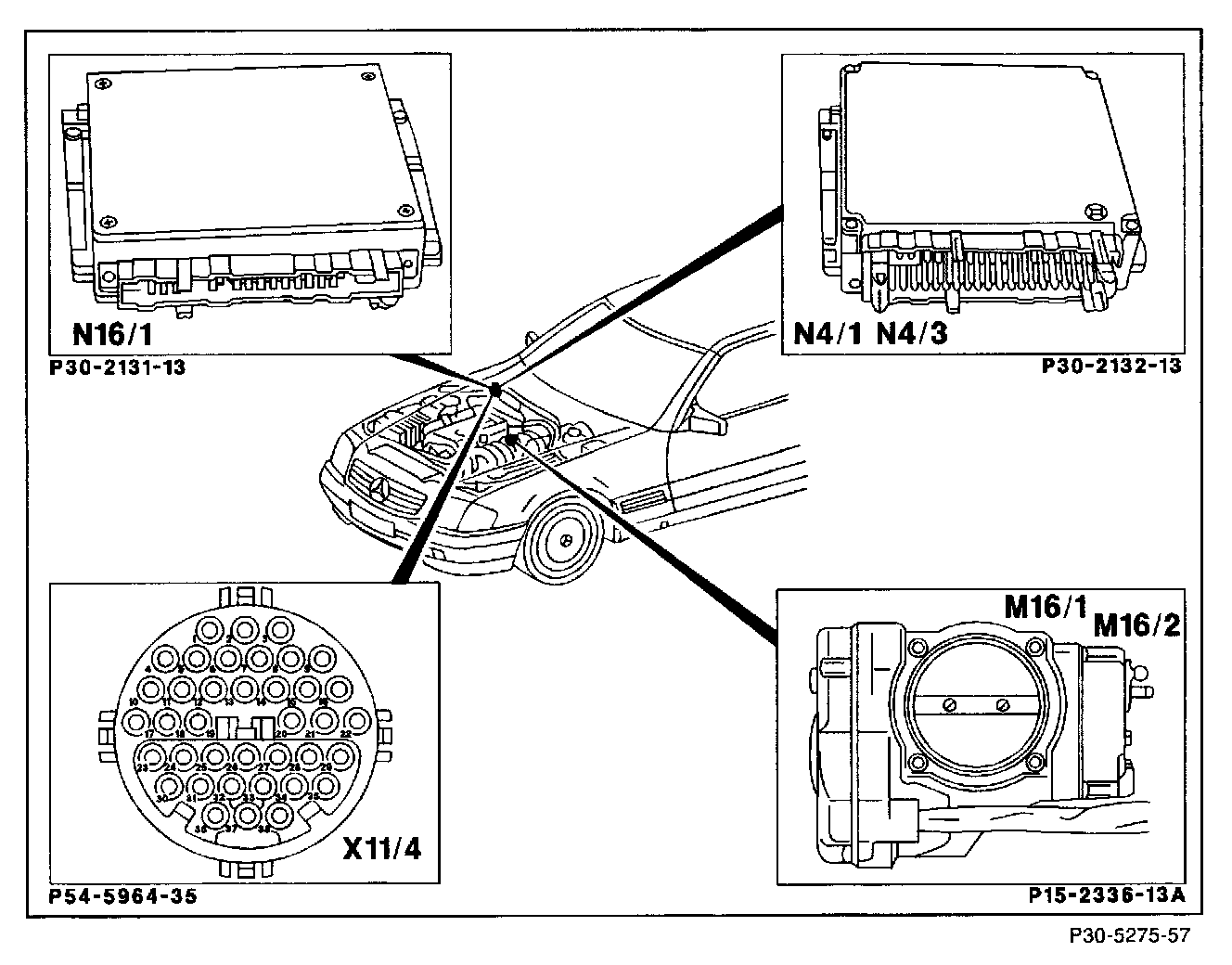

M16/2
CC/ISC actuator
N4/3
CC/ISC Control Module
N16/1
Base Module (BM)
X11/4
Data link connector (DTC readout)

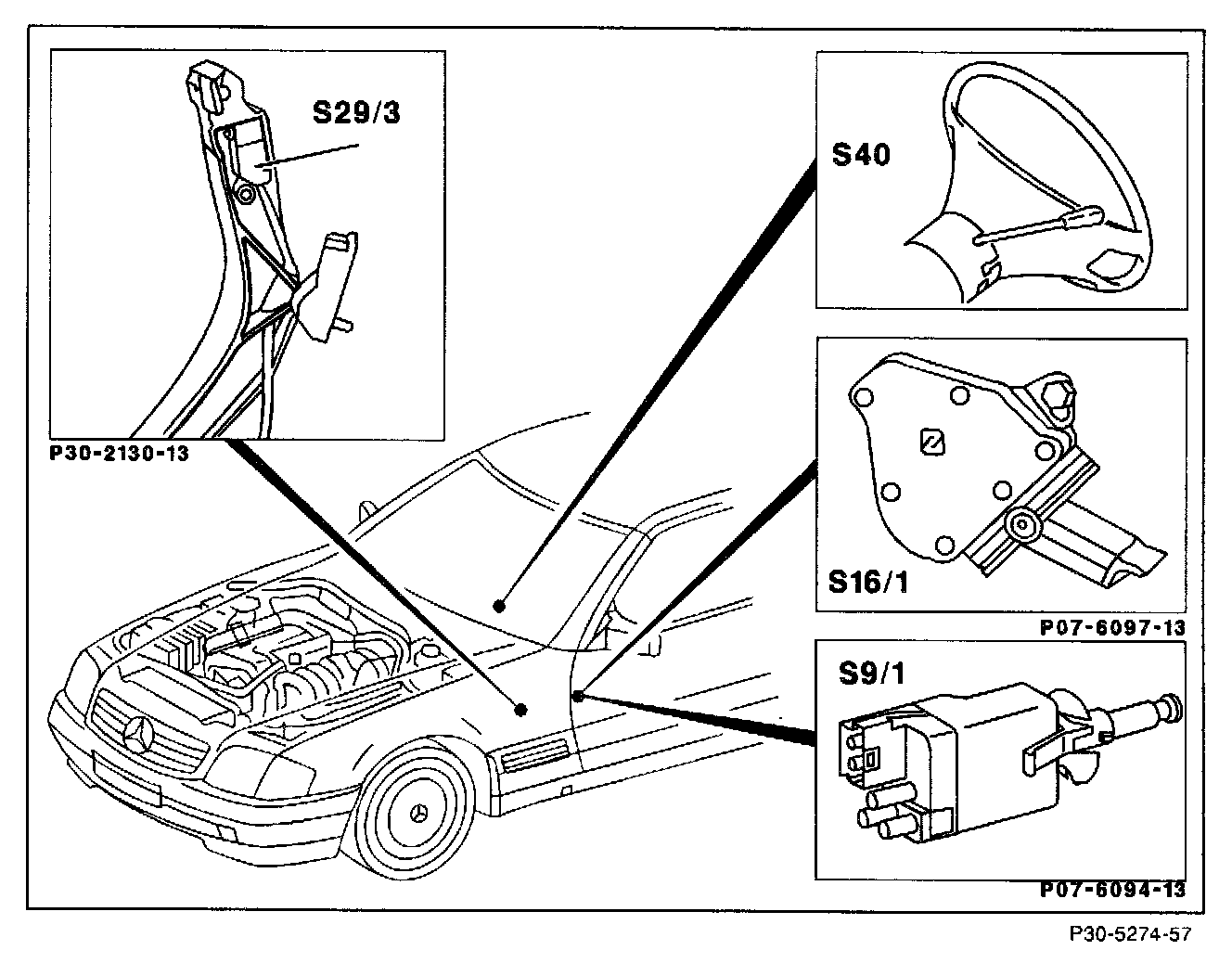

S9/1
Stop lamp swtch
S16/1
Starter lock-out/backup lamp switch
S40
CC switch
V
Decelerate/set
B
Accelerate/set
SP
Resume
A
Off
