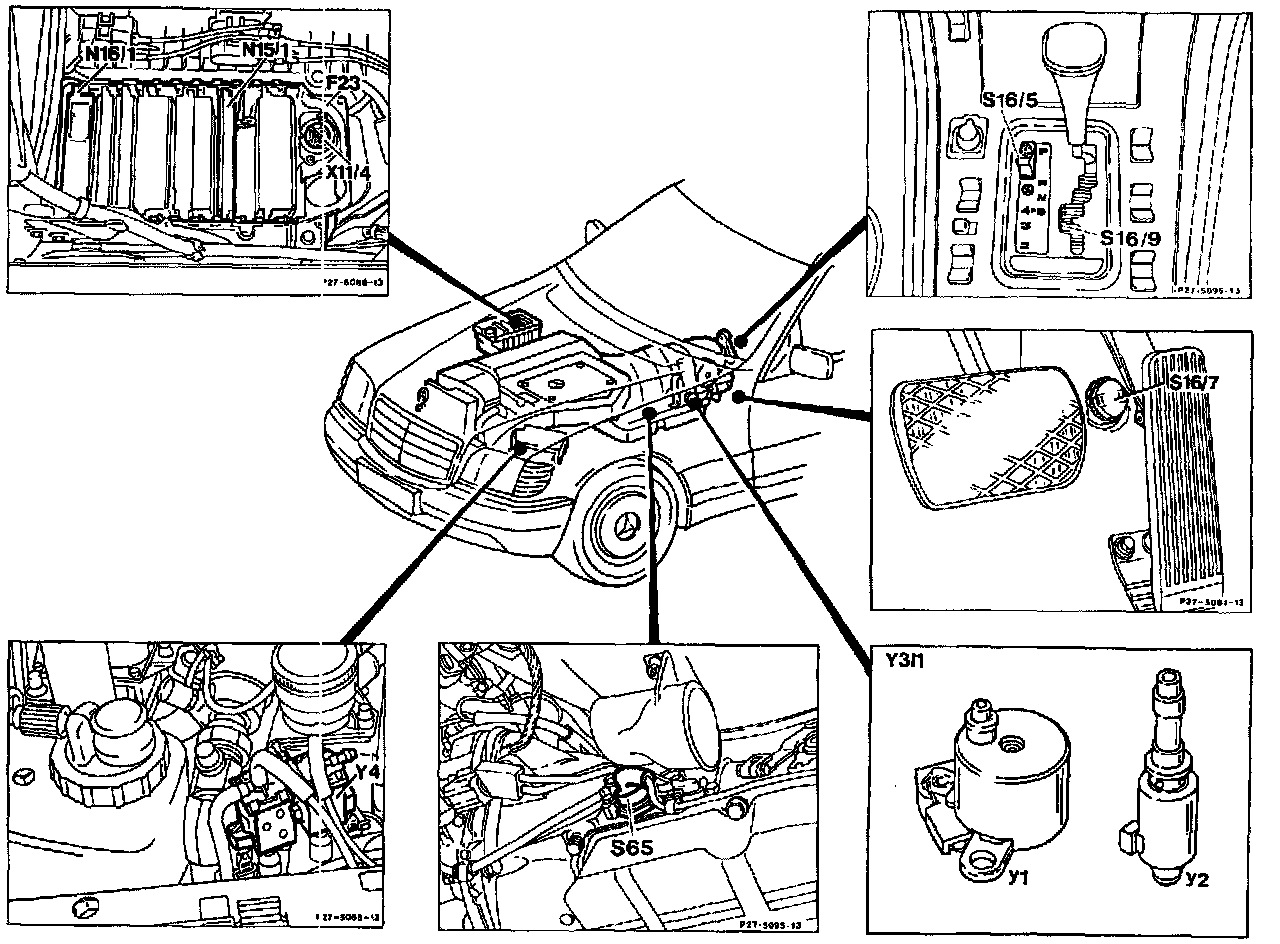

Component Locations
MODEL 140 SHOWN:
F23
Module box
N15/1
Transmission control module (TCM)
N16/1
Base module (BM)
S16/5
Transmission mode switch
S16/7
Kickdown switch (transmission mode)
S16/9
Transmission range "D" contact switch
X11/4
Data link connector (DTC readout)
Y3/1
Valve block (5-speed AT)
Y3/1y1
Kickdown solenoid valve
Y3/1y2
Control valve
