Preparation For Test

Preliminary Work: Diagnosis - Diagnostic Trouble Code (DTC) Memory. Diagnostic Trouble Code (DTC) Memory

1. Ignition: OFF
2. Disconnect TCM (N15/1). Connect socket box (126-pole) with contact module 3 and contact box according to connection diagram below.


EQUIPMENT
Digital multimeter Fluke, models 23, 83, 85, 87, 88 are available through the MBNA Standard Equipment Program.


SPECIAL TOOLS


































CONNECTION DIAGRAM - SOCKET BOX

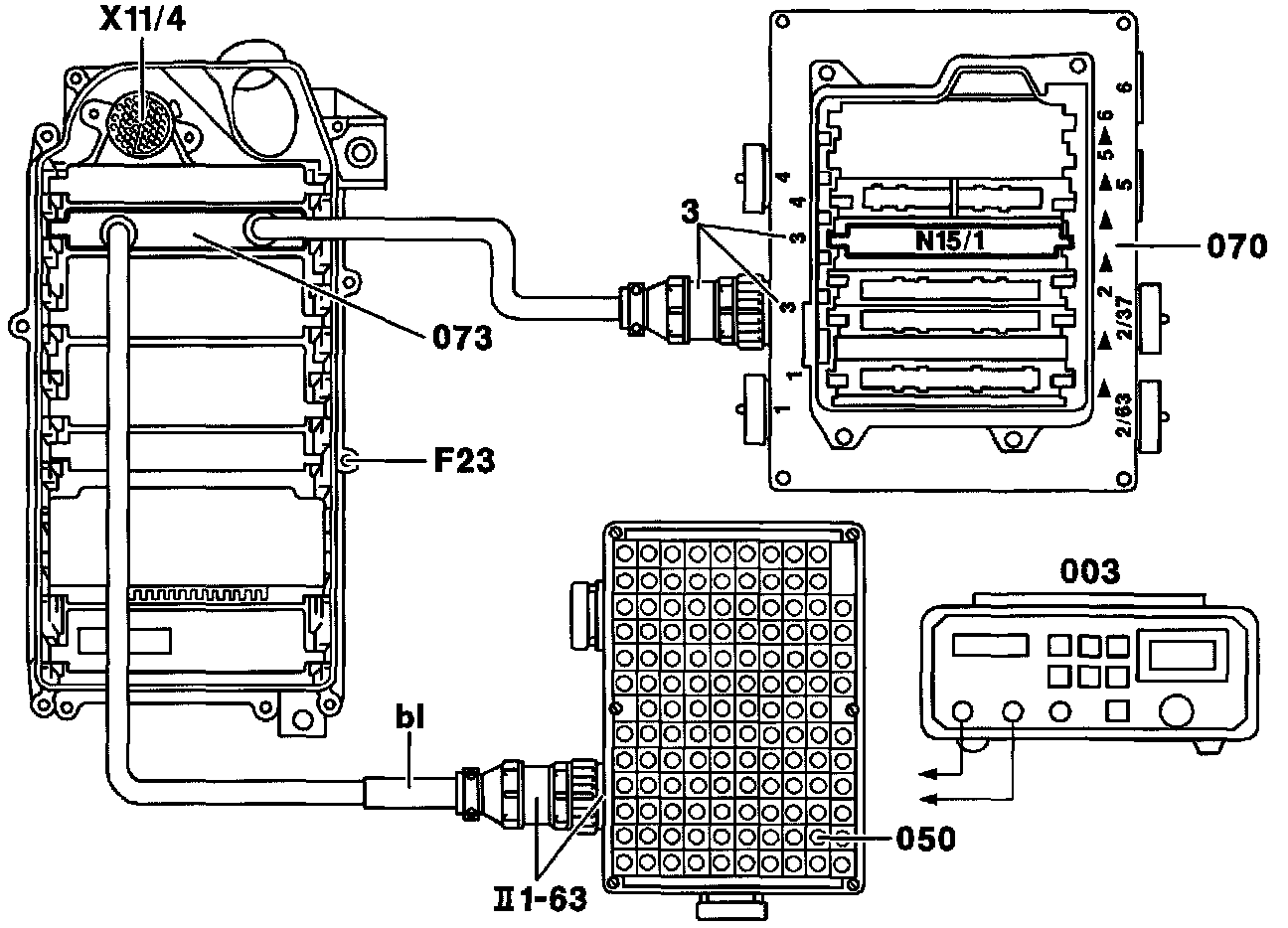

Model 129:

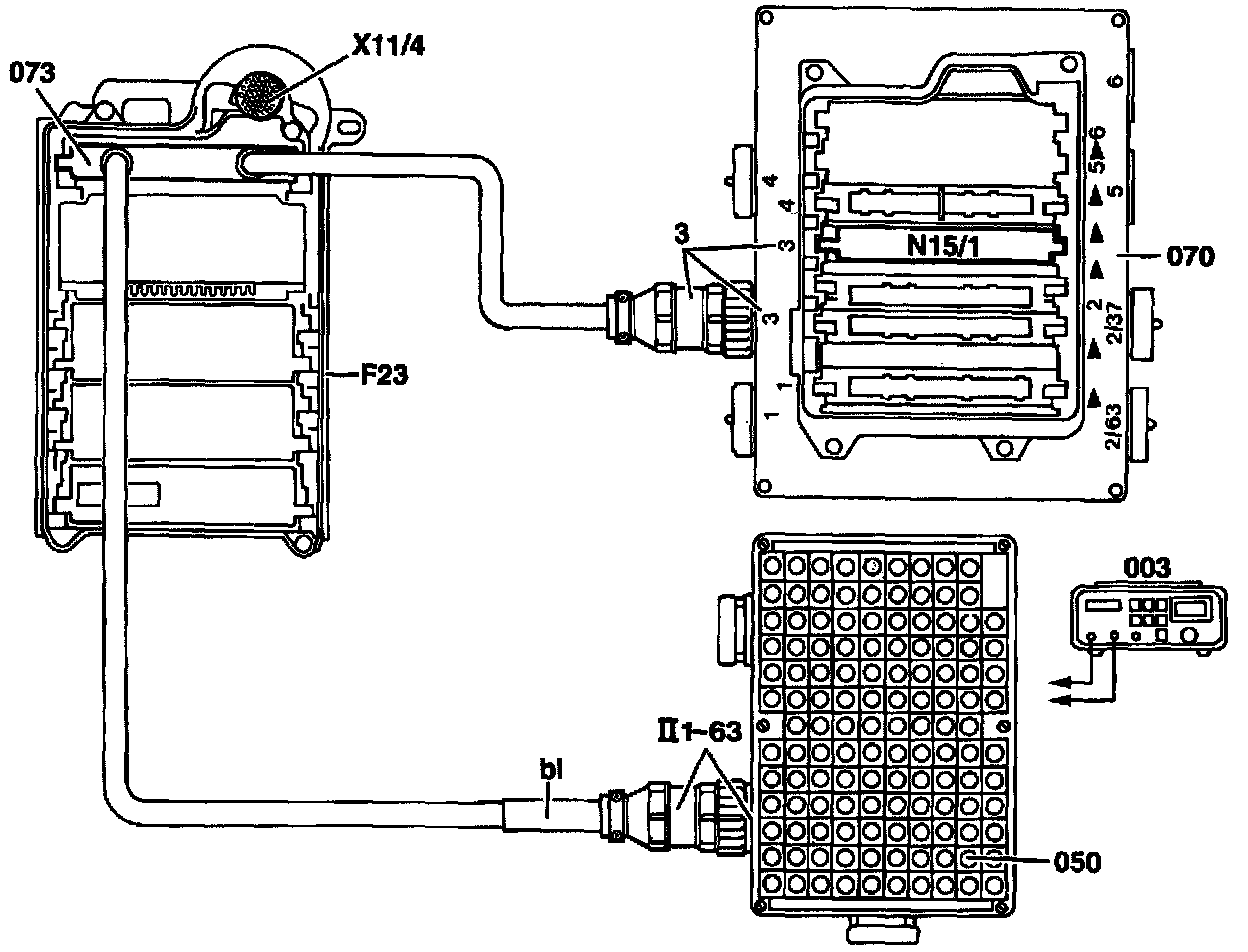

Model 140:

003 Digital multimeter
050 Socket box (126-pole)
070 Contact box
073 Contact module 3
F23 Module box
N15/1 Transmission control module (TCM)
X11/4 Data link connector (DTC readout)
bl blue
