Checking and Adjusting Rear Wheel Toe-In

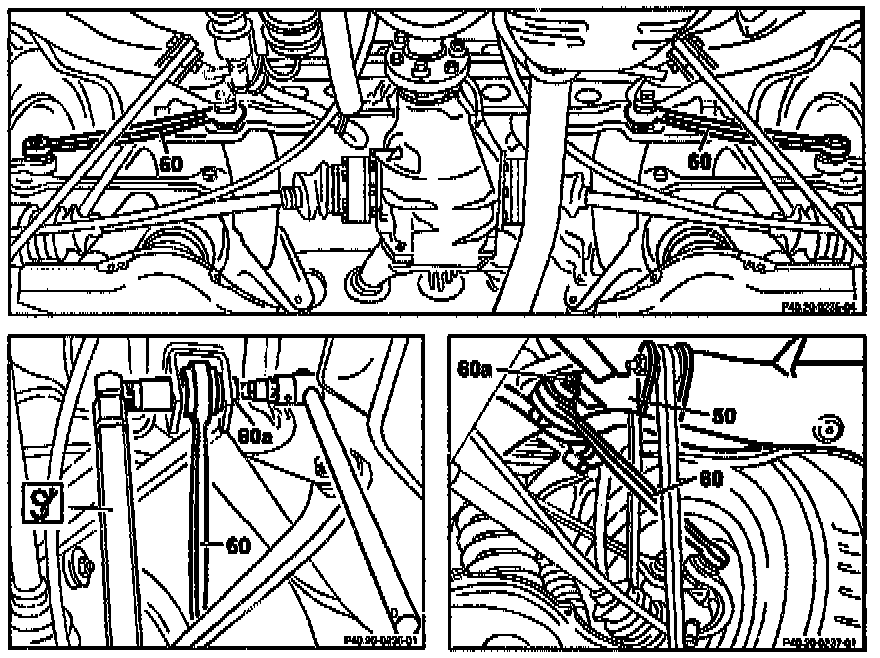

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
1. Check vehicle level at the front and rear I axle
2. Adjust toe-in at rear axle carrier (50) using the cam bolt (60a) on the mount of left and right track rod (60)
- Toe-in of rear wheels:
- Range: 0.33 to 0.58°
- Preferred: 0.42°
3. When adjustments are complete, tighten, cam bolt of rear axle track rod to: 70 Nm
