Remove/Install A/C Compressor
Air conditioner
Drain (recycling).
Lower engine compartment covering
Remove.
Ribbed V-belt
slacken and remove.
Torsion bar
Disconnect at forward mountings (2 clamps, 4 self-locking nuts).
NOTE: Always replace self-locking nuts and screws after removal

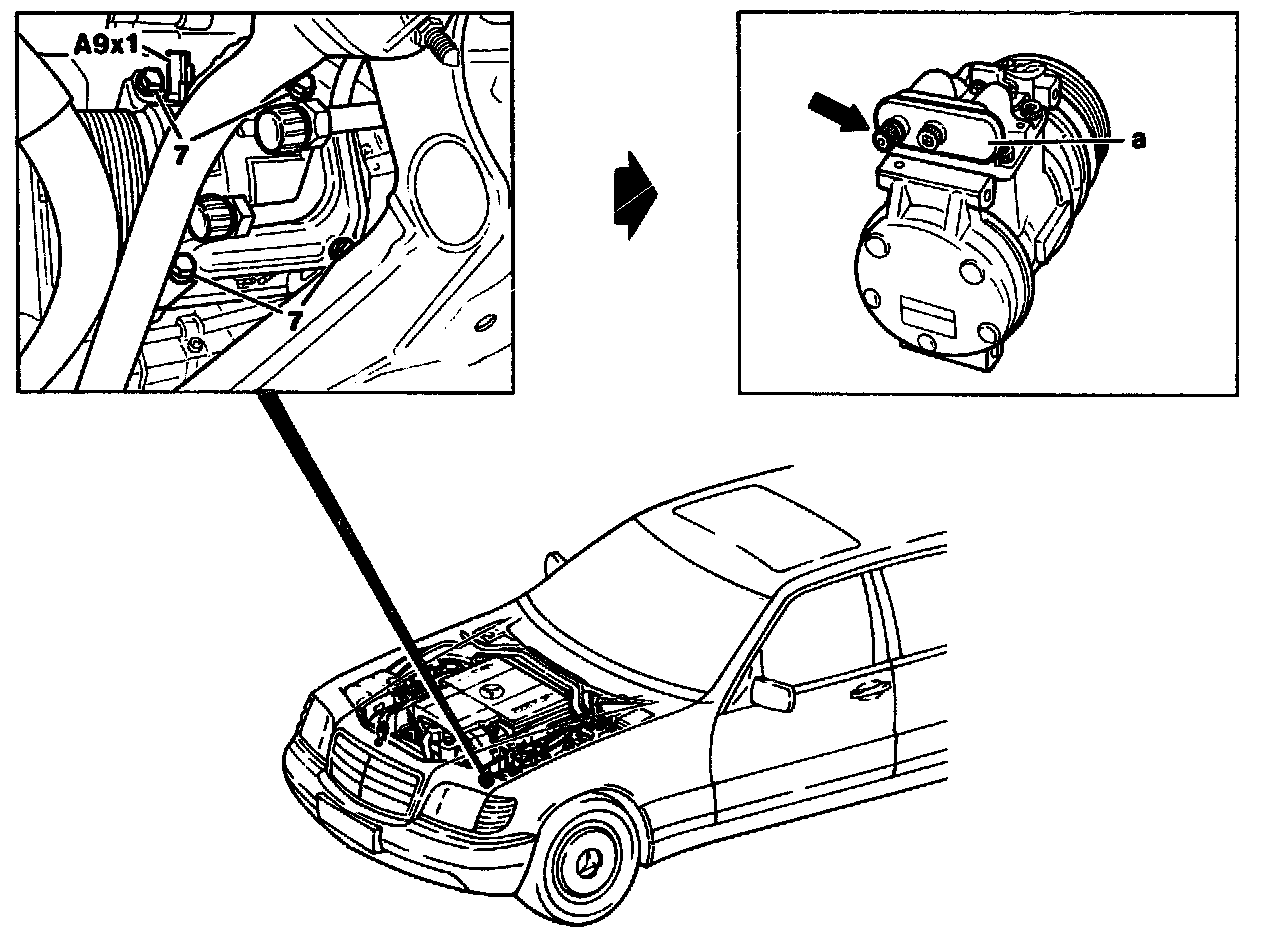

3-pole connector (A9x1)
Disconnect.
Suction and pressure line
Disconnect at pipe group, tighten to
17 ± 3 Nm.
