Component Locations

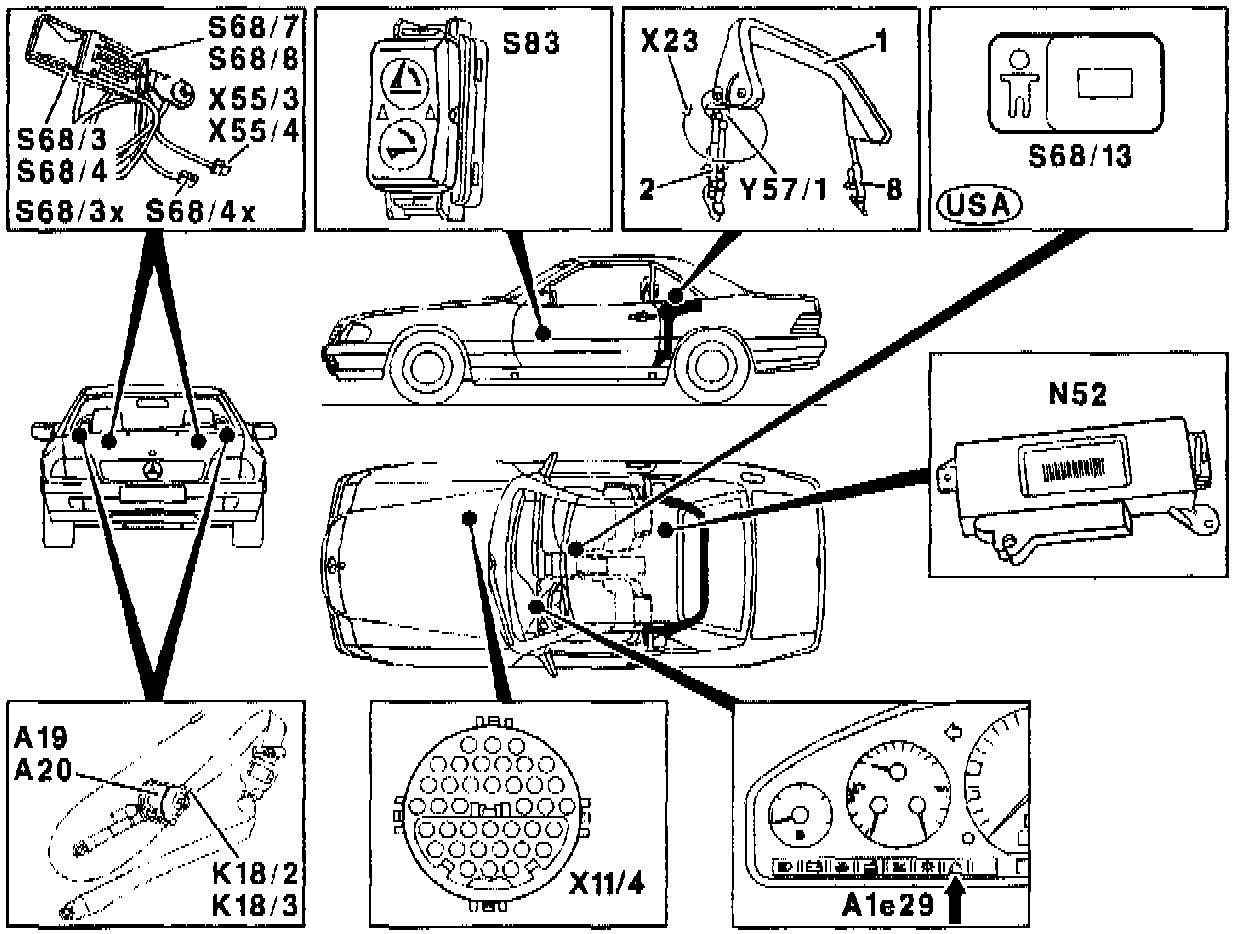

Figure 1:

A1e29 RB MIL
A19 Left seat belt lock
A20 Right seat belt lock
K18/2 Left front seat belt lock relay module
K18/3 Right front seat belt lock relay module
N52 Power soft top control module
R12/1 Left front ETR squib
R12/2 Right fruit ETR squib
S68/7 Left front seat belt buckle/belt lock switch
S68/8 Right front seat belt buckle/belt lock switch
S68/13 Seat belt luck switch (child safety lock)
S83 RB switch (manual operation)
X11/4 Data link connector (DTC readout)
X23 RB solenoid valve connector (2-pole)
X55/3 Left ESA connector block
X55/4 Right ESA connector block
Y57/1 RB deployment solenoid
