Engine Control Module
HFM-SFI SEQUENTIAL MULTIPORT FUEL INJECTION/ IGNITION SYSTEMConnector View, N3/4:

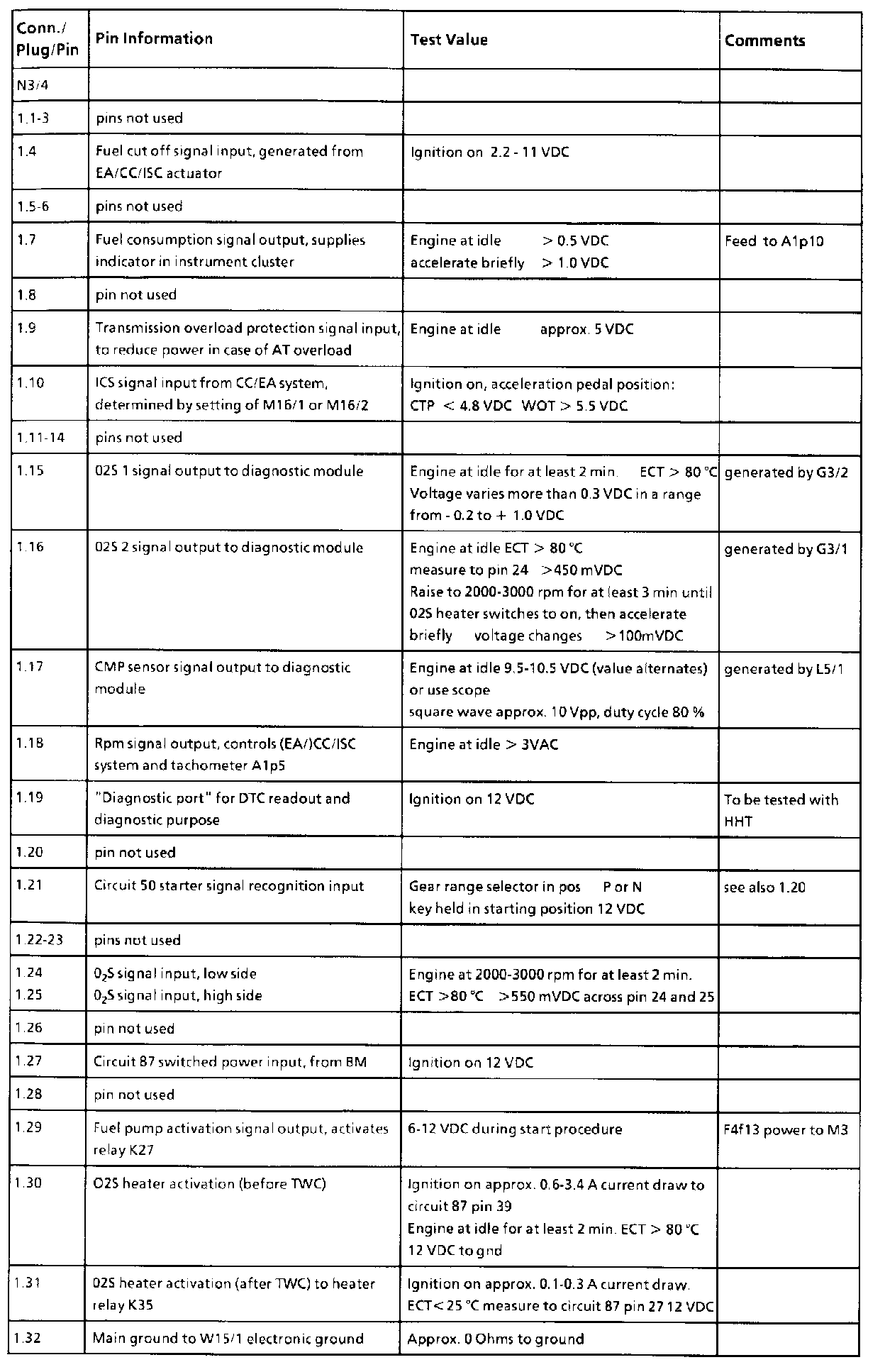

Connector 1 (Interior Compartment)Pin Information, Part 1:

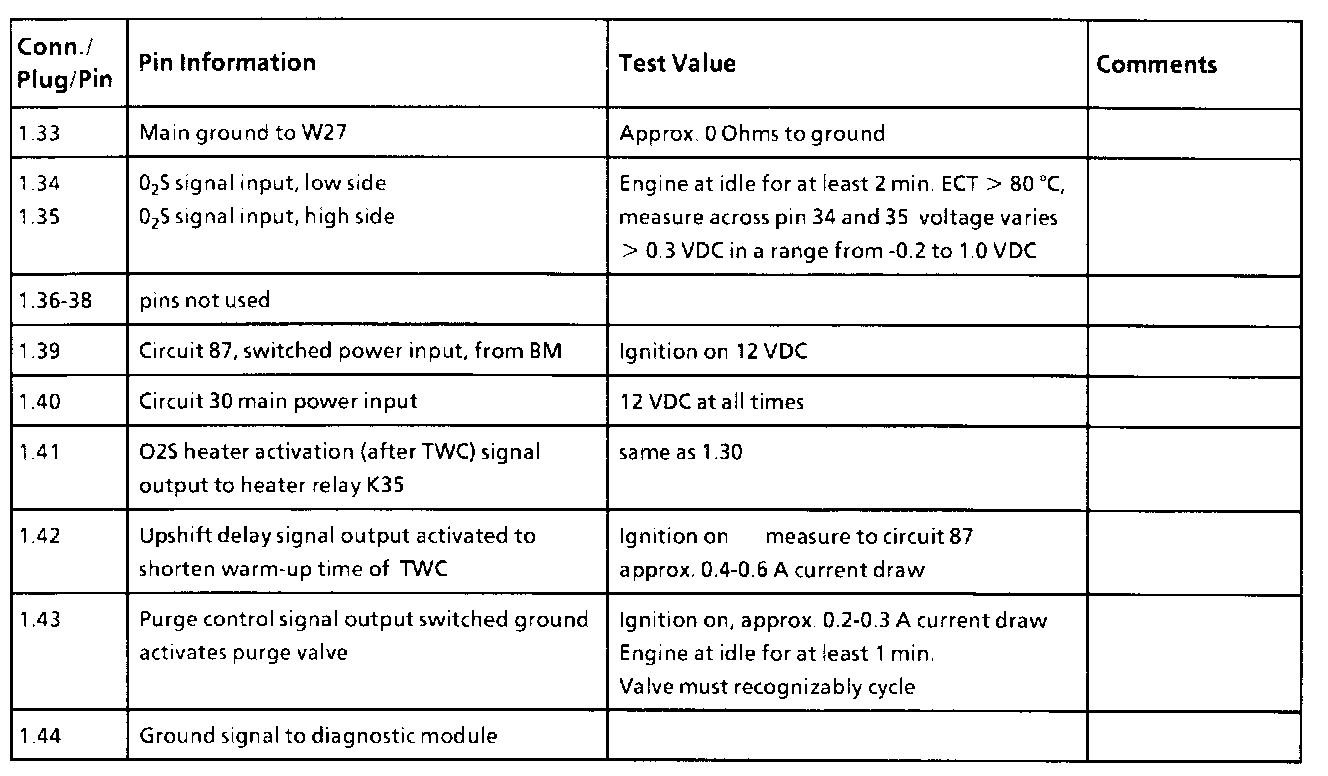

Pin Information, Part 2:

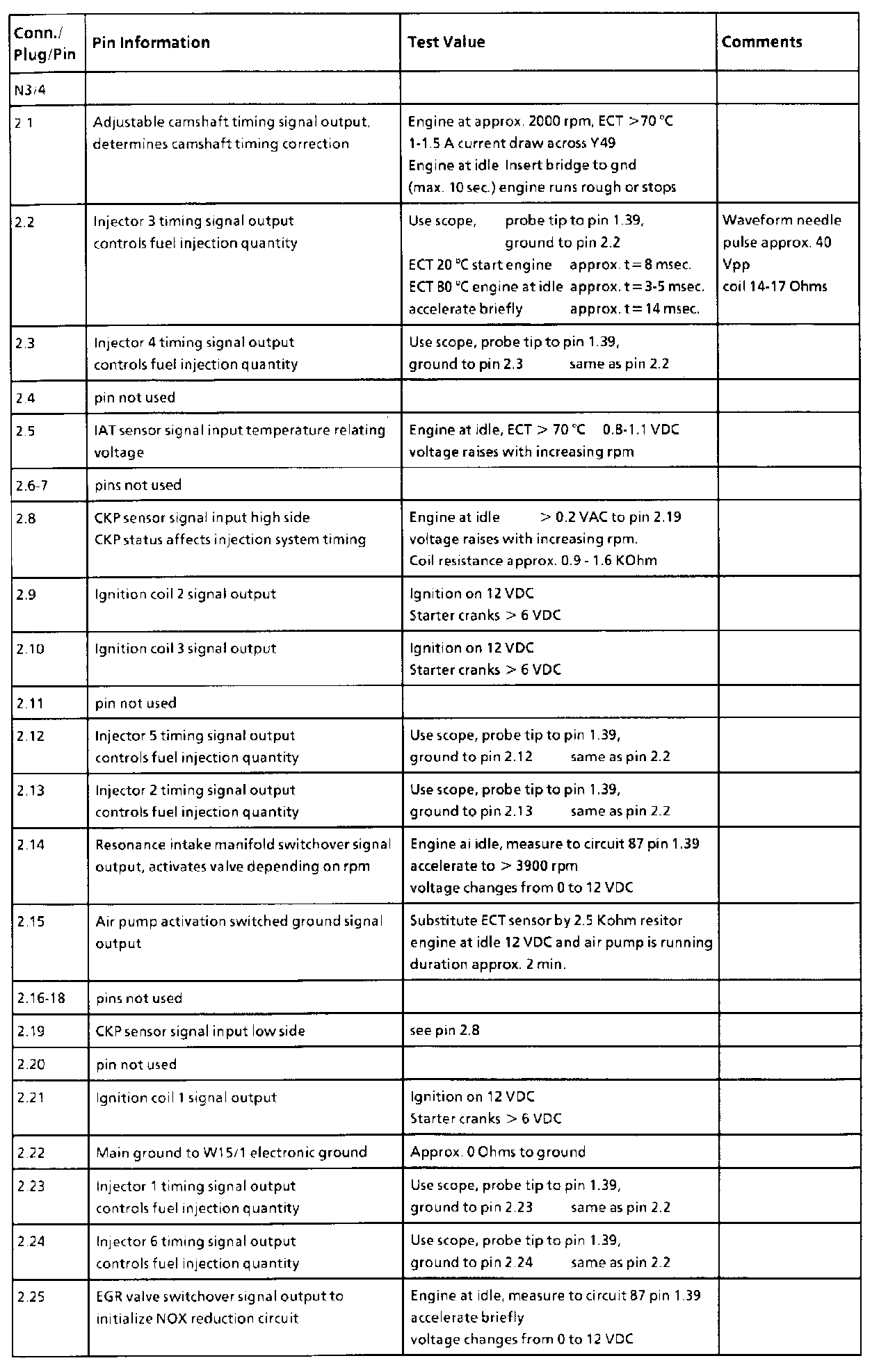

Connector 2 (Engine Compartment)Pin Information, Part 1:

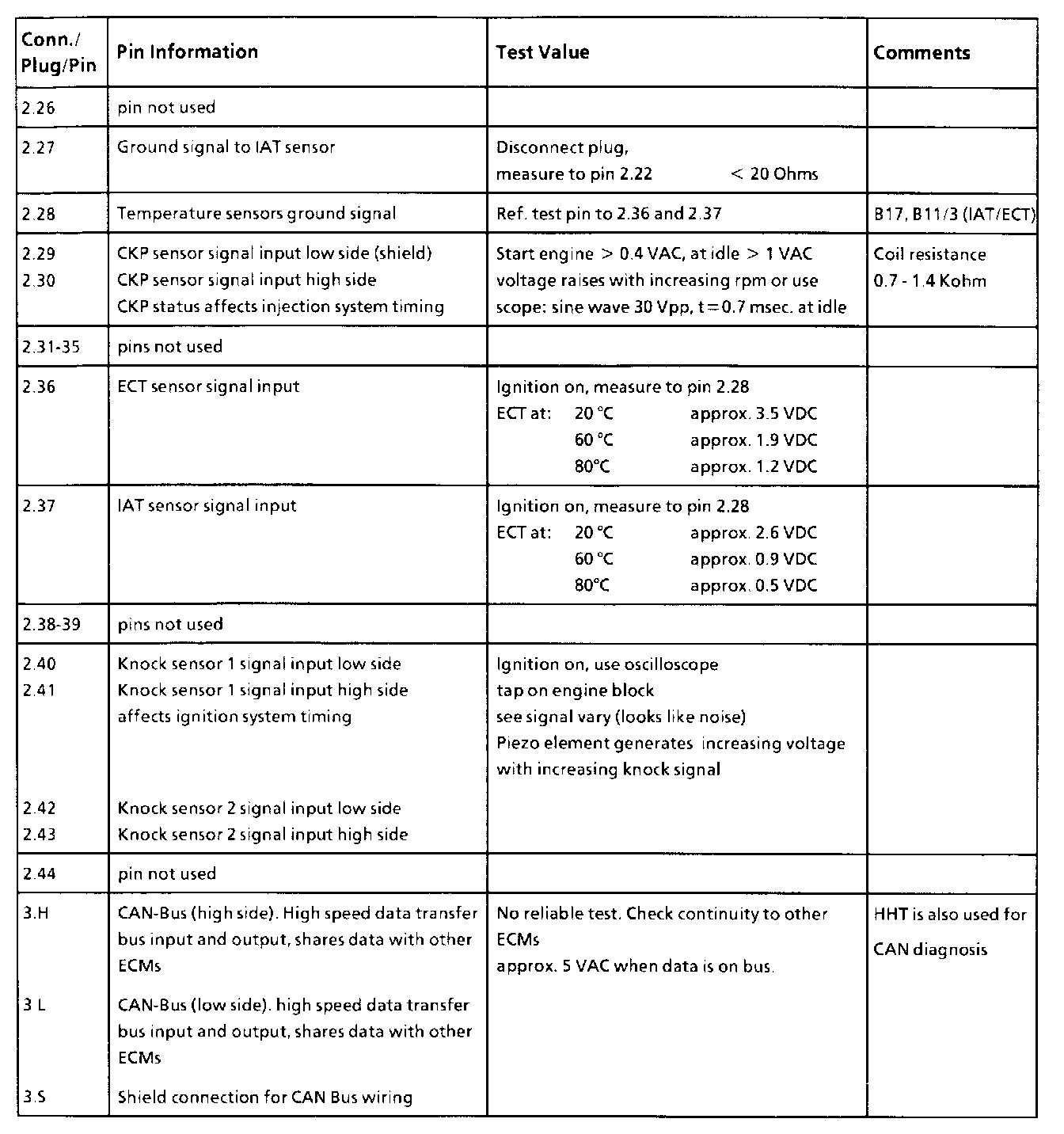

Pin Information, Part 2:
All values measure to ground unless otherwise noted.
