Two-Sensor Control
Two-Sensor Control, Basic System Diagram:

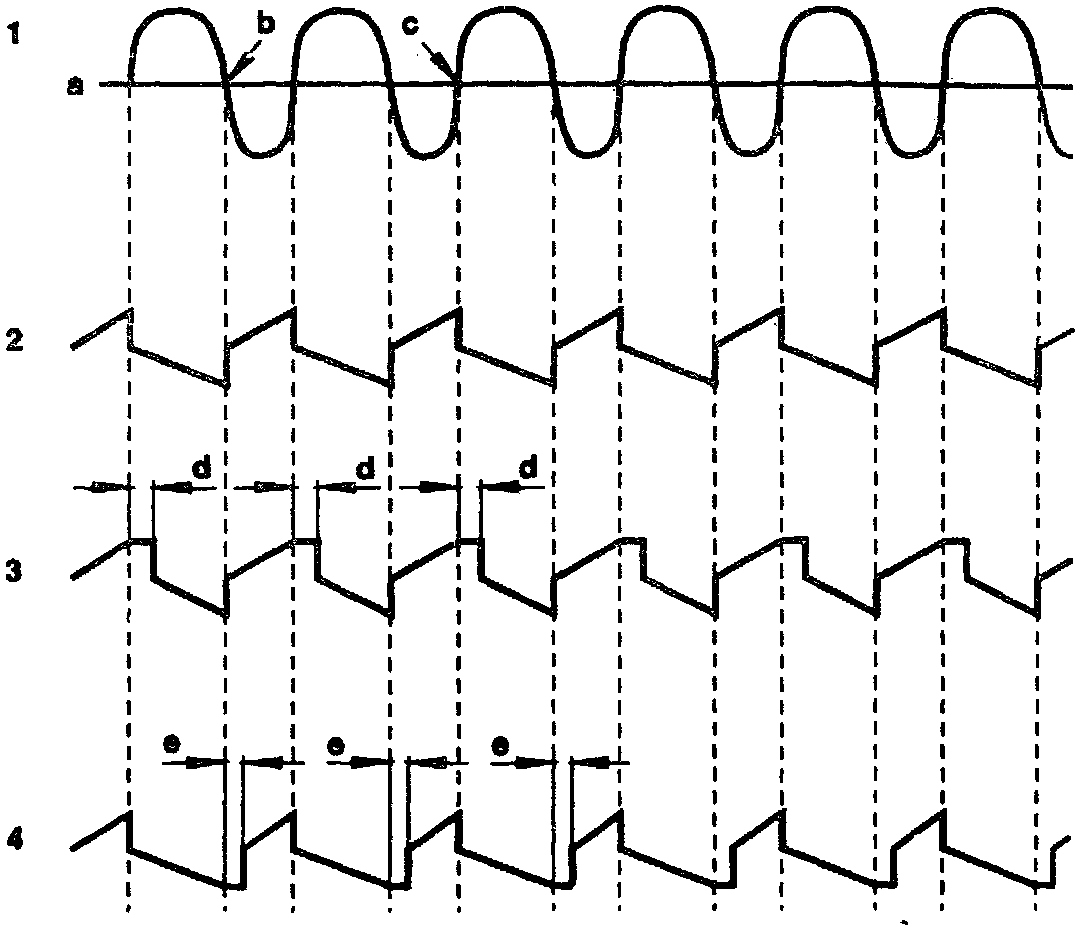

O2 Sensor Signal Upstream Of TWC:
1.
O2 sensor signal upstream of
TWC a) Voltage threshold for rich - lean transition (b) or lean - rich transition (c)
2.
Lambda control without correction variable
3.
Lambda control with correction variable (d), time shift (+TV) in rich direction
4.
Lambda control with correction variable (e), time shift (-TV) in lean direction
