Relay Module



Fuse and Relay Module (K40)

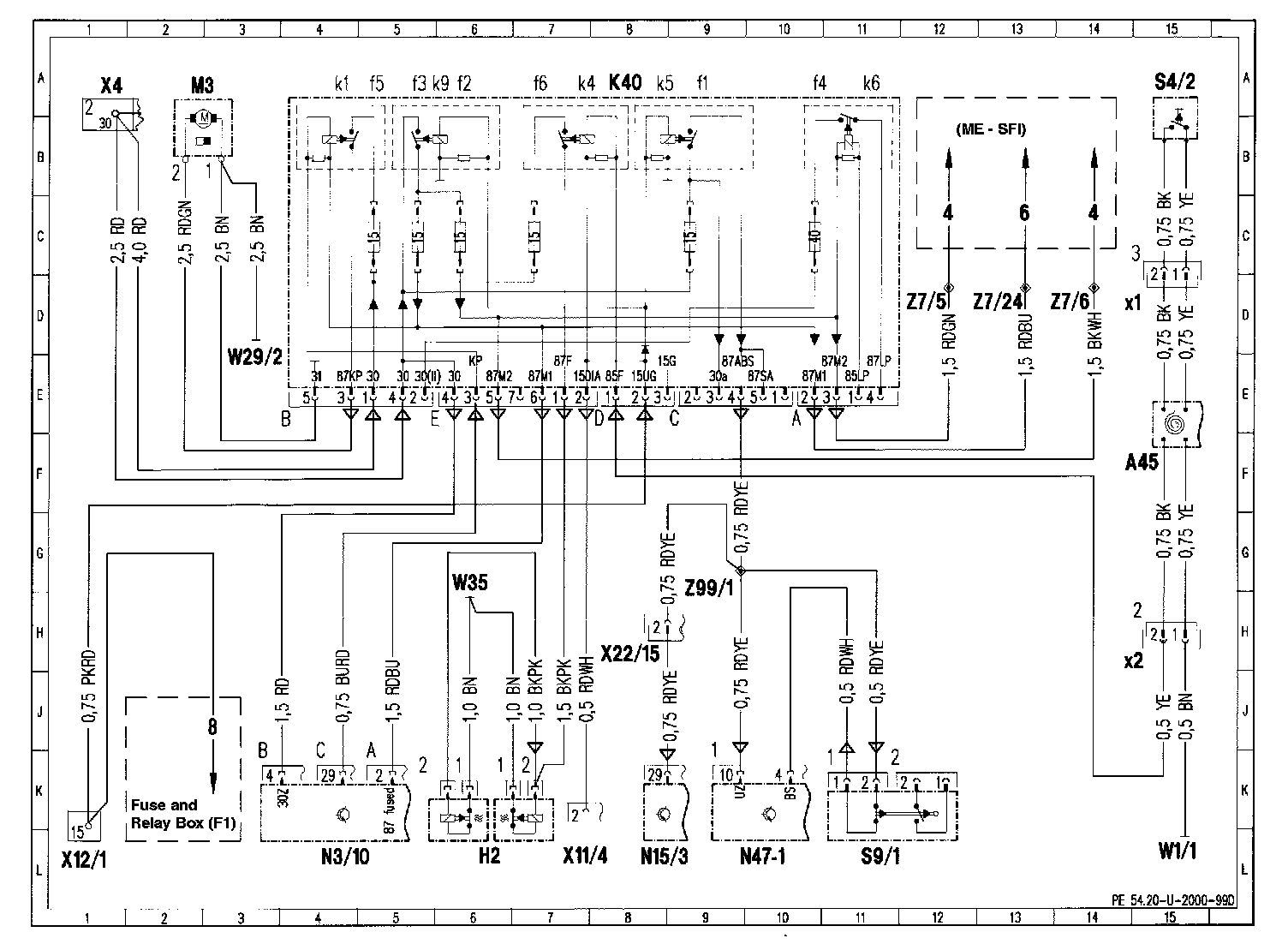

Wiring Diagram

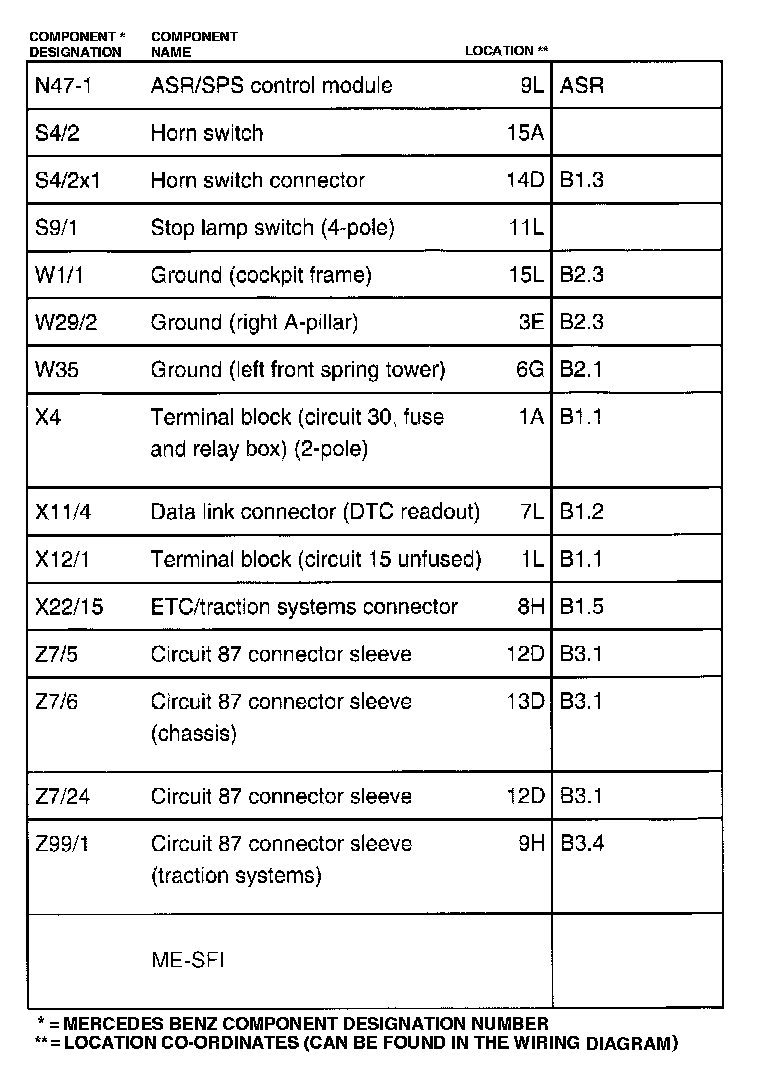

Component Grid Location

A45 - N15/3:






N47-1 - Z99/1 (Part 1 Of 2):






N47-1 - Z99/1 (Part 2 Of 2):

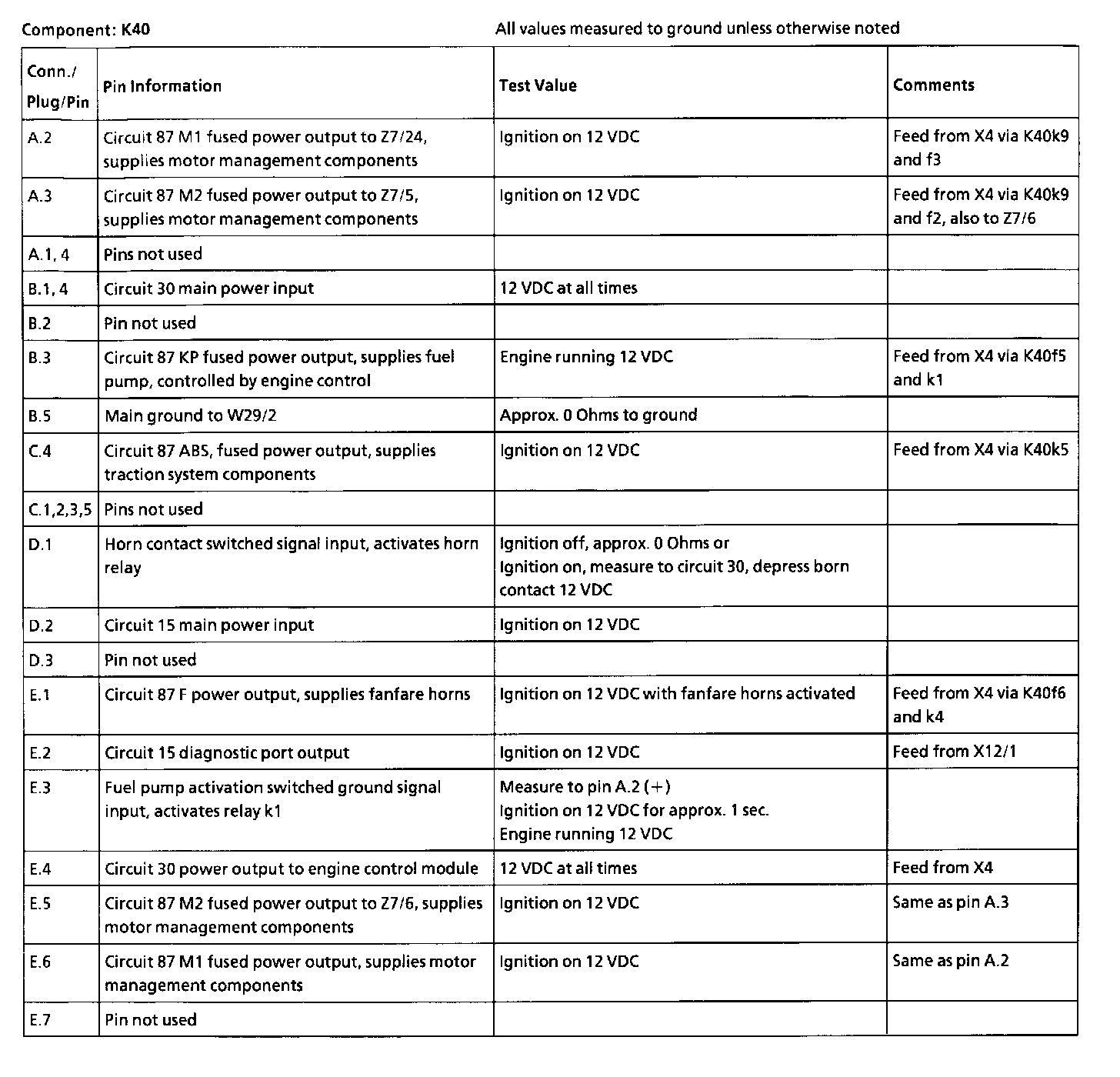

Pin-Out Testing - Component: K40

Connector A - Pin 2 Through E - Pin 7:

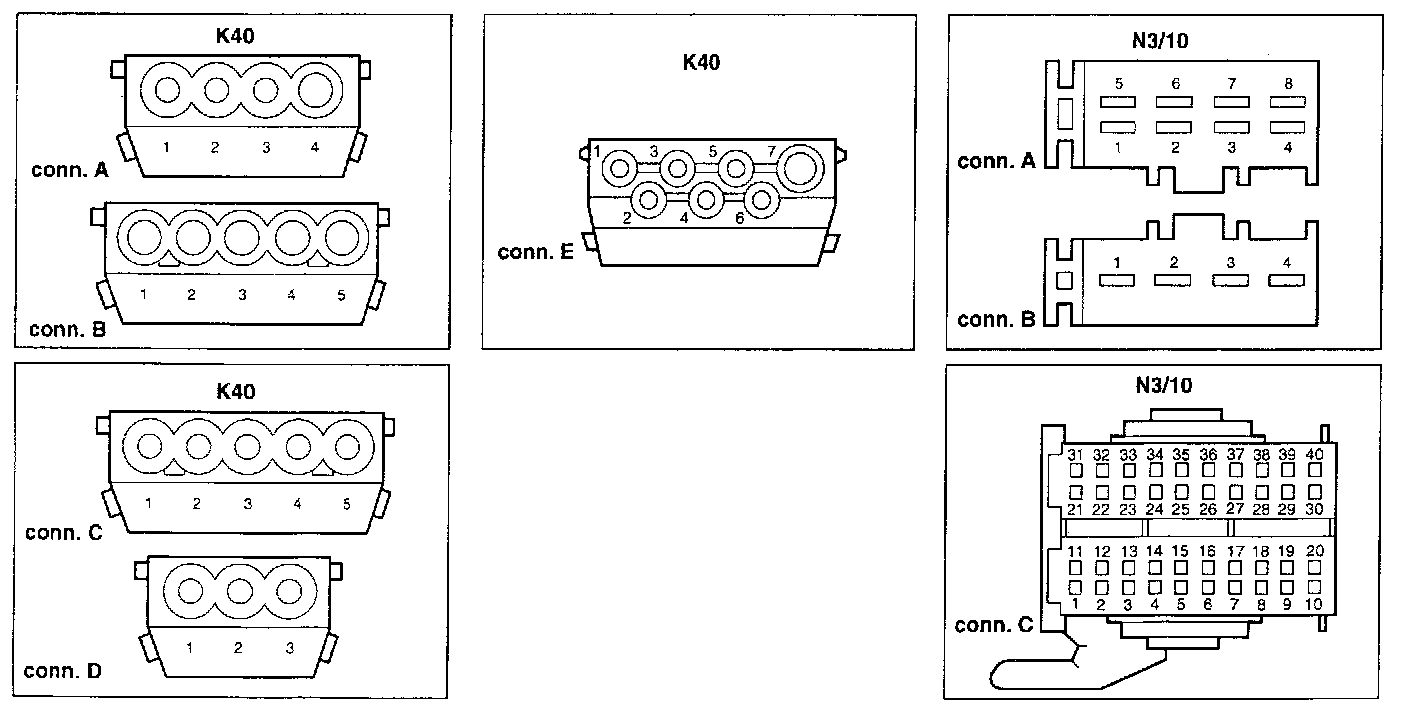

Connector Views:
