Brake Bleeding: Service and Repair
Bleed Brake System
DANGER:
- Risk of poisoning from swallowing brake fluid. Risk of injury from brake fluid coming into contact with skin and eyes.
- Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.
CAUTION:
- See brake fluid notes
- See notes on repairs to brake system

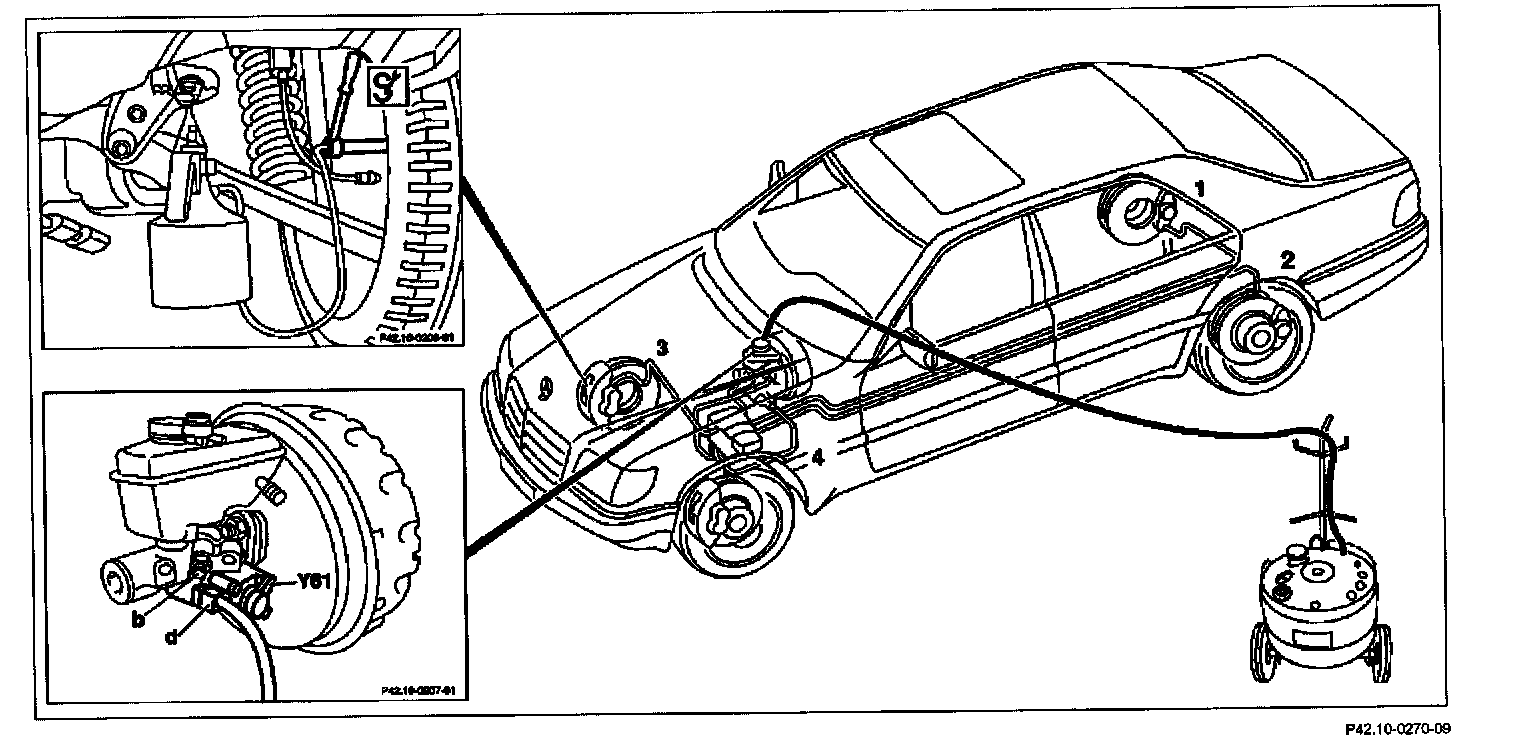

1 Actuate master brake cylinder switchover valve (Y61)
NOTE: The switchover valve (Y61) must be open so that the annular passage in master brake cylinder is bled.
2 Connect filling and bleeding device
CAUTION:
- Pay attention to manufacturer's operating instructions.
- Bleeding pressure 2 bar
3 Carrying out bleeding operation
4 Disconnect filler and bleeder unit, check brake fluid level and correct if necessary
