Oil Filter: Service and Repair

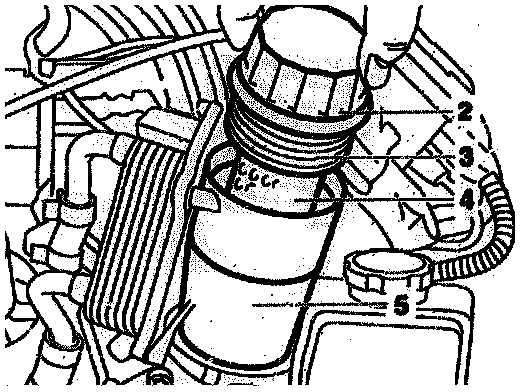

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
1.
Screw off screw cap (2) with socket wrench attachment 103 589 02 09 00 or equivalent and remove
oil filter cartridge (4).
2.
Replace sealing ring (3).
3.
Insert new
oil filter cartridge (4) into oil filter housing (5).
4.
Install screw cover, use socket wrench attachment.
