Power Steering Fluid: Service and Repair
AP46.00-P-4611BB Check and correct power steering fluid level
- except CODE (487) Active Body Control (ABC) [models 220, 230]
- with CODE (P99) Special model "AMG Black Series"
Component Identification:

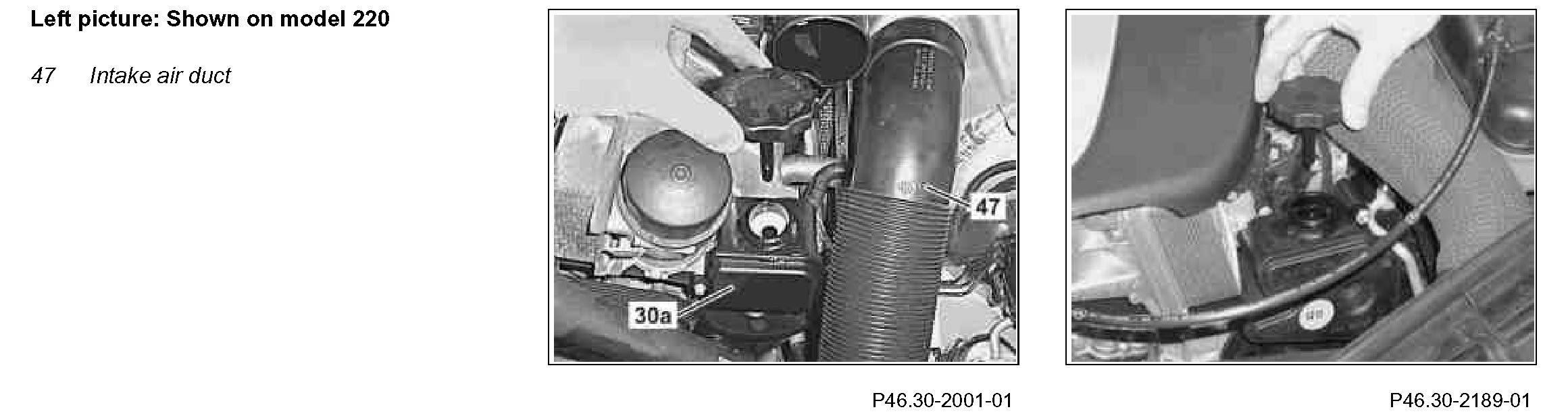

Left picture: Shown on model 220
Right picture: Shown on model 211.056
Component Identification:

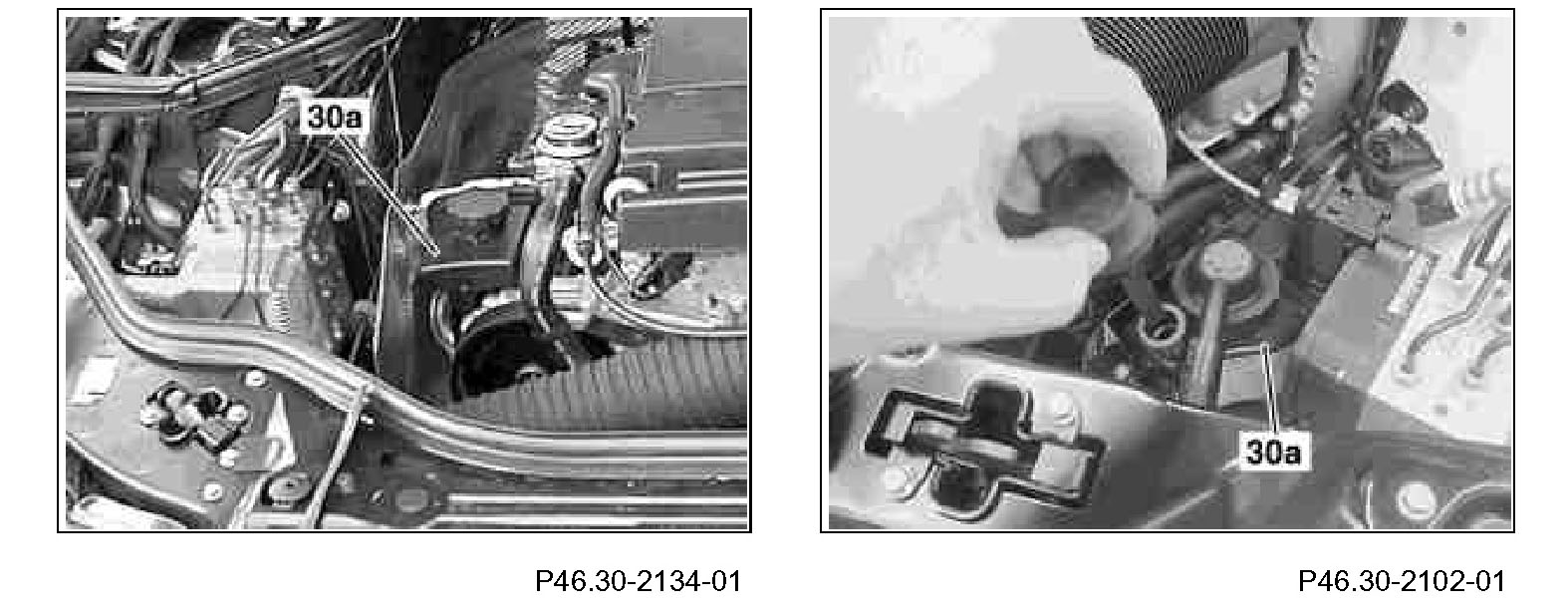

Left picture: Shown on model 211.042
Right picture: Shown on model 220
Component Identification:

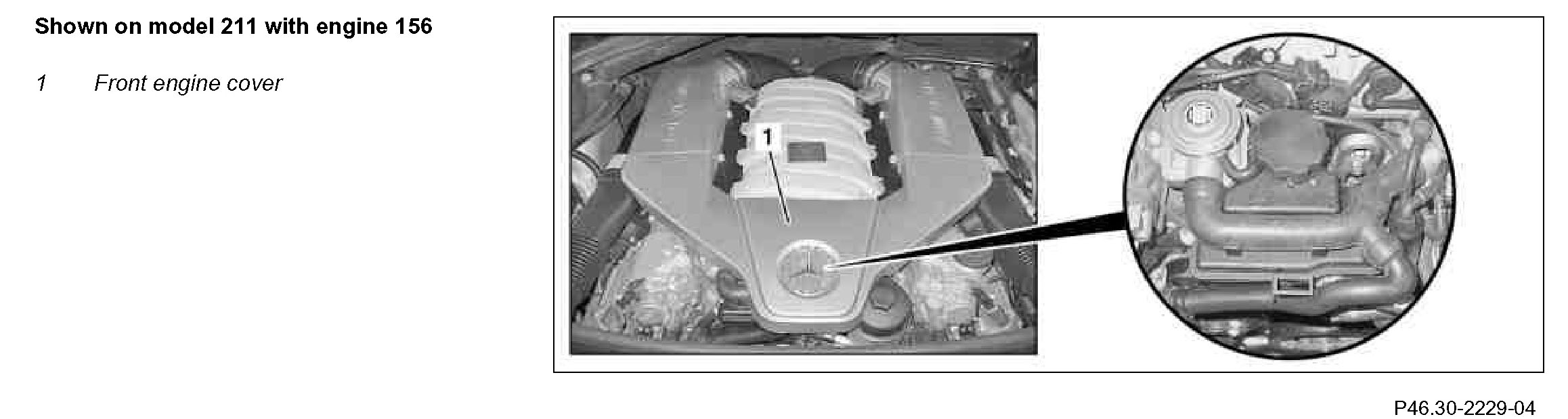

Shown on model 211 with engine 156
Component Identification:

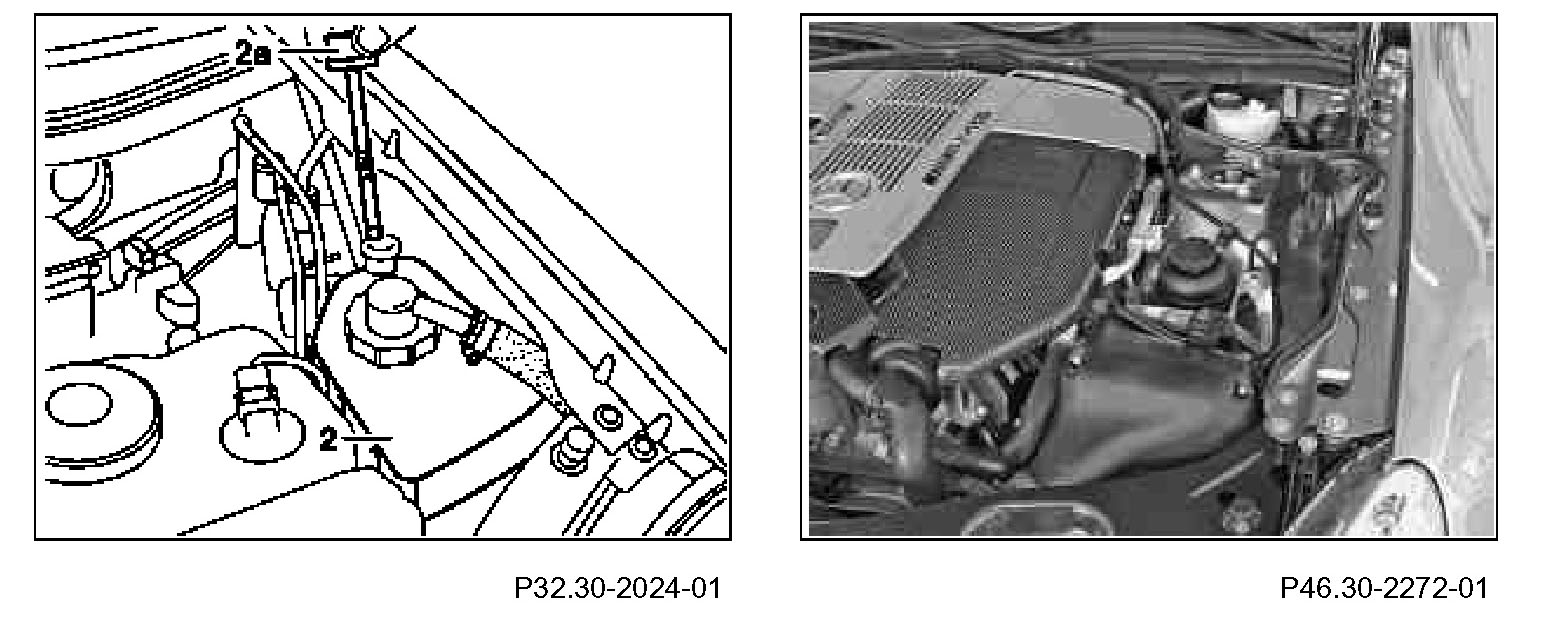

Left picture: Shown model 210 with code (480) Level control on rear axle
Right picture: Shown model 230.479 with code (P99) Special model "AMG Black Series"
Component Identification:
Shows model 168
Modification notes:

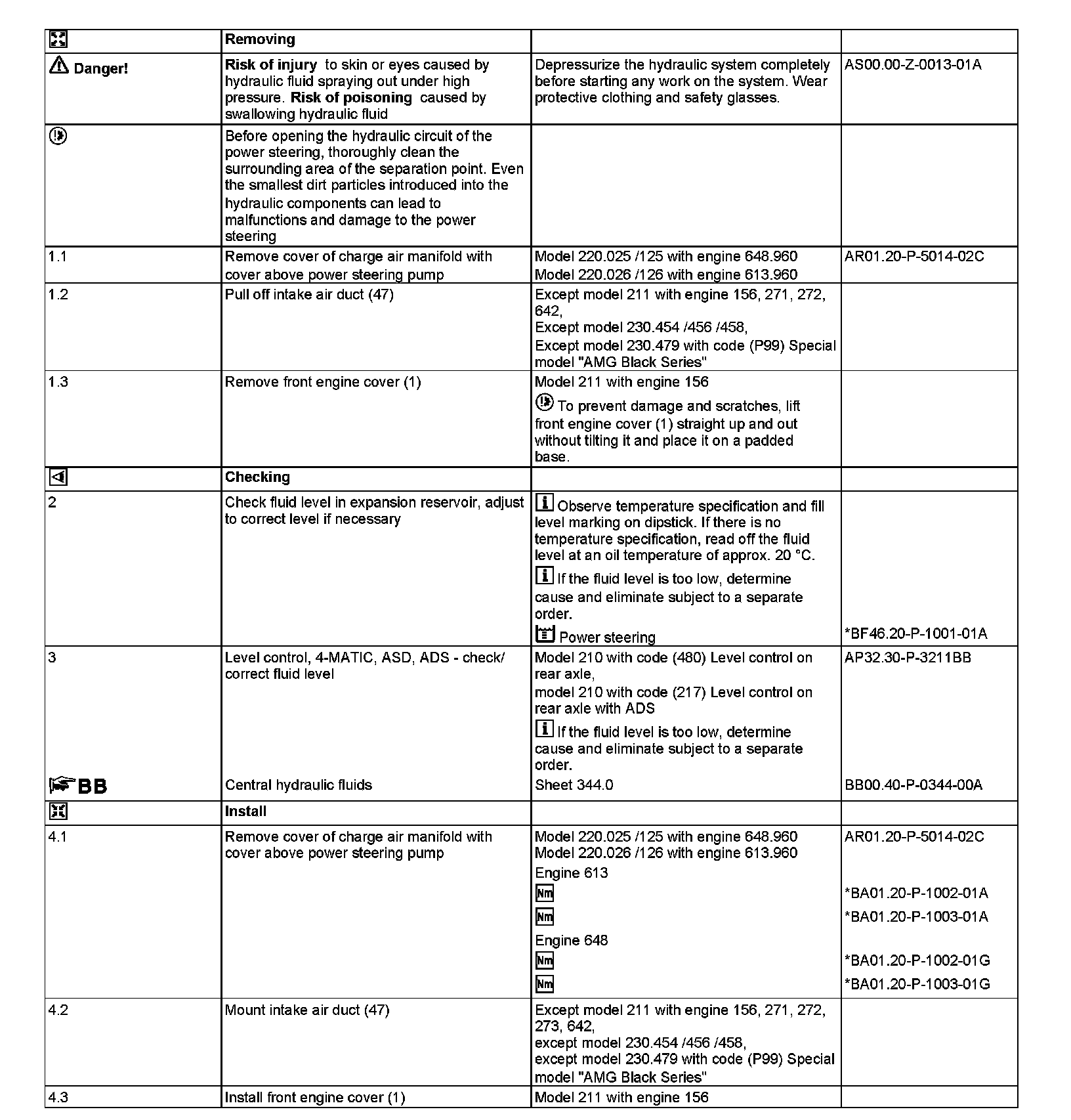

Steps 1-4.3:
Crankcase ventilation, cylinder head cover:
Crankcase ventilation, cylinder head cover:
Steering gear:
Steering gear:
Steering gear:
Steering gear:
