Vehicle Lifting: Service and Repair

Lifting Vehicle With Pit Lift or Workshop Jack

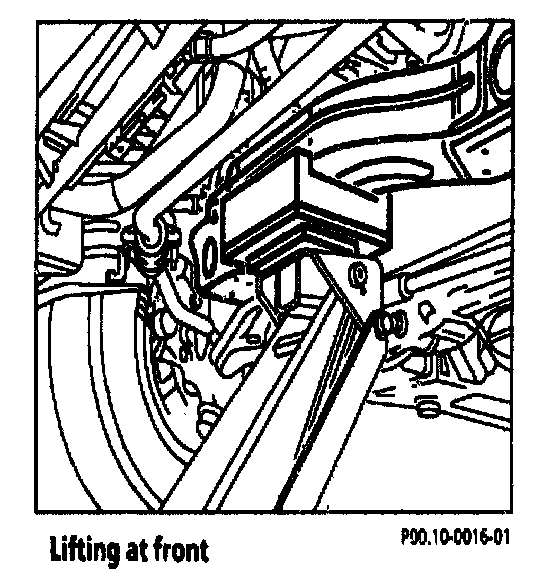

Lifting At Front:

NOTE: Position pit lift or workshop jack with jack-up shoe below front cross member on front axle carrier (model 140) or frame cross member (models 124, 129, 201, 202, 208).
The side attachment points can also be used with the workshop jack.
Position pit lift or workshop jack on jack-up shoe of rear cross member of front axle carrier (model 210).

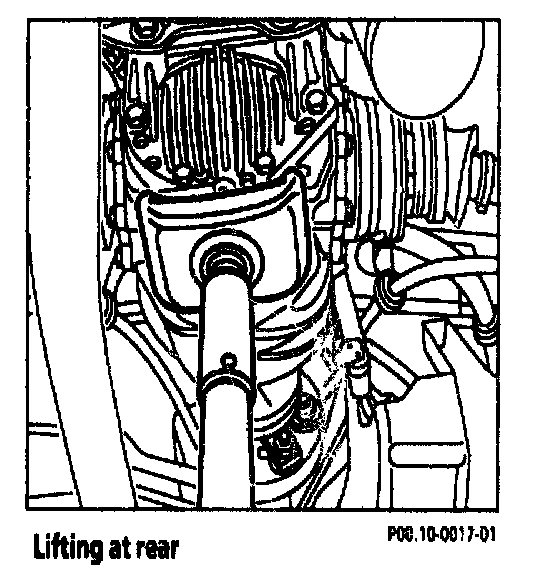

Lifting At Rear:

NOTE: Position pit lift or workshop jack under rear axle center assembly.


The side attachment points can also be used with the workshop jack.
