Fuse Block: Application and ID

F1 - Fuse and Relay Box (In Engine Compartment)

Fuse and Relay Box (F1), as of 6/1/97:

Block A:

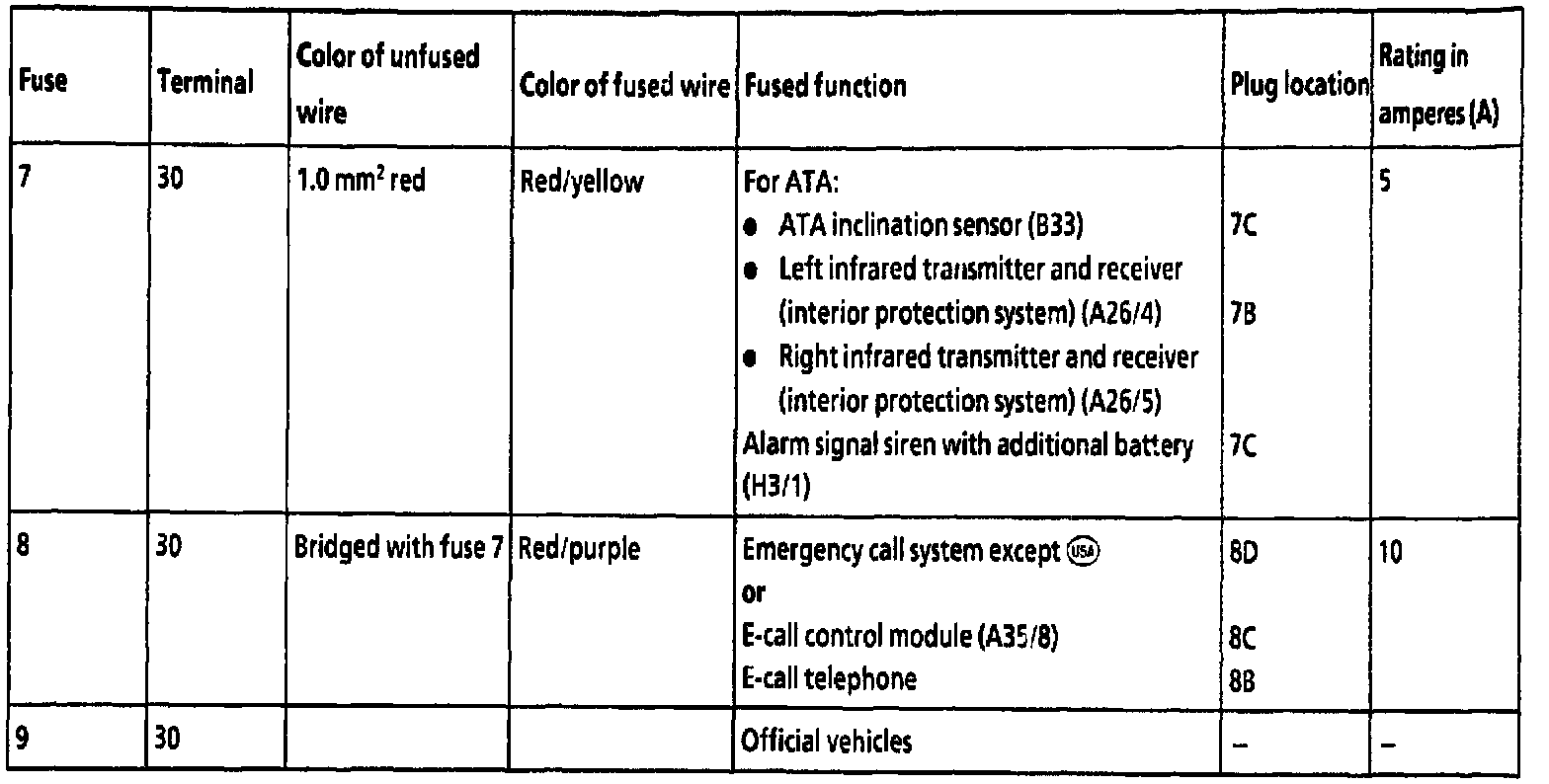

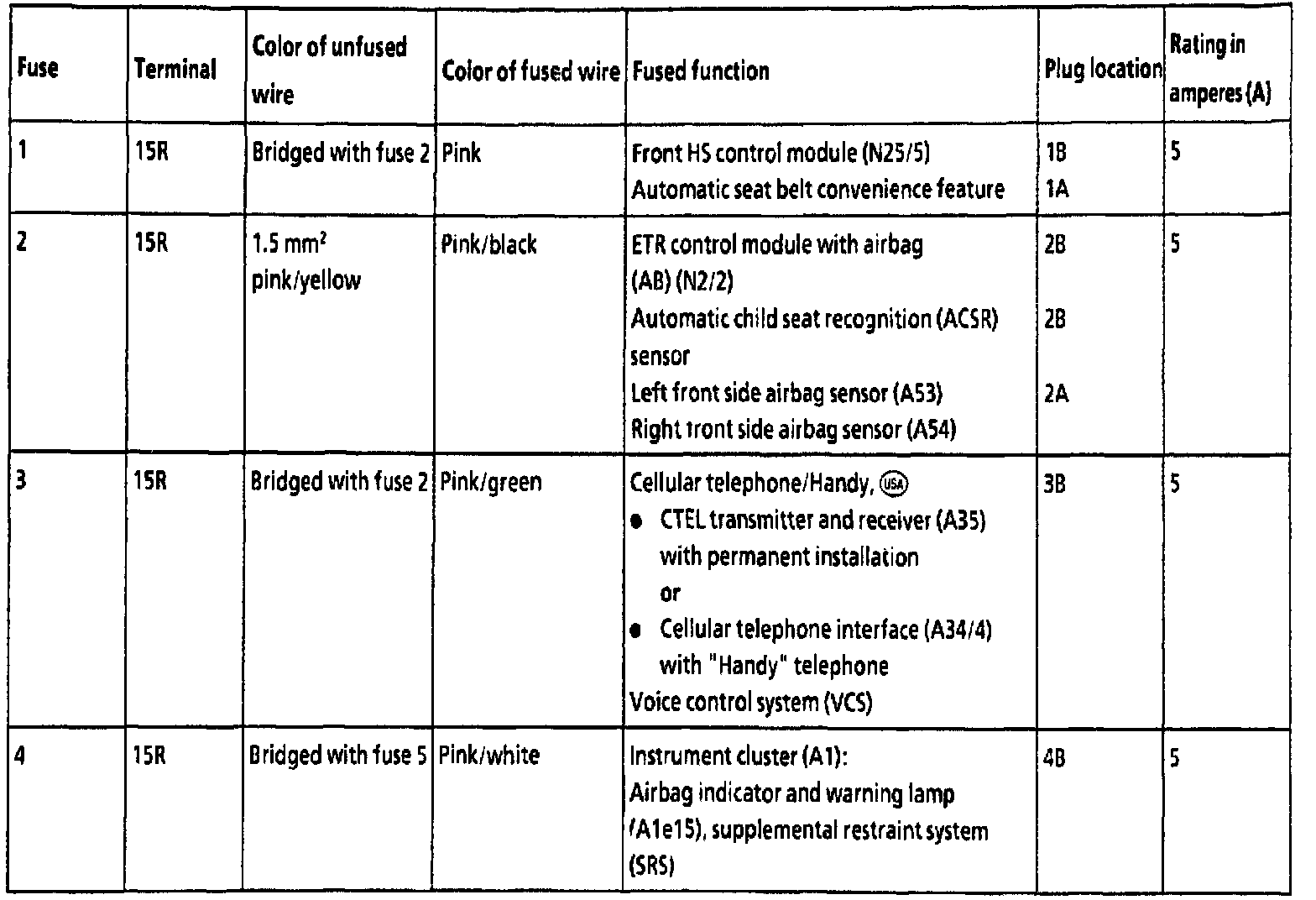

Fuse 1 - 4:

Fuse 5 - 7:

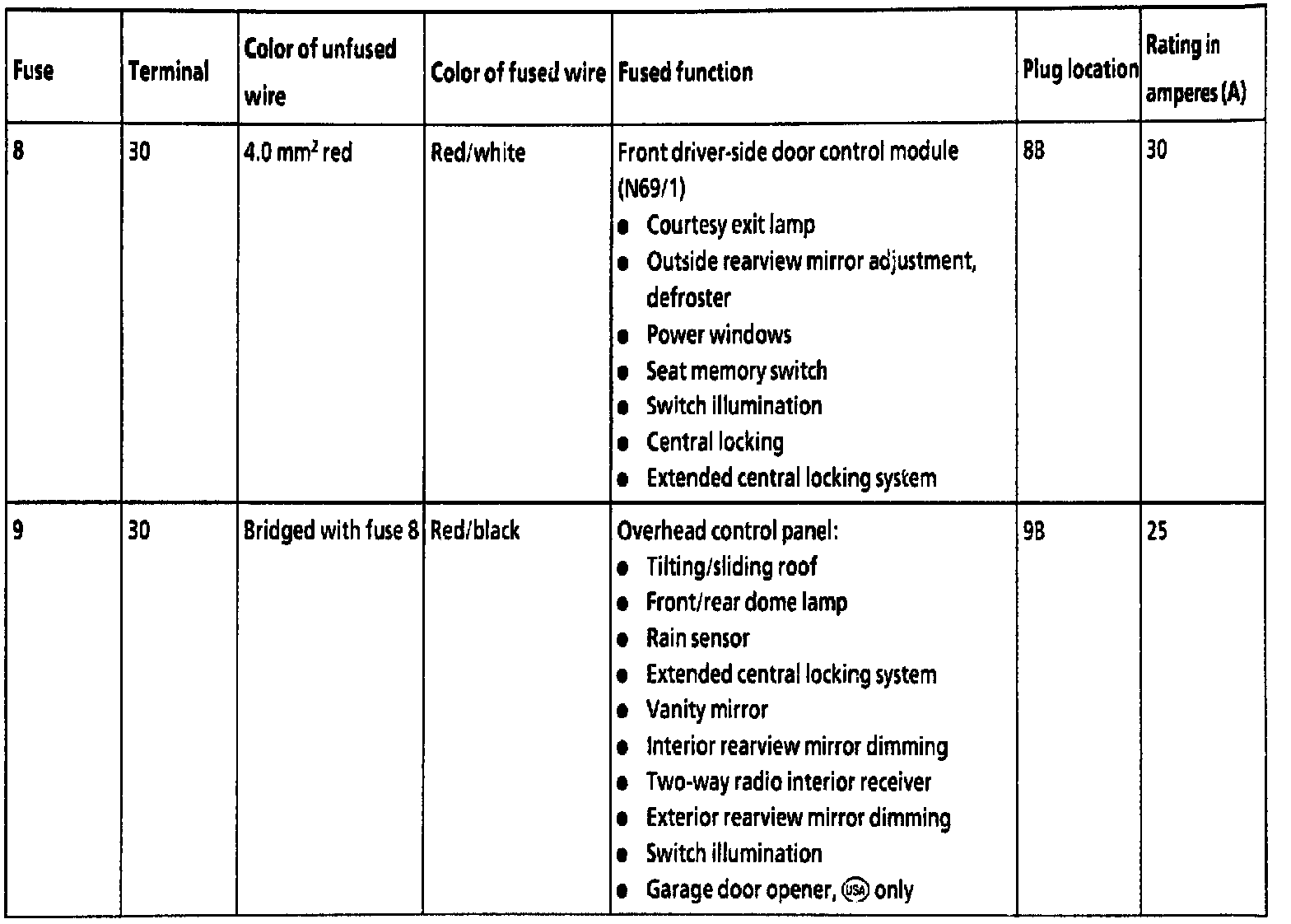

Fuse 8 - 9:

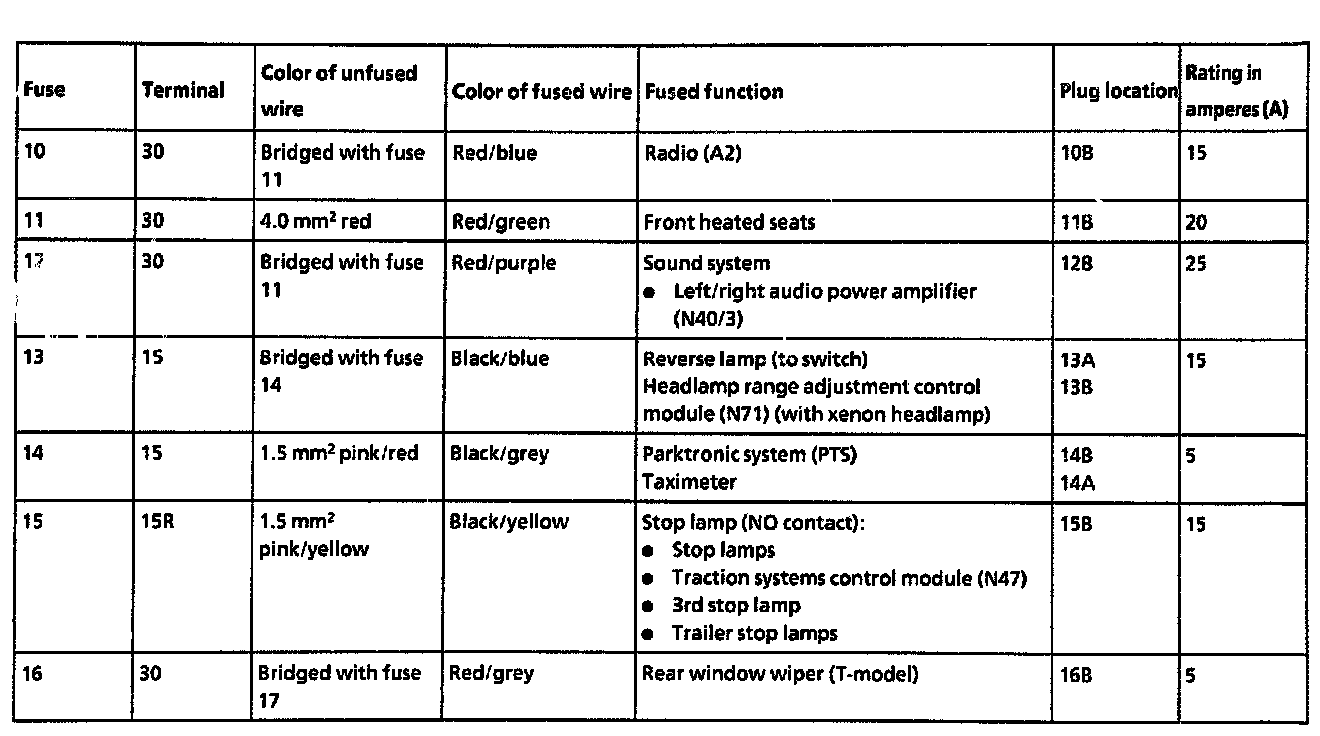

Fuses 10 - 16:

Fuses 17 - 18:

Block C:

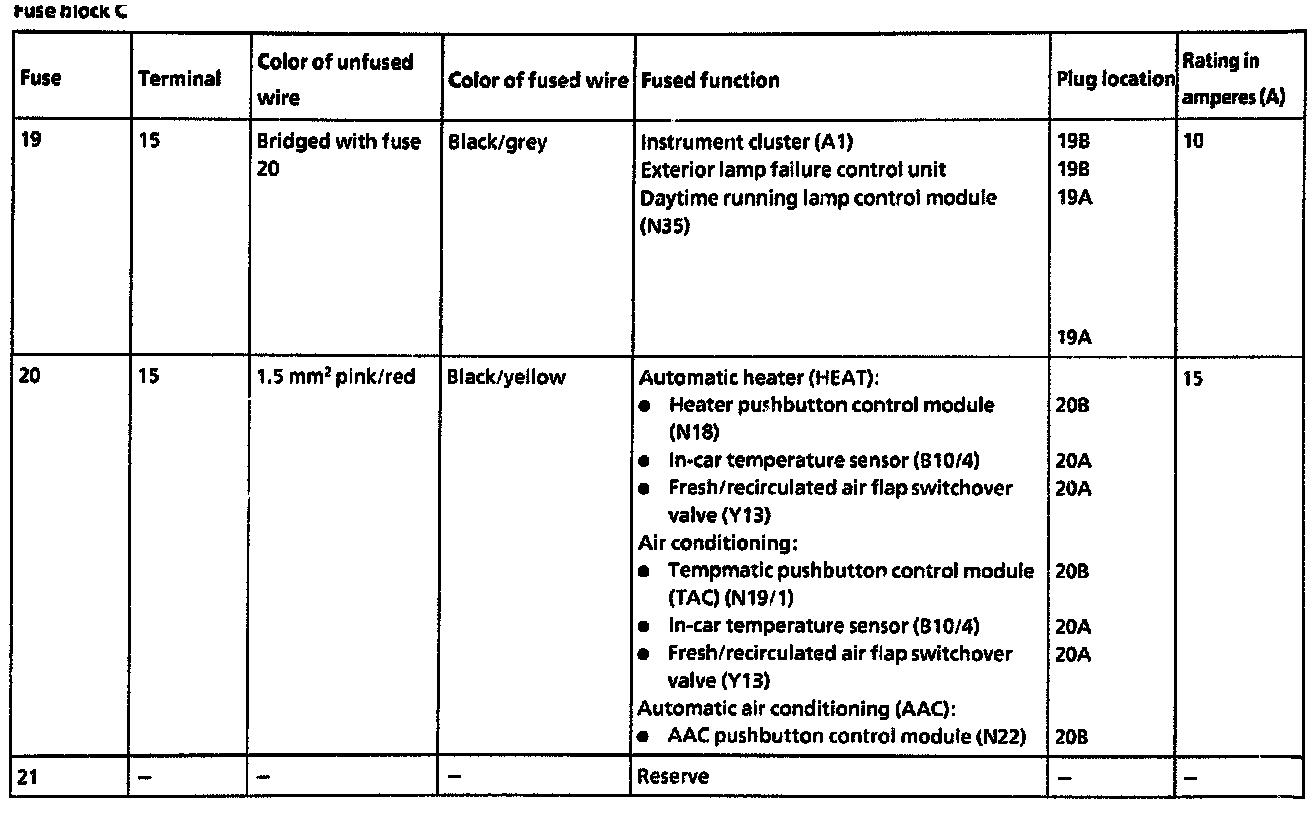

Fuses 19 - 21:

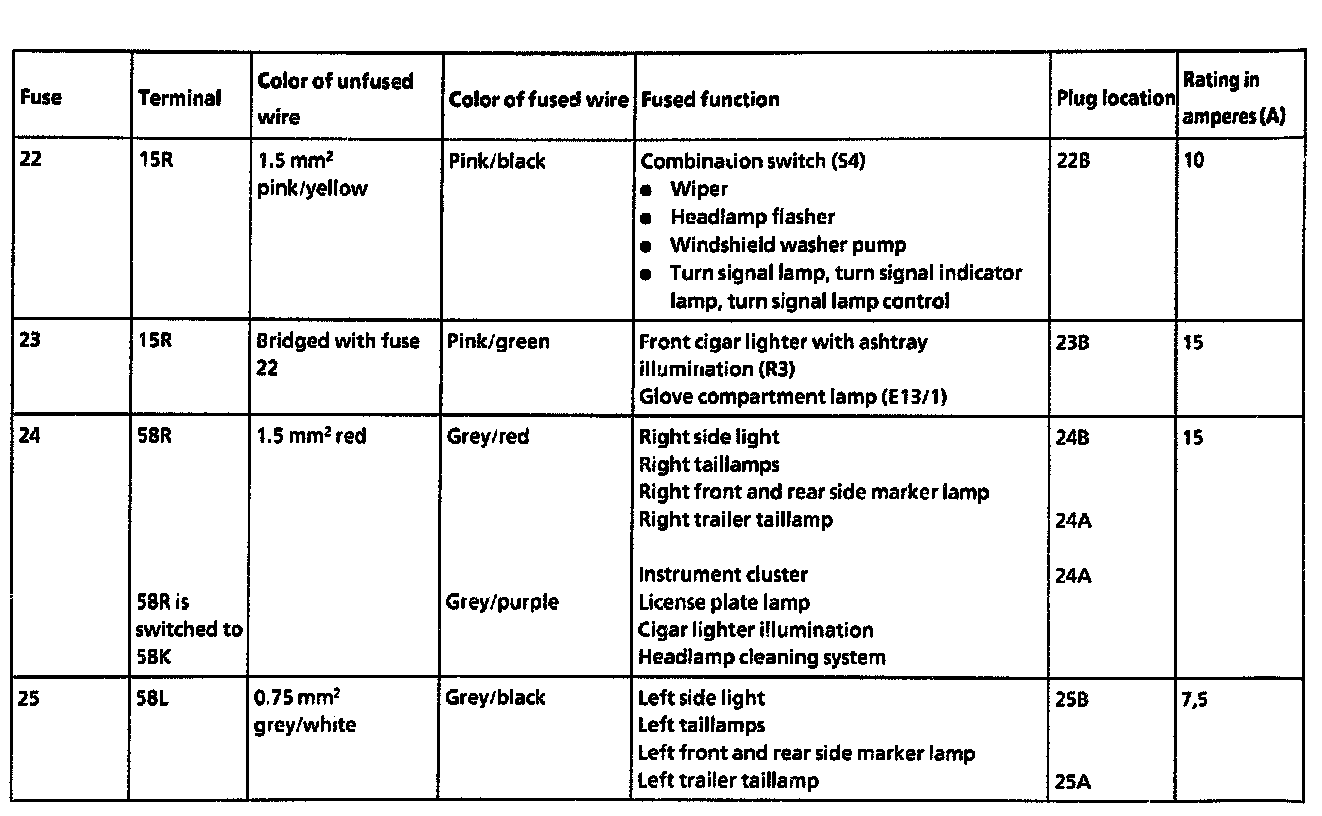

Fuses 22 - 25:

Fuses 26 - 27:

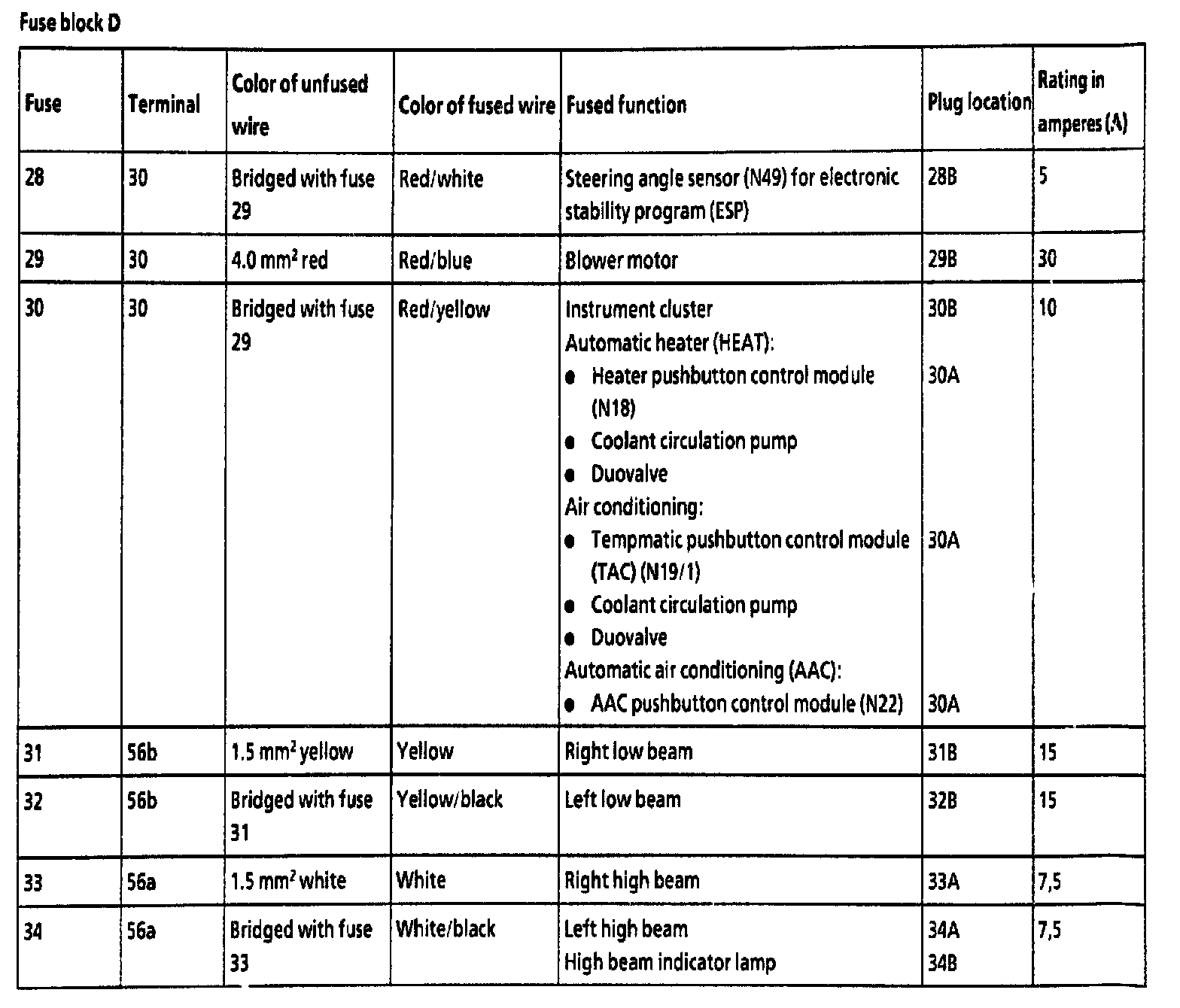

Fuse 28 - 36:

Fuse 37 - 38:

F4 - Fuse Box (In Trunk)

Fuse Box In Trunk (F4):

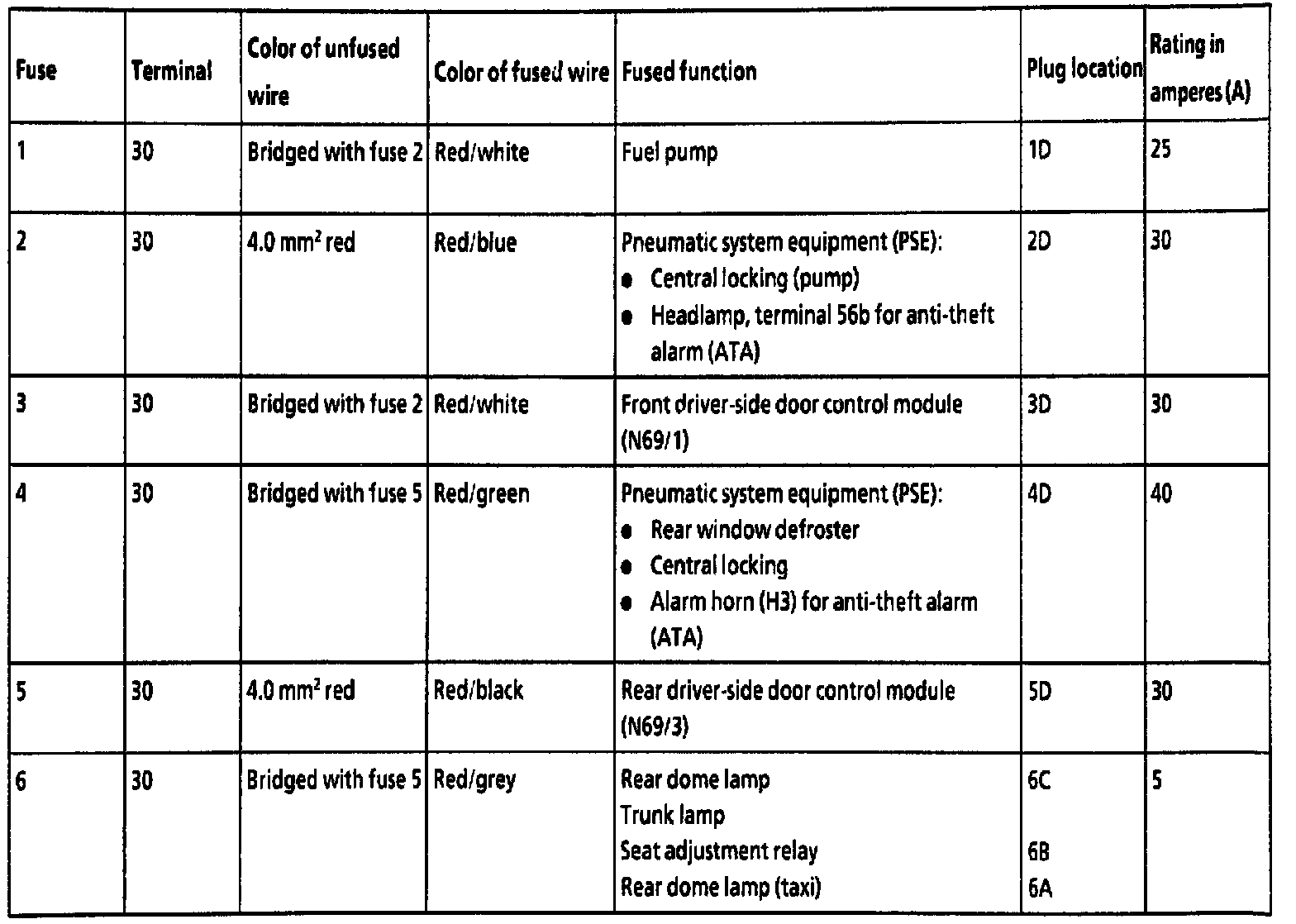

Fuse 1 - 6:

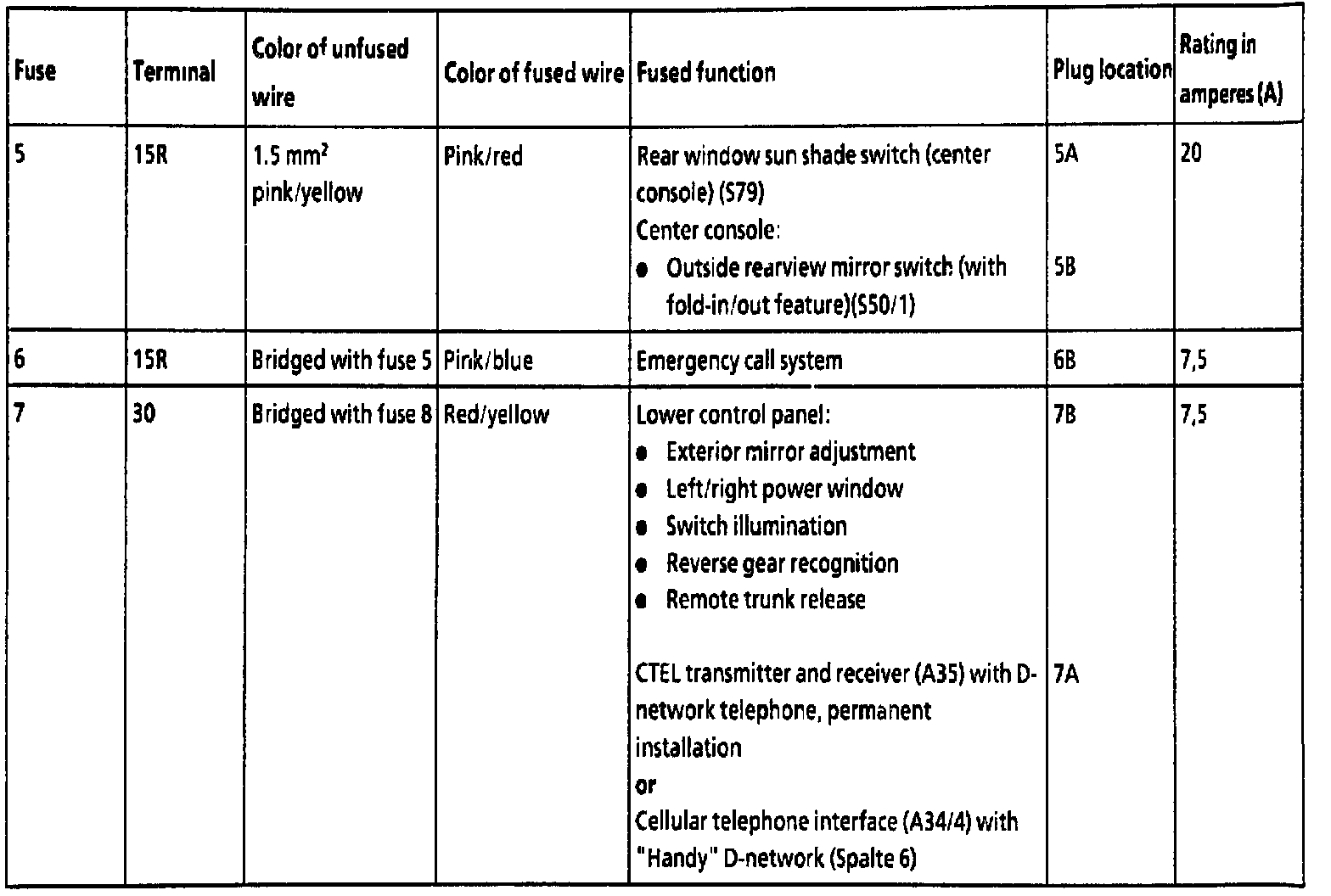

Fuse 7 - 9:

Block B & C:

Fuse 10 - 13:

Fuse 14 - 17:

Fuses on Relay Holder

Fuse 39 - 45:
