Window Handle: Service and Repair



AR72.10-P-1100GV Remove/Install Window Crank
- except CODE (583) Power windows (front doors)
- except CODE (584) Power windows (4 or 6)

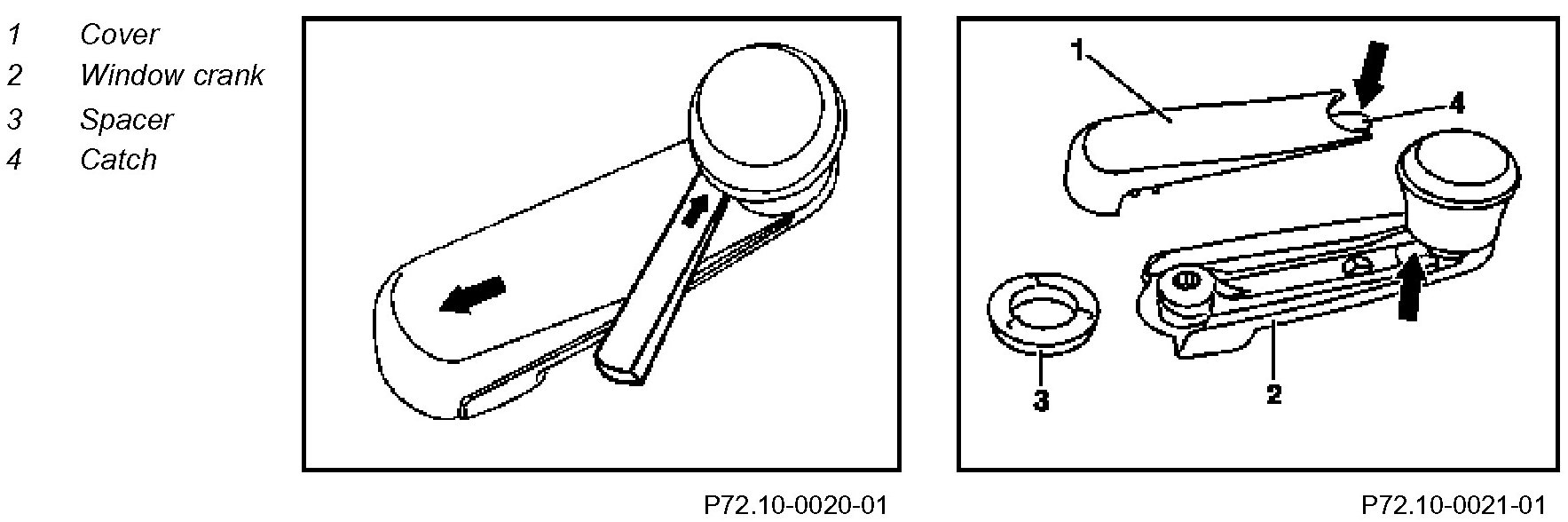

Component Identification:

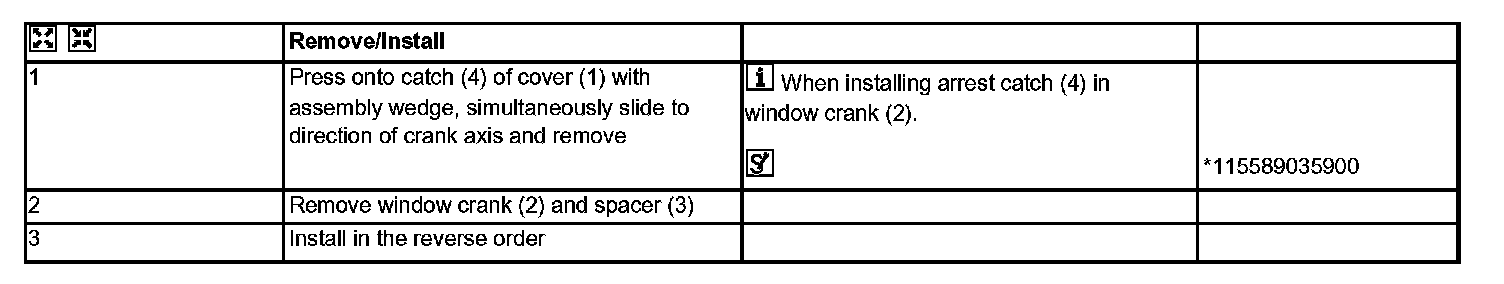

Steps 1 - 3:

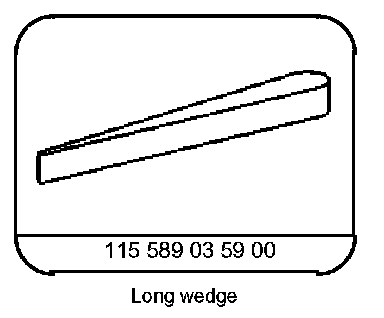

Special Tools:
