Removal and Replacement
AR33.10-P-0100-031 Prop front axle carrier with inspection pit lift or assembly liftComponent Identification:
For passenger car transmission platform (070) and telescoping transmission jack see:
1
Detach jack tube.
2

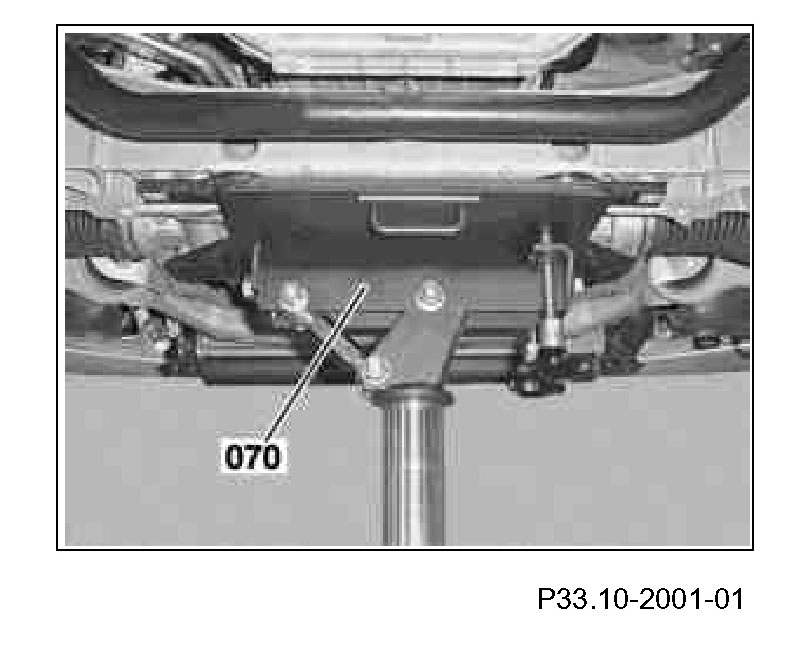

Attach transmission platform (070) and transmission jack to the front axle carrier and support.
Secure to prevent them from falling down and slipping
Shown on model 220 with AIRmatic
