Cruise Control Switch: Service and Repair

AR54.25-P-2803I Remove/Install Cruise Control Switch

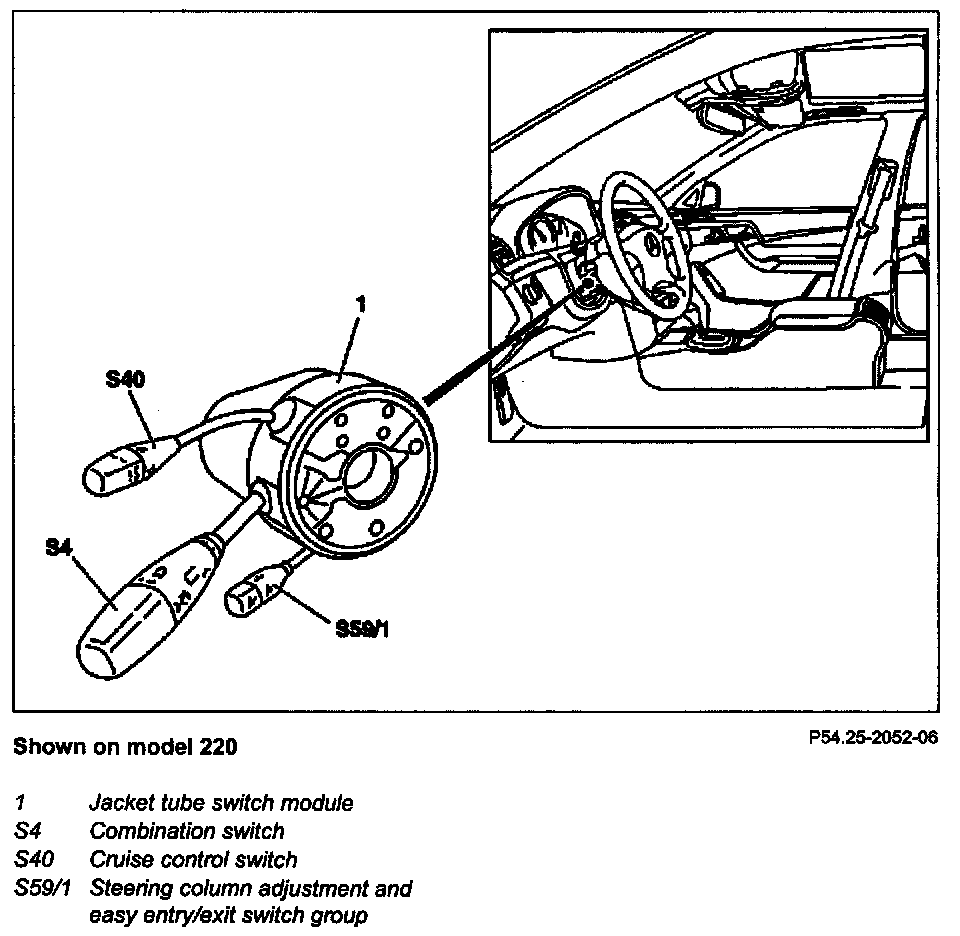

Shown On Model 220:

1 Connect quiescent current retention unit
2 Disconnect ground cable of battery
3 Remove jacket tube switch module (1)

CAUTION: On model 215 with code 813b (voice control system), the voice control system switch and the cruise control switch form a single module and cannot be removed individually.

4 Install in the reverse order
5 Perform function check
