Cruise Control Module: Service and Repair

AR54.21-P-0005I Remove/Install Distronic Control Module
- with CODE (219a) Distronic (DTR)

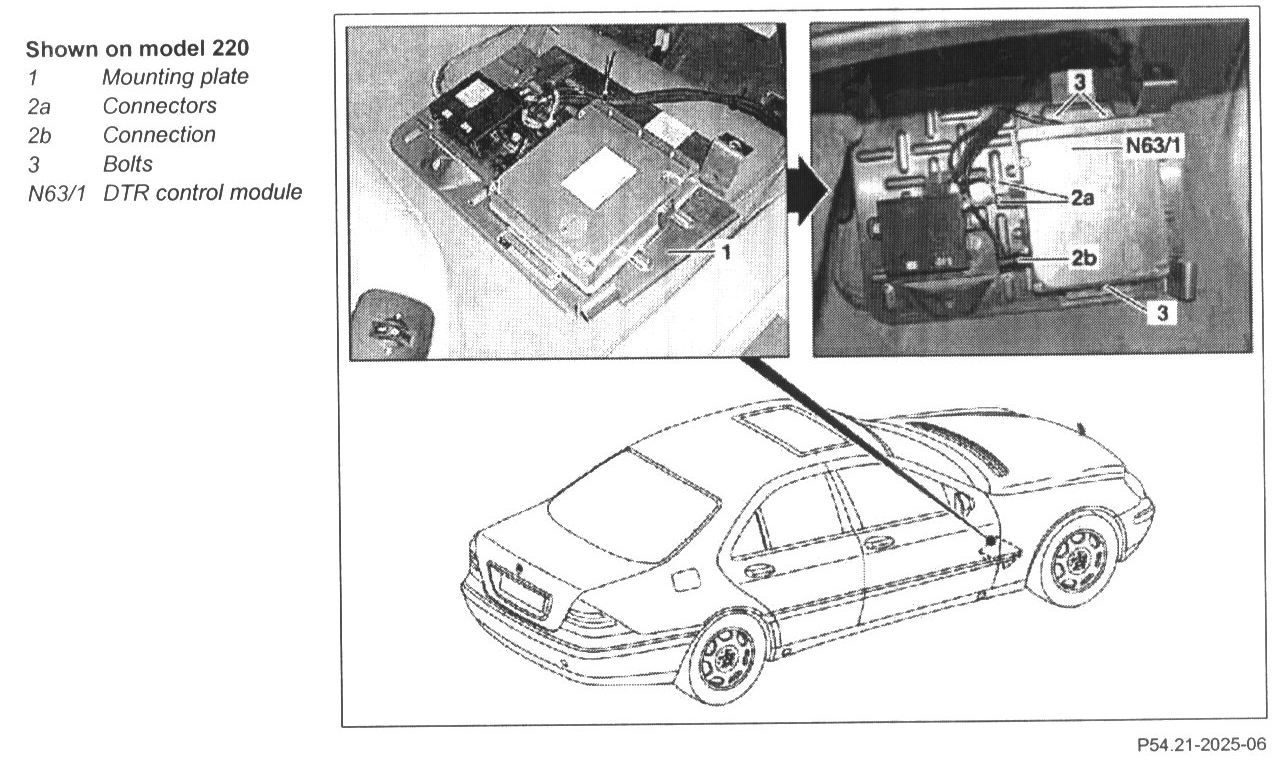

Shown On Model 220:

Removing, installing
1 Connect quiescent current retention unit
2 Disconnect ground cable of battery
3 Fold back floor covering in passenger's footwell and remove polystyrene panel
4 Detach mounting plate (1) in passenger's footwell and fold out into footwell

NOTE: Hold top of mounting plate and fold into footwell

5 Remove connectors (2a) and connection (2b)
6 Unscrew bolts (3) and remove DTR control module (N63/1) from mounting plate
7 Install in the reverse order
8 Perform basic setting with STAR Diagnosis.
