PE82.85-U-2101CD Cockpit Management and Data System (COMMAND) Control Module



PE82.85-U-2101CD Cockpit Management and Data System (COMMAND) Control Module
MODEL 215 up to 08/31/02 with CODE (352) COMAND operating and display system

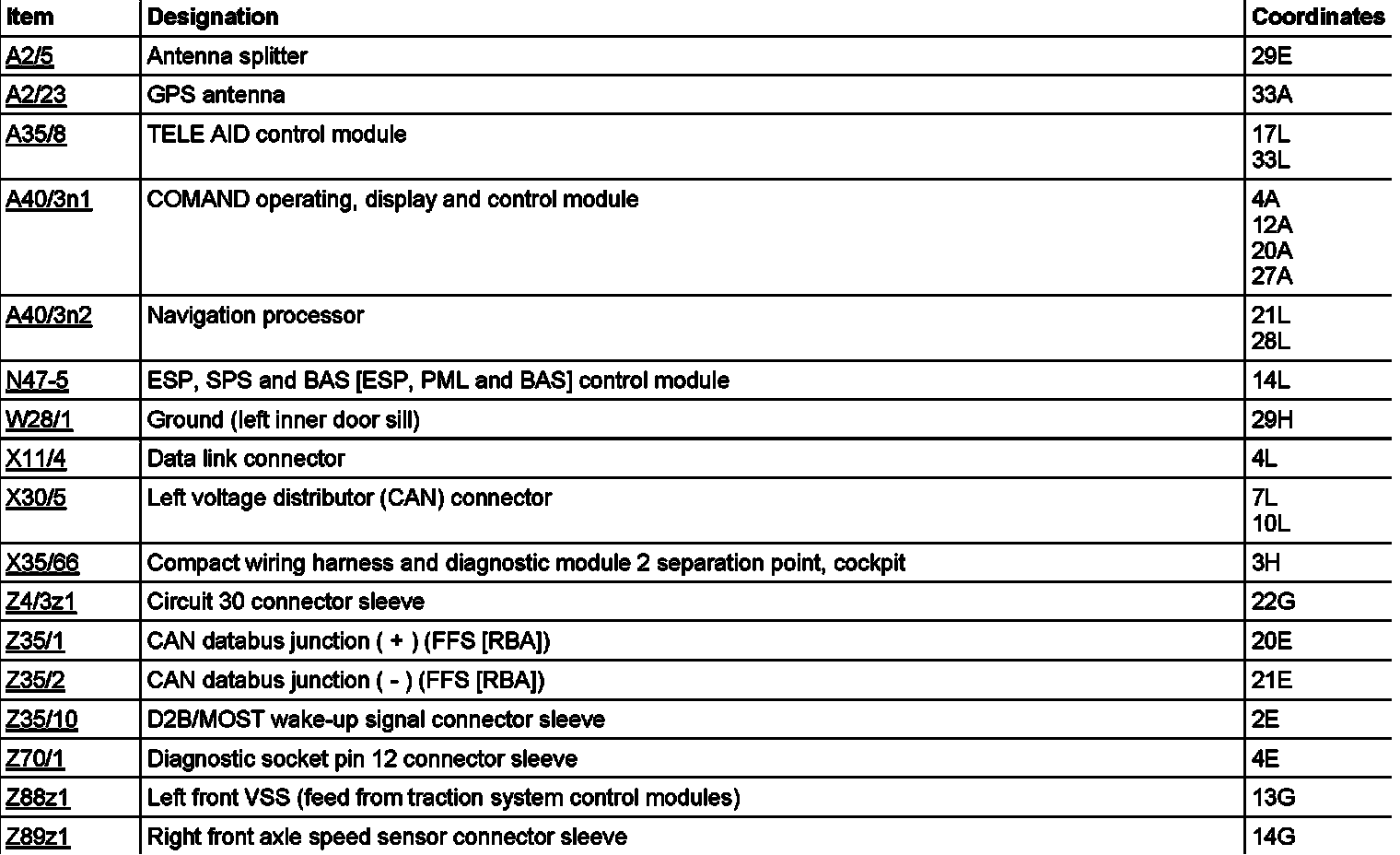

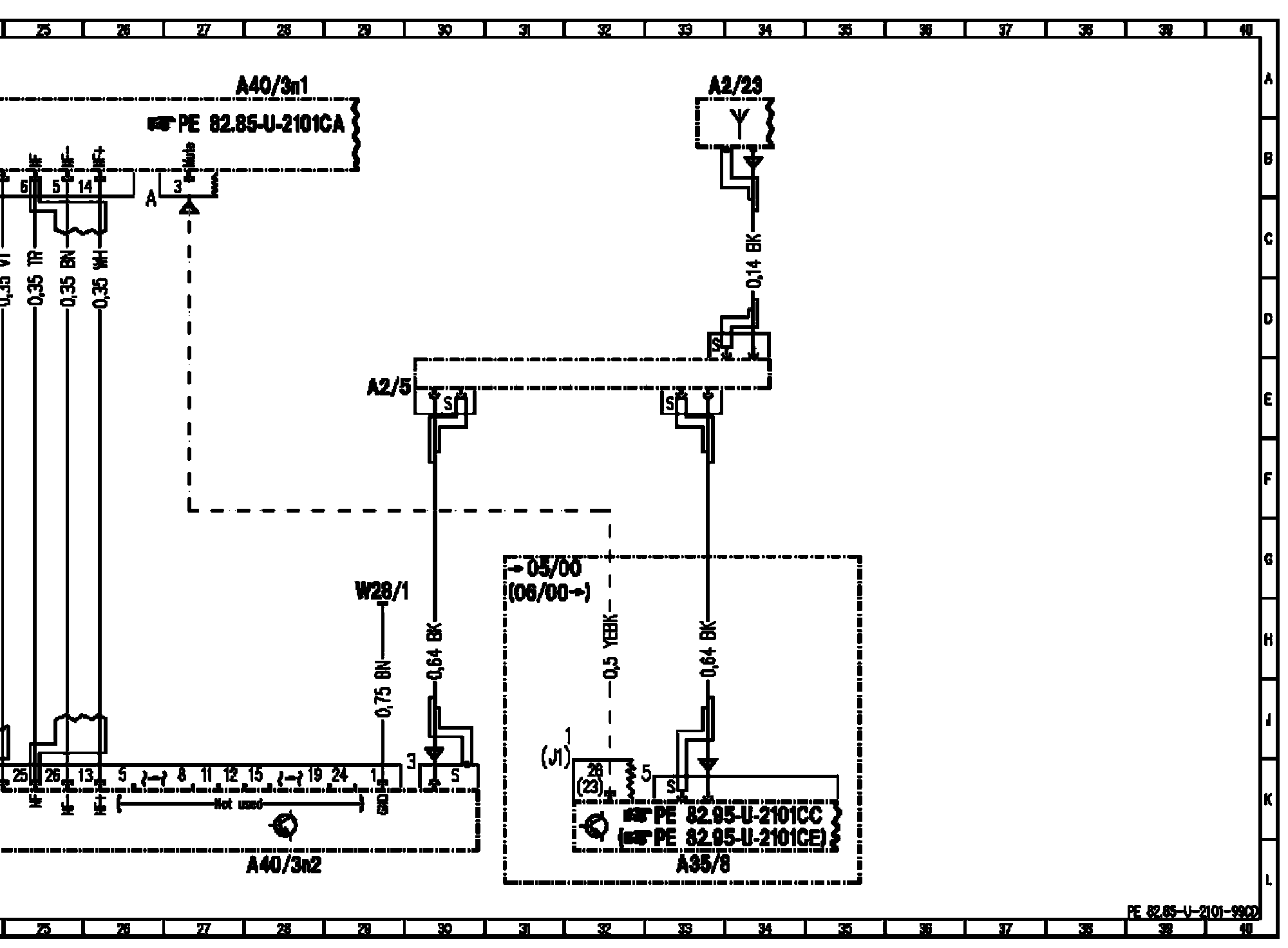

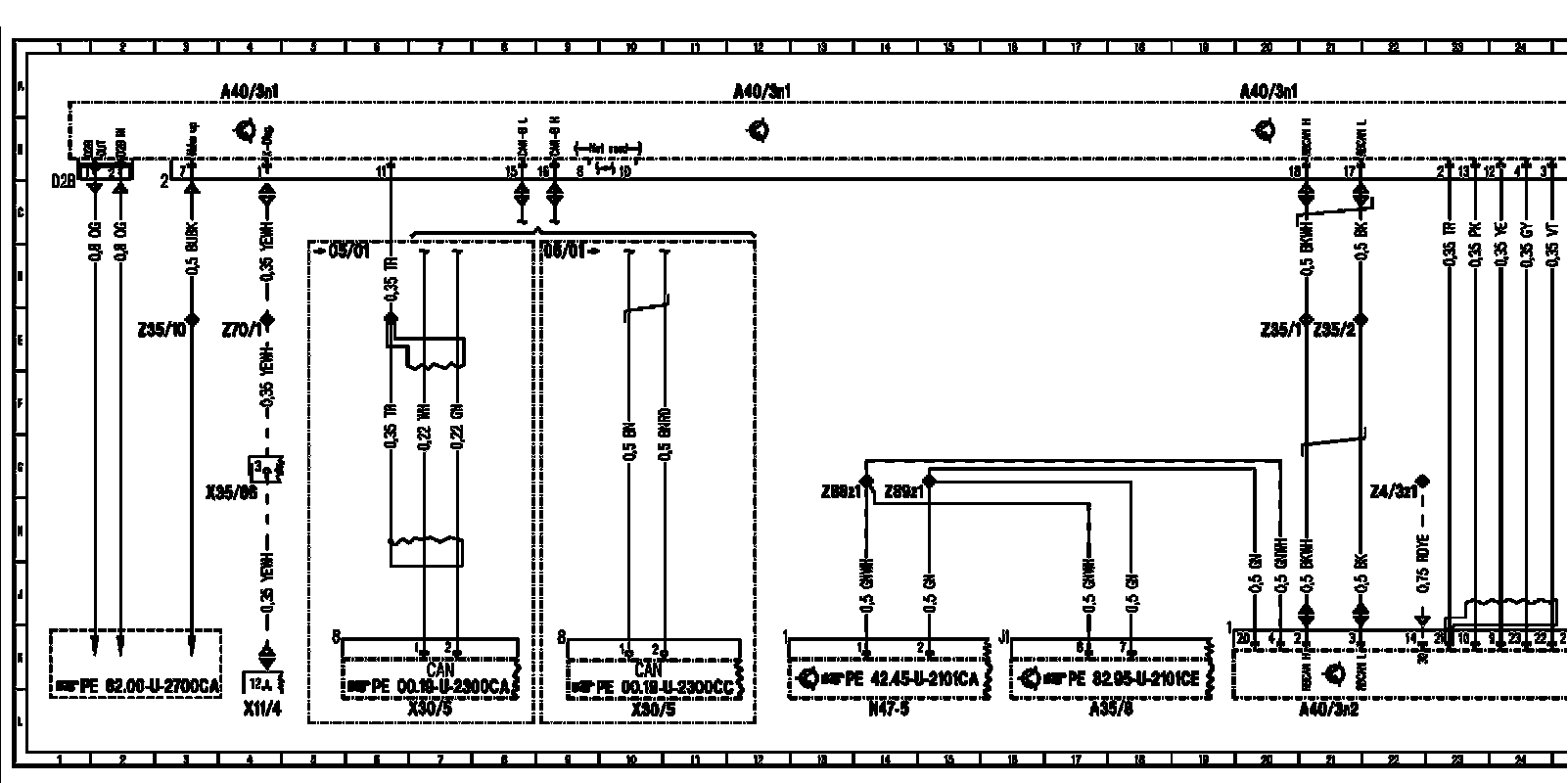

Control module A40/3n1, sheet 2
